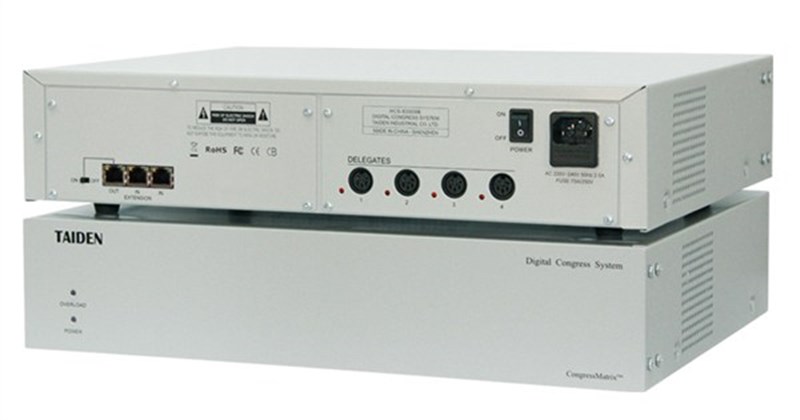

Taiden HCS 8300 ME 8300 Serisi Extension Ünitesi
Taiden marka HCS 8300 ME en uygun fiyat ve yüksek kalitesiyle medumuzikmarket.com'da
TAIDEN HCS-8300 Series Paperless Multi-media Congress System is TAIDEN’S successful conclusion of many years of intense research on conference systems. The system is especially designed for high-end meetings, such as Summits, congresses, parliaments and city councils.
HCS-8300 Series Paperless Multi-media Congress System based on TAIDEN independent intellectual property mMediaCongress platform, never subject to viral infection, hacker-proof, safe and reliable. Paperless Multi-media Congress Terminal - equipped
with a 7"/10" high-resolution LCD touch panel and an integrated 3 million pixel camera, realizes interactive conference control functions (speech, voting, SIS), paperless meetings, video conversation, various video service and conference service, etc.
HCS-8300 Series Paperless Multi-media Congress System based on TAIDEN originated CongressMatrix technology, embedding an n×8 audio matrix processor (n is the number of microphones connected in the system) in the congress main unit, it enables connection to a multi channel independent PA system (up to 8 channels). Each channel can get a user-defined audio signal, the audio signal of a microphone can be routed to any speaker at any ratio. Thus "N-1" function is realized easily: when the microphone in one area is turned on, its audio signal is routed to all areas except to its own. There will be no acoustic feedback (howl) if audio transmission gain is increased.
"Closed Loop - Daisy Chain" connection topology, to connect all congress units and simplifying installation, as well as dual connection backup have been opted for.
Supporting 48 kHz audio sampling rate, all 64 channels feature perfect sound quality with a frequency response of 30 Hz~20 kHz. In addition, HCS-8300 Series Paperless Multi-media Congress System is completely downward compatible to the TAIDEN HCS-4100 Fully Digital Congress System and includes all its functions.
FEATURES
Especially designed for high-end meetings, such as Summits, congresses, conventions, parliaments and city councils
Based on TAIDEN independent intellectual property mMediaCongress platform, never subject to viral infection, hacker-proof, safe and reliable
Paperless Multi-media Congress Terminal - equipped with a 7"/10" high-resolution LCD touch panel and an integrated 3 million pixel camera, realizes interactive conference control functions (speech, voting, SIS), paperless meetings, video conversation, various video service and conference service, etc. (HCS-8307 and HCS-8318 series Paperless Multi-media Congress Terminal)
Based on TAIDEN originated GMC-STREAM Gigabit Multi-media Congress Stream technology, all audio and video signals are transmitted via a CAT6 Gigabit network cable. GMC-STREAM fully guarantees the real-time performance and stability of the important data stream of the meeting, such as audio, voting information, and control information (HCS-8318 series)
Based on ingenious CongressMatrix technology, integrated n×8 audio matrix processor to realize 8 channels group output function
Invisible microphone features with microphone-array technology for HCS-8315 series congress units
Optional environment-friendly nameplate for HCS-8307 and HCS-8318 series Paperless Multi-media Congress Terminal. Fast, environment-friendly and non-glaring nameplate print-out with dedicated nameplate printing software
Increased reliability with "Closed Loop - Daisy Chain" connection topology, supports "PnP"
48 kHz audio sampling, 64 audio channels, each with a 30 Hz-20 kHz frequency response for perfect sound quality
Low power consumption design
Supports CobraNet protocol to connect to peripheral digital devices without losing any sound quality
Equipped with optical fiber interface to combine two widely separated conference rooms to form one unique coherent system
Dual connection backup via optical fiber and CAT5 cable between congress main unit and extension main unit
System power controllable by central control system
Supports combining and separating conference rooms
Connectable to multi channel audio input or output devices for versatile expansion of the system
Connection facility for additional condenser or dynamic microphones, expanding user’s application spectrum
Integrated USB interfaces in the congress main unit for system upgrading and saving system parameters. Convenient for system maintenance
Fully compatible with TAIDEN HCS-4100 Fully Digital Congress System (downward compatible)
