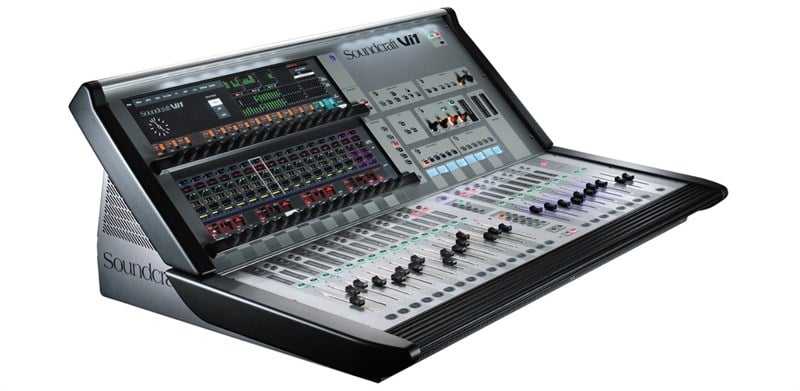

Soundcraft Vi1 32 Channels Vi Series Digital Mixing Console
64 inputs to mix; 32 mono mic inputs; 4 AES inputs and 2 S/PDIF inputs
2 x D21m option slots for additional I/O for mats; 4 dedicated FX returns; 24 Group/Aux/Matrix busses, plus LRC
8 VCA groups and 4 independent mute groups; 4-band fully parametric EQ on every input and output, with HPF on every input
27 full 30-band BSS Audio graphic equalisers; 4 independent stereo Lexicon FX processors; optional redundant PSU
Compressor and gate on every input, compressor on every output; Delay adjustable on every input and output
Frequency Response - Local Mic input to Line output +0/-1dB, 20Hz-20kHz
AES/EBU In to AES/EBU Out +0/-0.2dB, 20Hz-20kHz
THD+Noise 22Hz-22kHz
THD & Noise - Local Mic In (min gain) to Local Line Out <0.003% @ 1kHz
THD & Noise - Local Mic In (max gain) to Local Line Out <0.020% @ 1kHz
Mic Input E.I.N <-125dBu (150Ω source), 22Hz-22kHz bandwidth, unweighted
Residual Noise -95dBu - Local line output; no inputs routed, Mix fader @0dB
CMRR 80dB @ 1kHz Local Mic Input
Sampling Frequency 48kHz
Latency - Local Mic Input to Local Line output < 2ms @48kHz
AES/EBU Input Sample Rate 32–108kHz (with SRC enabled)
DSP Resolution 40-bit floating point
Internal Clock Accuracy < +/- 50ppm
Internal Clock Jitter < +/- 5ns
External Sync BNC Wordclock
Input & Output Levels - Mic Inputs +23dBu max
Input & Output Levels - Line Outputs +22dBu max
Input & Output Levels - Nominal Operating Level 0dBu (-18dBFS)
Input & Output Impedances - Mic Inputs 2k7Ω
Input & Output Impedances - All other analogue Inputs >10kΩ
Input & Output Impedances - Line Outputs <75Ω
Input & Output Impedances - AES/EBU Outputs 110Ω
Oscillator 20Hz to 20kHz/Pink/White Noise, variable level
Channel HP filter 20Hz-600Hz, 18dB per octave
Channel LP filter 1kHz-20kHz, 18dB per octave
EQ (Inputs and Bus Outputs) - HF 20Hz-20kHz, +/-18dB, Q= 0.3-8.7 or shelving
EQ (Inputs and Bus Outputs) - Hi-Mid 20Hz-20kHz, +/-18dB, Q=0.3-8.7
EQ (Inputs and Bus Outputs) - Lo-Mid 20Hz-20kHz, +/-18dB, Q=0.3-8.7
EQ (Inputs and Bus Outputs) - LF 20Hz-20kHz, +/-18dB, Q= 0.3-8.7 or shelving
Metering Internal 11-segment LED bargraphs plus 4-segment gain reduction meters for all inputs and Outputs. Peak hold variable from 0-2s.
Mains Voltage Operating Range 90-264V, 47-63Hz, autoranging
Mains Power Consumption Control Surface - 100W
Internal Mass Storage 4GB Compact Flash Card
Operating Temperature 0°C – 45°C (32°F – 113°F)
Relative Humidity 0% – 90%, non-condensing Ta=40°C (104°F)
Storage Temperature -20°C – 60°C (-4°F – 140°F)
Height 394mm (15.5")
Width 1034mm (40.7")
Depth 711mm (28.0")
Weight 37kg* (82lb)
