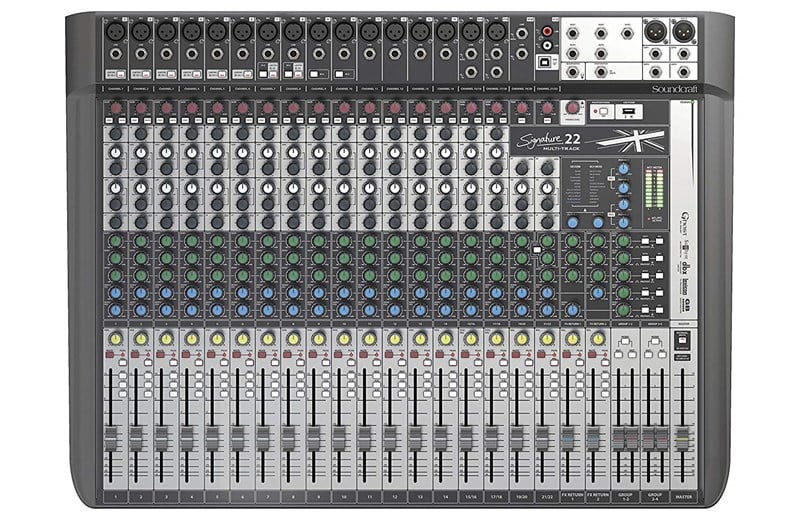

Soundcraft Signature 22MTK Analog 22-Channel Multi-track Mixer with Onboard Lexicon Effects
High-Performance 22-input small format analogue mixer with onboard effects and multi-track USB recording and playback
24-in/22-out ultra-low latency USB playback and recording interface*
Iconic Soundcraft® Ghost mic preamps with ultra-low noise performance
Renowned Soundcraft® Sapphyre British EQ with sweepable mid-bands per channel
Lexicon® Effects Engine featuring award-winning Reverbs, Delays, Choruses and Modulations
dbx® Limiters (High-ratio Compressors) on input channels
Switchable Hi-Z inputs for guitars, basses and other instruments
Hi-Pass Filters (low-cut) and 48V Phantom Power on all mic channels
Comprehensive Soundcraft® GB series audio routing with Auxes (flexible pre/post switching) and subgroups with switching and dedicated outputs
Smooth premium-quality 100mm faders
Robust metal construction for tour-grade build quality and reliability
Internal universal power supply
* USB Interface Compatibility:
PC: Supports Windows 7, Windows 8 and Windows 10.
Mac: Supports Mac OS 10.7.x Lion through 10.11.x El Capitan
Type: Analog
Channels: 22
Computer Connectivity: USB (24 x 22)
Faders: 25 x 100mm Throw
Inputs - Mic Preamps: 16 x XLR
Phantom Power: 22
Inputs - Line: 20 x TRS
Inputs - Other: 1 x Stereo (RCA)
Outputs - Main: 2 x XLR
Outputs - Other: 5 x TRS (Aux), 4 x TRS (Subgroup), 1 x TRS (Footswitch)
Headphones: 1 x 1/4"
Aux Sends: 5 x Pre/Post
Busses/Groups: 3 x Aux Busses, 2 x Aux/FX Bus, 4 x Mono, 2 x Stereo Subgroups
USB: 1 x Type A, 1 x Type B
EQ Bands: 4-band British
Effects: Yes
Height: 4.3"
Width: 26"
Depth: 19.3"
Weight: 25.1 lbs.
