Frequency: 8 frequency banks, each with up to 10 factory-preset channels
Frequency range
•A: 548-572 MHz, GB: 606-630 MHz
•B: 614-638 MHz
•C: 766-790 MHz
•D: 794-806 MHz
•E: 821-832 MHz, 863-865 MHz
•K: 925-937.5 MHz
Sensitivity: < 3 μV at 52 dB(A)rms S/N
Squelch: adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
Input sensitivity: 1.5 mV / Pa
Audio adjustment range: 40 dB, adjustable in 5-dB steps
Line / Mic level: 20 dB, switchable
Temperature Range: operation: 0°C to +40°C, storage: –20°C to +70°C
Receiver Principle: double superheterodyne
Diversity principle: Antenna switching diversity via internal antennas
SPL for peak deviation: 150 dB
|

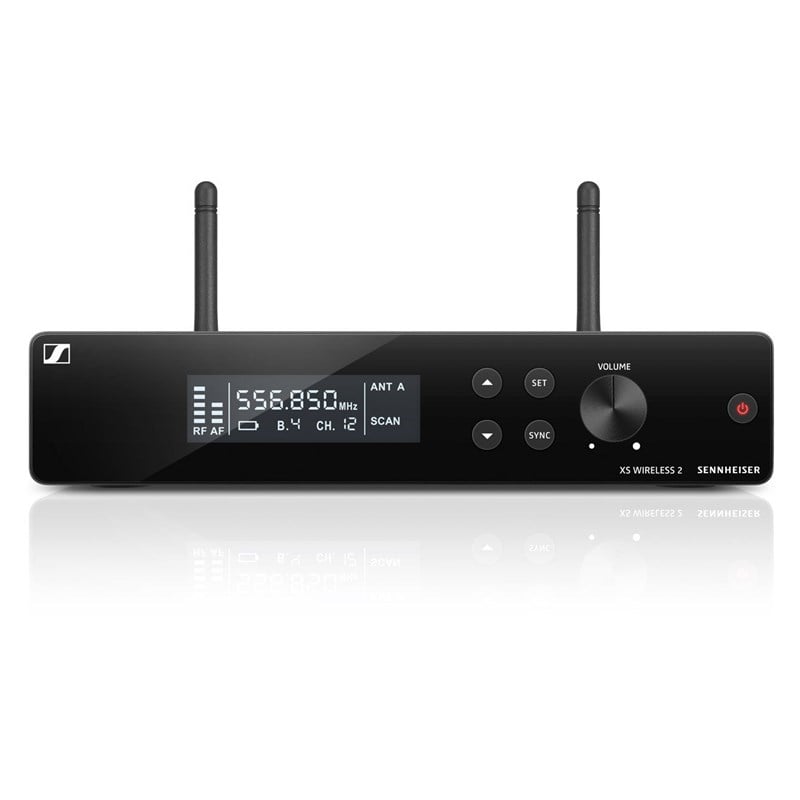

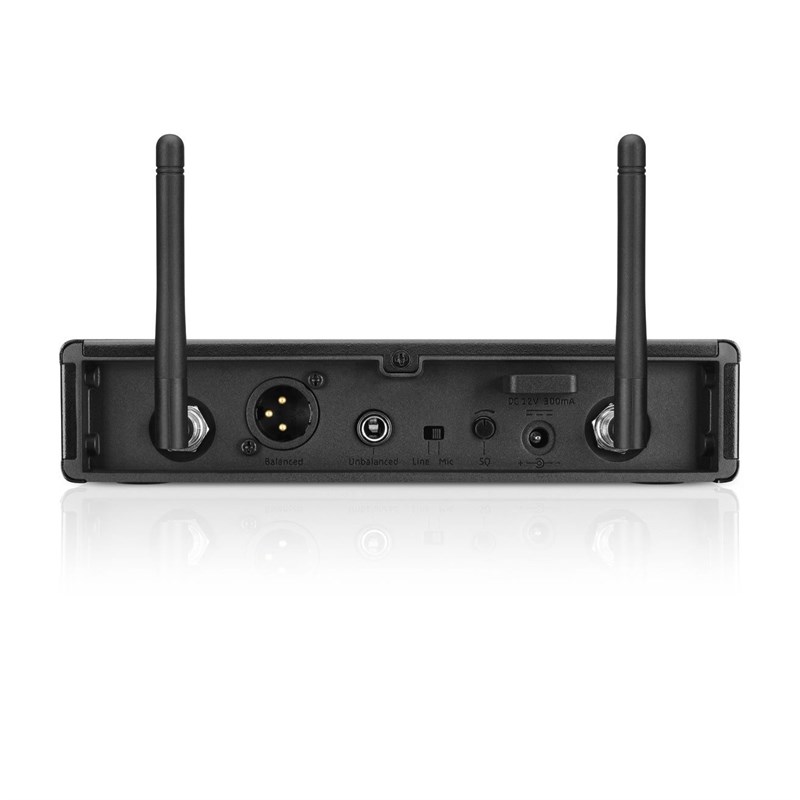

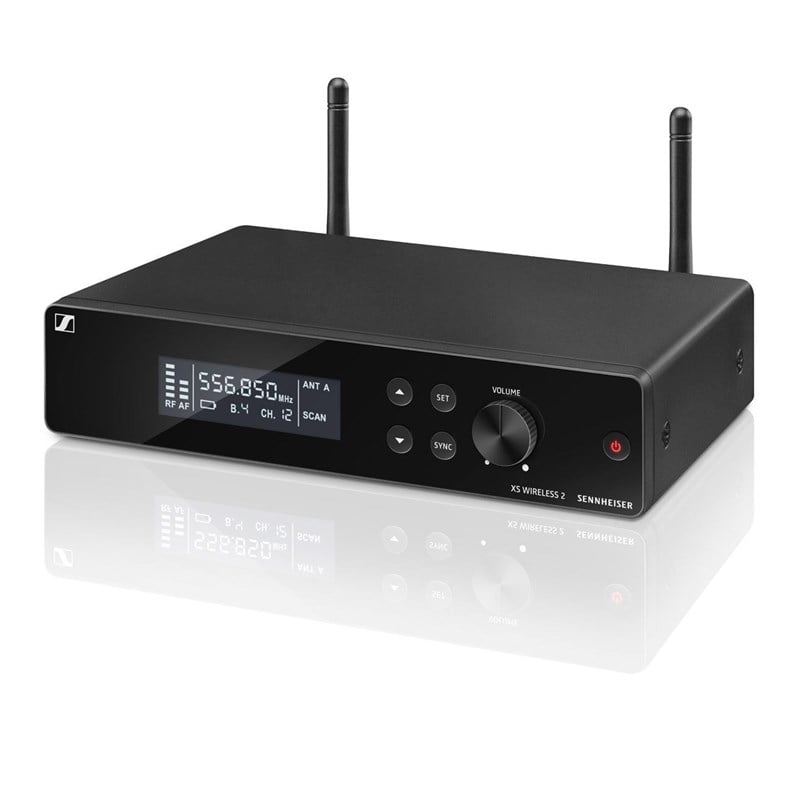

Receivers
Dimensions: approx. 200 x 42 x 127 mm
Weight: approx. 680g
Power supply: 12 V DC nom. / 300 mA
AF frequency response: 50 to 16,000 Hz (–3 dB)

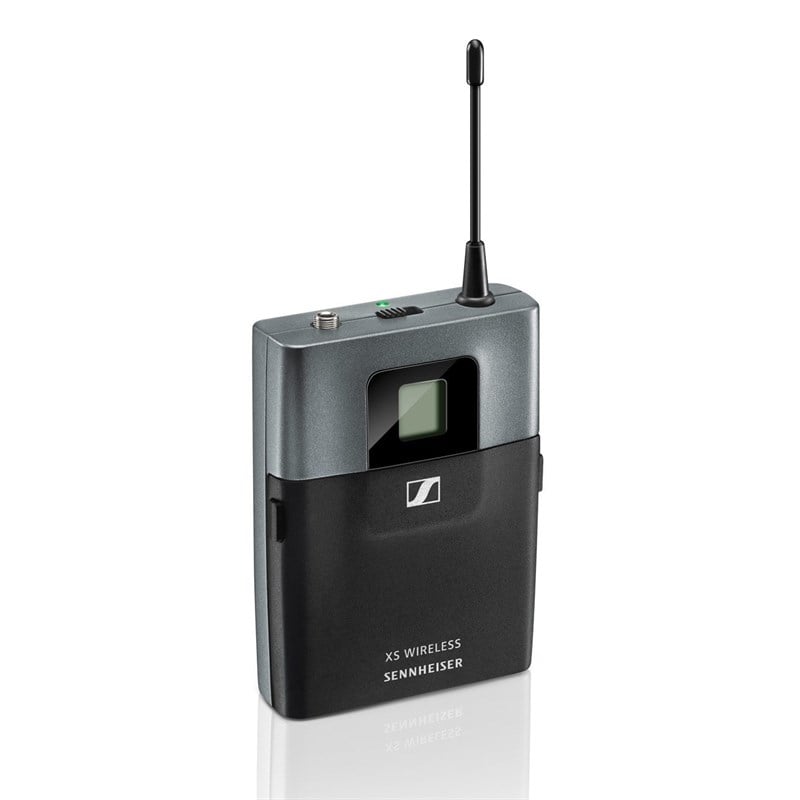

Transmitter
Dimensions: 71 x 96 x 28 mm
Weight: approx. 95g
Power supply: 2 AA size batteries, 1.5 V
Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps
|
