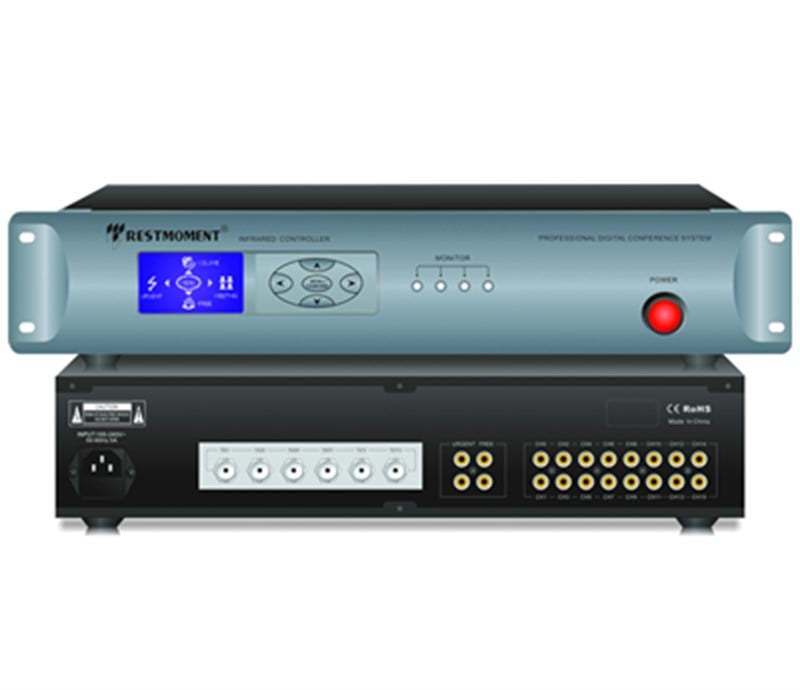

Restmoment RX-M1032XP 32 Kanal Simültane Tercüme Verici Merkez Ünitesi
Restmoment RX-M1032XP 32 Kanal Simültane Tercüme Verici Merkez Ünitesi

Restmoment RX-M1032XP 32 Kanal Simültane Tercüme Verici Merkez Ünitesi

Marka : Restmoment
İndirim Oranı : %36 İndirim
Fiyat : ₺695.197,85(KDV Dahil)
İndirimli : ₺443.018,23(KDV Dahil)
₺83.257,89 'den başlayan taksitlerle

32 Dil Kapasiteli Dijital Infrared Sistem Verici Merkez Ünitesi



RRestmoment RX-M1032XP 32Kanal Simültane Tercüme Verici Merkez Ünitesi


Digital 32-channel infrared transmitter is the core of the host Restmoment digital infrared language distribution system, which has a digital or analog audio input interface, support for simultaneous input 32 unbalanced audio signal, and infrared simultaneous interpretation system meets the IEC61603-7 standard compatible, it can be used interchangeably. Five-way navigation via the front panel keyboard, with 2.8 inches LCD display, can be achieved for all infrared conferencing capabilities for centralized control.

2.8 inç LCD Ekran, 32 dinleme kanalı, 2-8MHz, IEC 61603-7 ve IEC 60914 standartına uygun, DQPSK modülasyon tekniğini, PnP fonksiyonu, Yangın alarm arayüzü, Her giriş kanalı için hassasiyet ve seviye ayarı, Dijital kilitleme özelliği (kötü seslere karşı), Serbest modda kanallarda müzik çalınabilir



Adopt Restmoment full digital conference technology, compliant to IEC61603-7 and IEC 60914 international standard
2.8 inch LCD and panel navigation keyboard, could setup menu
Adopt 2-8MHz, Infrared receiver will not be disturbed by high frequency driving light source
Compatible with the infrared simultaneous interpretation system which is compliant to IEC61603-7
32CH audio channels
Adopt DQPSK modulation technique. It has high spectrum efficiency, good spectrum characteristic, strong anti fading and the available non coherent adjustment.
System has combination function. 2 PCS x N channel infrared controllers can be combined to a 2N channel system.
Cable transmission time delay compensation function to make sure the signals’ synchronous superosition.
Support “PnP” function to make sure system’s safety and stability.
Can adjust input sensitivity of each channel and adjust input level accurately.
New digital lock function, totally stop outside disturbing and wiretapping.
Perfect sound quality. Frequency response is 30Hz –20KHz. SNR is over 90Db.
Support paralleling or series radiators simultaneously.
6 channels high frequency output connectors (BNC), which is used to connect infrared radiator.
Many work modes, suitable for different situation.
Conference mode: receivers could receive independence channel signal.
Emergency mode: all receivers could receive exterior alarm signal.
Free mode: all receivers could receive exterior music signal.
Has fire alarm interface. Once there is a signal from fire control center, system will stop the session immediately and play presetted alarm signal to infrared receivers automatically.
Play music to all channels in Free mode between sessions.
Suitable for small/ middle/huge international conference halls or outer door hall.
Adopt aluminum alloy body which has ROHS certification.
2U international standard design, could be put in 19 inch rack cabinet.
Built-in international standard power and voltage regulation system.

Channel: 32 CH
Modulation mode: DQPSK compliant to IEC61603-7
Carrier frequency: 2-8MHz
Audio processing: IR-DSP
Frequency respond: 30-20000Hz
Distortion: <0.2%
SNR: >90 dB
Working Voltage: AC110/220V
Input lever: 2V p-p
Output impedance: 75 Ohm
Conference audio input: RCA Socket ×4
Emergency Audio Input: RCA Socket×2
Free Audio Input: RCA Socket ×2
Digital signal output: BNC Socket ×6
LCD Display: 2.8 inch display
Display menu: English
Color: Dark Grey
Dimension: 432L×90H×350W mm
Weight: 8kg
Installation: 19 inch rack cabinet.
