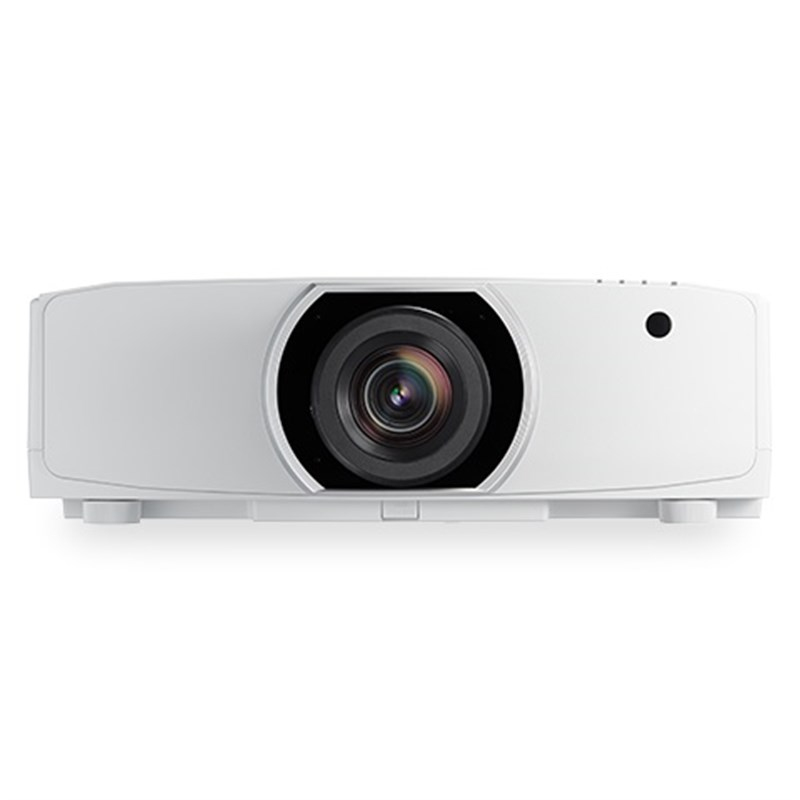

NEC PA853W 8500 Lümen 1280x800 HDMI LCD Kurulum Projeksiyon
Display
Aspect Ratio 16x10
Native Resolution WXGA 1280x800
Maximum Resolution 4K 4096 x 2160
Contrast Ratio (typical) 10,000:1 with auto iris
Synchronization Range
Horizontal (Analog/Digital) Analog: 15-100kHz, Digital: 15-153kHz
Vertical Analog: 48-120Hz, Digital: 24-120Hz
Signal Compatibility/Connectivity
Supported Video Standards NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
SD/HD Video Signal Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K
PC Signal Compatibility VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA, WQXGA
Macintosh Signal Compatibility Yes
Sync Compatibility Separate Sync / Composite Sync / Sync on G
External Control RS-232, IR, HDBaseT, DDC/CI, USB
Power Consumption (typical)
On 566W / 390W / 0.7W / 0.3W
Input Current 6.2-3.1A
Power Requirements 100-240V AC, 50/60 Hz
Physical Specifications
Dimensions (WxHxD)
Product:19.8 x 16.2 x 6.6 in. / 503 x 411 x 168mm
Weight - Net Weight:22.5 lbs. / 10.2 kg
Environmental Conditions
Operating Temperature 41-104°F / 5-40°C
Storage -14-122°F / -10-50°C
Optical
Display Technology 0.76" LCD w/ MLA
Light Output(Lumens) 8500 normal
Lamp Type 420W AC
Lamp Life (up to) 3000 hours normal / 5000 hours eco
Screen Size (diagonal) 40 to 500 in. / 1.02 to 12.7m
Projection Distance 2.5 to 68.5 ft. / 0.74 to 20.9m
Projector Angle 10.3 to 10.8° tele / 13.7 to 14.5° wide
Lens - Zoom:Variable Focus:Power F number, fnumber:Variable
Keystone Correction +/- 40° horizontal, +/- 30° vertical
Mechanical
Installation Orientation Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
Fan Noise 39 dB normal / 33 dB eco
