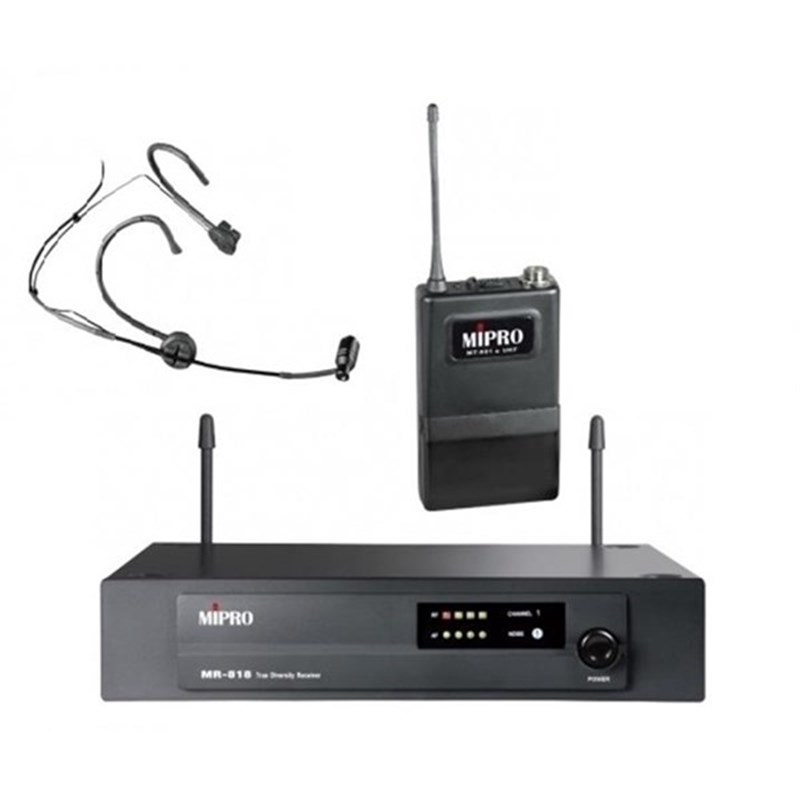

Mipro MR-818 Headset Uhf Band Kablosuz Mikrofon
MR-818 Single-Channel True Diversity Receiver
EIA standard 1/2U metal rack-mountable receiver.
PLL synthesized fixed frequency circuit for stability and effortless frequency setup.
Advanced true diversity technology ensures optimal reception range and eliminates signal drop-outs.
RF and audio level indicators.
Output level is accurately pre-adjusted to equal the microphone capsule sensitivity and ensures optimal performance.
Adjustable ‘SQ’ for increasing or decreasing sensitivity level for increased reception range or interference management.
Industry’s only RF interference warning indicator for SQ adjustment.
Up to 24 compatible channels can be used simultaneously at the same venue (country dependent).
New MH-80 handheld transmitter features sturdy housing, high-efficiency transmitting circuit, and brilliant sound quality.
Quick to install and easy to operate with high reliability and affordability.
Ideal for entry-level stage and PA applications.
| Frequency Range |
UHF 480 ~ 934 MHz (country dependent) |
| Receiving Mode |
True Diversity |
| Receiving Antenna |
Rear Panel. Detachable. |
| Oscillation Mode |
PLL Synthesized |
| Stability |
≦ ±0.005% (-10 ~+60℃) |
| Sensitivity |
8 dB μ V at S/N > 80 dB |
| S/N Ratio |
> 106 dB (A) |
| T.H.D. |
< 0.5% @ 1 kHz |
| Frequency Response |
50 Hz ~ 18 kHz |
| Squelch |
“PiloTone & NoiseLock” dual-squelch circuit |
| Max. Output Level |
2-level Switch: Line & Mic |
| Power Supply |
12 ~ 15V DC, 1A |
| Dimensions (W × H × D) |
210 × 44 × 180 mm / 8.3 x 1.7 x 7.1 " |
| Weight |
Approx. 0.9 kg / 2.0 lbs |
MT-801 Bodypack Transmitter
Lightweight, compact size with sturdy plastic housing.
Fixed frequency with PLL synthesized technology ensures no need for frequency setup.
High dynamic range modulation circuit sustains high SPL without distortion.
Mini-XLR input with secure screw lock connector for lavaliere / headworn mics and guitar.
High-efficiency circuitry design provides more than 17 hours of operation from 2 AA batteries (depending on the battery quality
| Housing |
Rugged plastic housing |
|
|
|
|
|
| Frequency Range |
UHF 480 ~ 934 MHz (country dependent) |
|
|
|
|
|
| Oscillation Mode |
PLL Synthesized fixed-frequency |
|
|
|
|
|
| RF Output Power |
10 ~ 30 mW (country dependent) |
|
|
|
|
|
| Spurious Emissions |
< -55 dBc |
|
|
|
|
|
| Deviation |
< ±40 kHz |
|
|
|
|
|
| Display |
LED indicator for power on/off and low battery status. |
|
|
|
| Max. Input Level |
0 dBV |
|
|
|
|
|
| Mute |
Manual |
|
|
|
|
|
| Battery Type |
2 × AA alkaline |
|
|
|
|
|
| Operating Time |
Min. 17 hours |
|
|
|
|
|
| Mic Capsule Module |
Lavalier, Headworn mic |
|
|
|
|
|
| Dimensions (W × H × D) |
63 × 105 × 21 mm / 2.5 × 4.1 × 0.8 " |
|
|
|
|
|
| Net Weight |
Approx. 75 g / 2.6 oz |
|
|
|
|
|
| Note |
Refer to actual product in the event of product discrepancy. |
|
|
|
| |
Frequency range and maximum deviation comply with the regulations of different countries. |
