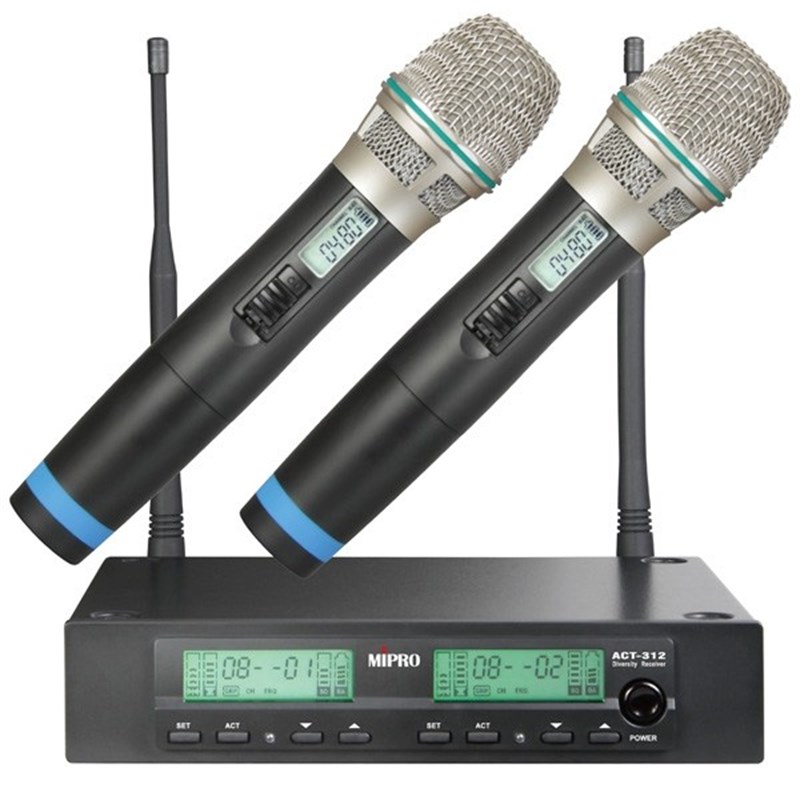

Mipro ACT 312 El Kablosuz Mikrofon Seti - Çift El
• EIA standard 1/2U metal receiver.
• Receiver provides bias for booster where MIPRO antenna systems can be added for extended receiving range and stability.
• Backlit LCD displays group, channel, frequency, RF level, antenna selection, AF level, battery level indicator, interference warning indicator, and panel lock indicator.
• A lit green light indicates a working mode when receiver detects an incoming signal or buttons touched. Light dims automatically when receiver is idle for about 10 seconds.
• Balanced XLR / unbalanced 1/4 " audio output jack, output level switch and DC input are on the rear panel. One mixed-output switch is available for dual-channel receivers.
• High efficiency and low spurious PLL circuitry with Auto Scan functioin. Each receiver is presets with 11 groups, Groups 1~6, 7~10 have 8 &16 compatible channels respectively. Up to 8 channels in group 11 can be saved and recalled within 961 user-defined frequencies. A total of 112 preset channels per band.
• World’s first ACT™ function provides precise and rapid frequency sync to the transmitters.
• Advanced diversity technology for optimum reception range and reduces signal dropouts and the “PiloTone & NoiseLock” dual-squelch circuits prevent noise interference.
• Adjustable ‘SQ’ for higher sensitivity to increase receiving distance and lower sensitivity to reduce interference.
• Industry’s only RF interference warning indicator for ideal SQ level adjustment.
• DC input socket accepts 12~15V power supply.
• Matching ACT-30H handheld and ACT-30T bodypack transmitters.
| Channel |
Dual |
|
|
|
|
|
|
| Chassis |
EIA-Standard 19" 1/2U |
|
|
|
|
|
|
| Receiving Mode |
Diversity |
|
|
|
|
|
|
| Frequency Range |
UHF 480~934MHz |
|
|
|
|
|
|
| Bandwidth |
24MHz |
|
|
|
|
|
|
| Preset Frequencies |
112 preset channels. |
|
|
|
|
|
|
| |
Group 1-6: 8 compatible channels in each group. |
|
|
|
|
| |
Group 7-10: 16 compatible channels in each group. |
|
|
|
|
| |
Group 11: Up to 8 channels can be saved & recalled. 961 user-defined frequencies in group 11. |
| Antenna |
Rear Panel. Detachable. |
|
|
|
|
|
|
| Oscillation Mode |
PLL synthesized |
|
|
|
|
|
|
| Stability |
±0.005% (-10~+60ºC) |
|
|
|
|
|
|
| Sensitivity |
10dBµV, at S/N>80dB |
|
|
|
|
|
|
| S/N Ratio |
>106dB(A) |
|
|
|
|
|
|
| T.H.D. |
<0.5% @ 1kHz |
|
|
|
|
|
|
| Frequency Response |
50Hz~18kHz, with high-pass filter |
|
|
|
|
|
|
| Squelch |
"PiloTone & NoiseLock" dual- squelch circuit |
|
|
|
|
|
| Audio Output Adjustment |
Output level accurately pre-adjusted to equal to the microphone capsule sensitivity. |
|
| Maximum Output Level |
2-level Switch: Line & Mic |
|
|
|
|
|
|
| Power Supply |
External AC Adapter, 12~15V DC, 1A |
|
|
|
|
|
|
| Dimensions |
210(W)×44(H)×180(D)mm / 8.3 (W)x1.7(H)x7.1(D)" |
|
|
|
|
| Weight |
Approx. 0.95kg / 2.1lbs |
|
|
|
|
|
|
| Note |
Refer to actual product in the event of product discrepancy. |
|
|
|
| |
Frequency range and maximum deviation comply with the regulations of different countries. |
