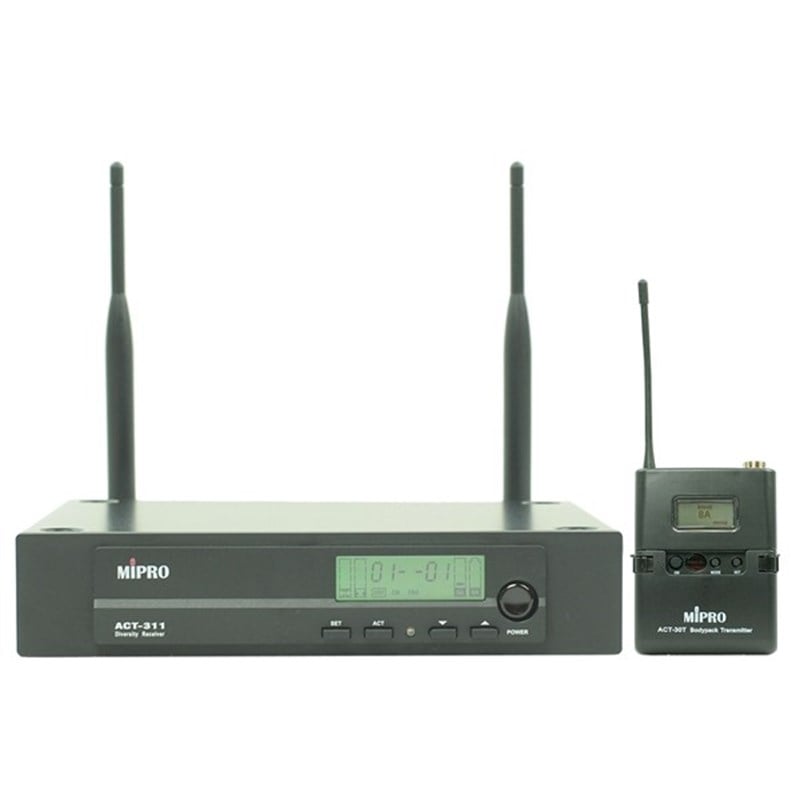

Mipro ACT 311 Yaka Tipi Kablosuz Mikrofon Seti
Mipro ACT 311 Yaka Tipi Kablosuz Mikrofon Seti

Mipro ACT 311 Yaka Kablosuz Mikrofonu

Marka : Mipro
İndirim Oranı : %46 İndirim
Fiyat : ₺20.453,01(KDV Dahil)
İndirimli : ₺11.028,59(KDV Dahil)
₺2.072,64 'den başlayan taksitlerle



Mipro ACT 311 Kablosuz Yaka Mikrofonu



ACT-311 Single-Channel Diversity Receiver

EIA standard 1/2U metal receiver.

Receiver provides bias for booster where MIPRO antenna systems can be added for extended receiving range and stability.

Backlit LCD displays group, channel, frequency, RF level, antenna selection, AF level, battery level indicator, interference warning indicator, and panel lock indicator.

A lit green light indicates a working mode when receiver detects an incoming signal or buttons touched. Light dims automatically when receiver is idle for about 10 seconds.

Balanced XLR / unbalanced 1/4 " audio output jack, output level switch and DC input are on the rear panel. One mixed-output switch is available for dual-channel receivers.

High efficiency and low spurious PLL circuitry with Auto Scan functioin. Each receiver is presets with 11 groups, Groups 1~6, 7~10 have 8 &16 compatible channels respectively. Up to 8 channels in group 11 can be saved and recalled within 961 user-defined frequencies. A total of 112 preset channels per band.

World’s first ACT™ function provides precise and rapid frequency sync to the transmitters.

Advanced diversity technology for optimum reception range and reduces signal dropouts and the “PiloTone & NoiseLock” dual-squelch circuits prevent noise interference.

Adjustable ‘SQ’ for higher sensitivity to increase receiving distance and lower sensitivity to reduce interference.

Industry’s only RF interference warning indicator for ideal SQ level adjustment.

DC input socket accepts 12~15V power supply.

Matching ACT-30H handheld and ACT-30T bodypack transmitters.





Channel Single
Chassis EIA-Standard 19" 1/2U
Receiving Mode Diversity
Frequency Range UHF480~934MHz
Antenna Rear Panel. Detachable.
Preset Channels 112 preset channels.
  Group 1-6: 8 compatible channels in each group.
  Group 7-10: 16 compatible channels in each group.
  Group 11: Up to 8 channels can be saved & recalled.
  961 user-defined frequencies in group 11.
Oscillation Mode PLL Synthesized, Frequency Stability≦±0.005% (-10~+60℃)
Sensitivity 10dBμV, at S/N>80dB
S/N Ratio >106dB(A)
T.H.D. <0.5% @ 1kHz
Frequency Response 50Hz~18kHz, with high pass filter.
Squelch "PiloTone & NoiseLock" dual-squelch circuit.
Audio Output Adjustment Output level accurately pre-adjusted to equal to the microphone capsule sensitivity.
Maximum Output Level 2-level Switch:Line & Mic





ACT-30T Bodypack Transmitter

 Miniature, compact design.

Top features mute switch, mini-XLR connector and antenna.

Backlit LCD displays various parameters and indicators.

Unique battery cover design provides easy access to operational controls and protects against accidental change of settings.

Connector for optional MJ-70 remote mute switch cable.

Low spurious PLL-synthesized technology enhances frequency stability and reliability.  One-touch ACT syncs the transmitter and receiver frequency automatically.

Selectable impedance for microphone or guitar/line inputs.

4-pin mini XLR connector is compatible with all MIPRO lavalier, headworn microphones and instrument cable.

Highly efficient power consumption circuitry ensures long operating hours from 2 AA batteries.

Adjustable belt clip allows wearing transmitter in up or down position.





Housing Rugged Plastic
Frequency Range UHF480 ~ 934 MHz
Bandwidth 24 MHz
Oscillation Mode PLL Synthesized
Channel Set-Up ACT Sync
LCD Display LCD displays working band-code, group, channel, frequency, AF input gain, RF output power, mute & lock status, battery status and error codes.
RF Output Power 10 mW / 50 mW (switchable)
Spurious Emissions <-55 dBc
Max. Input Level 0 dBV
Mute Connector Optional MJ-70 remote mute switch
Battery 2 AA alkaline
Dimensions (W × H × D) 63 × 82 × 22 mm / 2.5 × 3.2 × 0.9 "
Weight Approx. 81 g / 2.9 oz (excluding batteries)
Patents & Approvals Patented. Telecom and safety regulations approved.
Note Refer to actual product in the event of product discrepancy.
  Frequency range and maximum deviation comply with the regulations of different countries.
