Physical
Length: 237 mm (9.3 in.)
Width: 155 mm (6.1 in.)
Height: 338 mm (13.3 in.)
Height with hanging bracket: 362 mm (14.25 in.)
Weight: 4.3 kg (9.5 lbs.)
Dynamic Effects
Color wheel: 8 colors plus open, variable and random rotation
Static gobo wheel (stamped): 8 static gobos plus open, variable and random rotation
Strobe: Variable from 3 - 20 Hz, pulse effects and random strobe
Electronic dimming: 0 - 100%, four dimming curve options
Pan: 540°
Tilt: 230°
Control and Programming
Control options: DMX, 4 stand-alone shows, master/slave
DMX channels: 10
Stand-alone trigger: Sound-trigger, auto-run
User Interface: Control panel with backlit LCD display
DMX compliance: ANSI E1.11 - USITT DMX512-A
Optics
Light source: 18 W white LED engine
Minimum LED lifetime: 50 000 hours (to >70% luminous output)*
Beam angle: 14°
Focus: Manual
*Figure obtained under manufacturer's test conditions
Construction
Color: Black
Housing: High-impact flame-retardant thermoplastic on metal frame
IP rating: IP 20
Installation
Orientation: Standing or hanging
Mounting points: Bracket for single rigging clamp, M12 or ½”
Location: Dry location only
Minimum distance to illuminated surfaces: 200 mm (8 in.)
Minimum distance to combustible materials: 100 mm (4 in.)
Minimum clearance around fans and vents: 100 mm (4 in.)
Connections
AC power input: IEC male inlet, C14
DMX data in/out: 3-pin and 5-pin locking XLR
|
Electrical
AC power: 100-240 V nominal, 50/60 Hz
Fuse: Fuse: T 2.0 A, 250 V
Typical Power and Current
120 V, 60 Hz: 52 W, 0.9 A
230 V, 50 Hz: 50 W, 0.4 A
Typical half-cycle RMS inrush current: 6.4 A
Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
Thermal
Cooling: Forced air (temperature-regulated, low noise)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 0° C (32° F)
Total heat dissipation (calculated, +/- 10%, at full intensity, full white): 180 BTU/hr.
Approvals
EU safety: EN 60598-2-17, EN 61000-3-3, EN 62471, EN 62493
EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61547
US safety: UL 1573
US EMC: CFR Title 47 Part 15 Class A
Canadian safety: CSA C22.2 No. 166
Canadian EMC: ICES-003 Class A
Australia/NZ (pending): RCM
Included Items
Power cable, EU, IEC C13 female, molded Schuko, 1.9 m (6.3 ft.)
Power cable, US, IEC C13 female, molded NEMA 5-15P, 1.9 m (6.3 ft.)
Bracket and hardware for rigging clamp attachment
Accessories
Installation hardware
Super lightweight half coupler, black: P/N 91602018
Safety cable, SWL 60 kg (132 lb.), BGV C1/ DGUV 17, black: P/N 91604006
Related Items
RUSH® Software Uploader 1: P/N 91611399
Martin® M-Touch: P/N 90737040
Martin® M-Play: P/N 90737030
Ordering Information

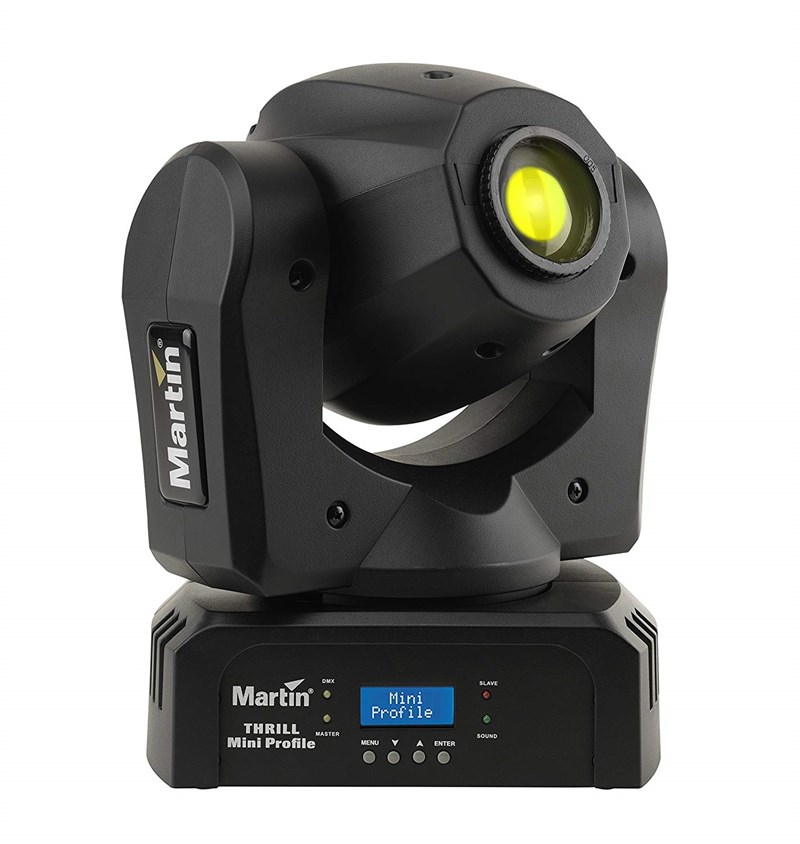

THRILL Mini Profile: P/N 90240090
|
