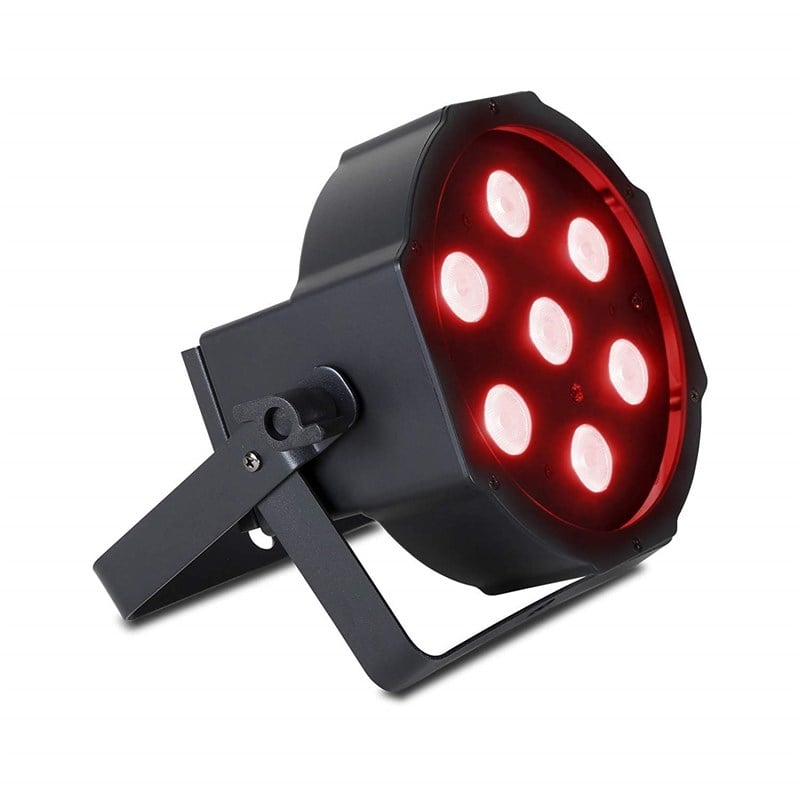

Martin Thrill Compact Par Mini 7 x 3W RGB Led Par Işık
THRILL Compact PAR Mini LED, packs a wallop of light for its small size. This LED fixture will illuminate your party or event with full, intense and saturated colors. Seven 3-watt RGB LEDs give a uniform field of light that is perfect for wall washes, truss toning and front or back lighting. The sit-flat design makes the light easy to slide under tables, tuck inside a truss or into any tight spot.
The THRILL Compact PAR Mini LED features 36 vibrant, pre-programmed colors and RGB color mixing so that any color in the spectrum can be created. Combine this wide color palette with electronic strobe/dimming and the THRILL Compact PAR Mini LED will take your event from great to brilliant. An included wireless remote control makes programming a breeze, simply point and click to get the color you want or run the pre-programmed settings.
Its lightweight design, super compact profile and wireless remote control make it the perfect fit and a safe all-around choice for on-the-go entertainers, DJs, venues and home enthusiasts that require professional lighting at an affordable price.
Portable, lightweight and easy to control
Sit-flat design allows versatile fixture placement
Plug-and-play functionality with easy-to-use remote control
Features
Uniform field of light via 7 x 3 W RGB LEDs
Fixed 25° beam angle
36 vibrant pre-programmed colors
Dynamic effects include color mixing, strobe, dimmer
Remote control included for quick color selection
Easy to operate standalone sound-activated, master/slave control methods
4 professionally pre-programmed shows
DMX operable for individualized control and design
Included multi-function bracket for hanging or surface mount
Common IEC mains inlet/thru – mains cable included
Tech Specs
Physical
Length: 229 mm (9 in.)
Width: 115 mm (4.5 in.)
Height: 229 mm (9 in.)
Maximum standing footprint: 229 mm (9 in.) x 204 mm (8 in.)
Weight: 1.3 kg (2.9 lb.)
Dynamic Effects
Color mixing: RGB
Color selection: 36 color presets
Electronic dimming: 0 – 100 %
Strobe and pulse effects: Variable speed and action, random strobe
Electronic 'shutter' effect: Instant open and blackout
Control and Programming
Control options: DMX, stand-alone, IR remote control
DMX channels: 3/6
Stand-alone trigger options: Sound-trigger, auto-run
User interface: Control panel with LED display
DMX compliance: ANSI E1.11 - USITT DMX512-A
Optics
Light source: 7 x 3 W RGB LEDs
Minimum LED lifetime: 30 000 hours (to >70% luminous output)*
Beam angle: 25°
*Figure obtained under manufacturer's test conditions
Construction
Housing: High-impact flame-retardant thermoplastic
Color: Black
Ingress protection: IP 20
Installation
Mounting: Adjustable bracket, surface or truss mount
Mounting points: Bracket for single rigging clamp, M12 or ½”
Orientation: Any
Location: Indoor use only
Connections
AC power in/thru: IEC male inlet/female connector, C14/C13
DMX data in/thru: 3-pin XLR
Electrical
AC power: 100-240 V nominal, 50/60 Hz
Fuse: F 3AL, 250 V
Typical total power consumption: 25 W
Maximum fixtures on AC power throughput, 100-130 V:10 THRILL Compact PAR Mini LED or 3 A
Maximum fixtures on AC power throughput, 220-240 V:15 THRILL Compact PAR Mini LED or 3 A
Power consumption figures are typical, not maximum. Allow for +/-10% variation.
Typical Power and Current
110 V, 60 Hz: 0.3 A, 30 W *
230 V, 50 Hz: 0.2 A, 30 W *
*Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
Thermal
Cooling: Passive
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 0° C (32° F)
Total heat dissipation (calculated, +/- 10%, at full intensity, full white): 85 BTU/hr.
Approvals
EU safety: EN 60598-1, EN 60598-2-17, EN 62471, EN 62493
EU EMC: EN 55015, EN 61000-3-2, EN 61000-3-3, EN 61547
US EMC (pending): CFR Title 47 Part 15 Class A
Canadian EMC (pending): ICES-003 Class A
Australia/NZ (pending): RCM
Included Items
Power cable, EU, IEC C13 female, molded Schuko, 1.5 m (6.3 ft.)
Power cable, US, IEC C13 female, molded NEMA 5-15P, 1.5 m (6.3 ft.)
Multi-function bracket and hardware
IR remote control, grey, 16-button
Battery for remote control, 3 V, CR2025 lithium
Accessories
Installation hardware
Super lightweight half coupler, black: P/N 91602018
Safety cable, SWL 60kg (132 lb.), BGV C1/ DGUV 17, black: P/N 91604006
Related Items
Martin® M-Touch: P/N 90737040
Martin® M-Play: P/N 90737030
Ordering Information
THRILL Compact PAR Mini LED: P/N 90280115
