Physical
Length: 262 mm (10.3 in.)
Width: 127 mm (5 in.)
Height: 266 mm (10.4 in.)
Maximum standing footprint: 266 mm (10.4 in) x 204 mm (8 in.)
Weight: 2.1 kg (4.3 lb.)
Dynamic Effects
Color mixing: RGBWAUV
Color selection: 36 color presets
Electronic dimming: 0-100%
Strobe and pulse effects: Variable speed and action, random strobe
Electronic 'shutter' effect: Instant open and blackout
Control and Programming
Control options: DMX, stand-alone, IR remote control
DMX channels: 6/9
Stand-alone trigger options: Sound-trigger, auto-run

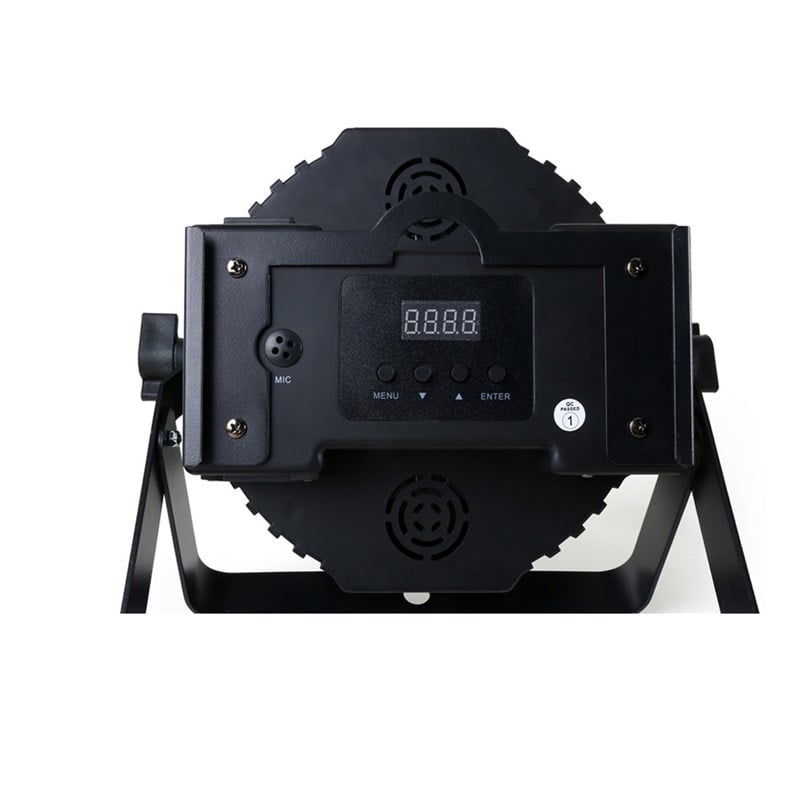

User interface: Control panel with LED display
DMX compliance: ANSI E1.11 - USITT DMX512-A
Optics

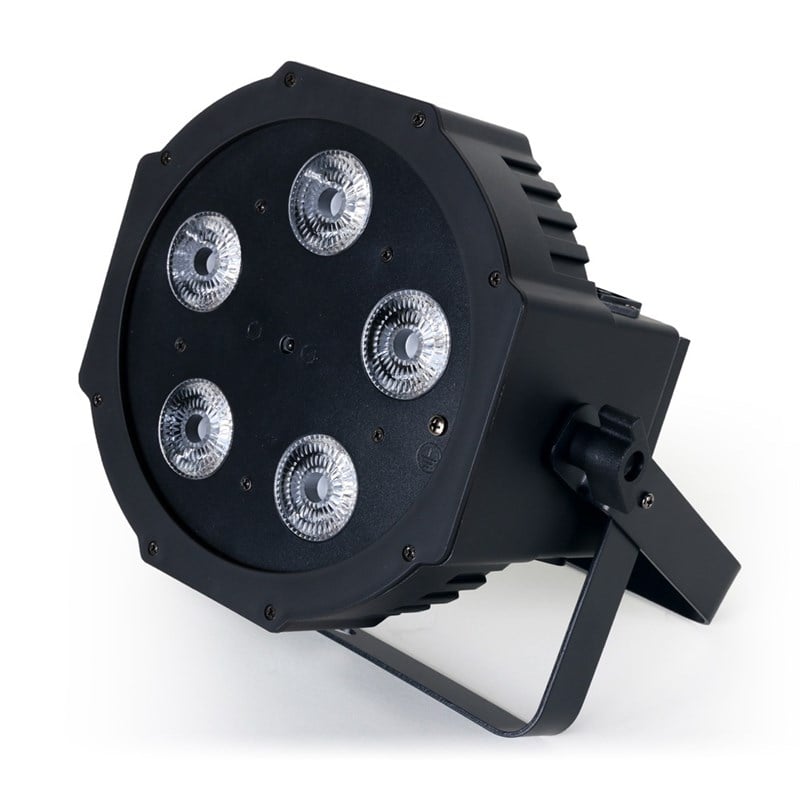

Light source: 5 x 12 W RGBWAUV LEDs
Minimum LED lifetime: 30 000 hours (to >70% luminous output)*
Beam angle: 18°
*Figure obtained under manufacturer's test conditions
Construction
Housing: High-impact flame-retardant thermoplastic
Color: Black
Ingress protection: IP 20
Installation

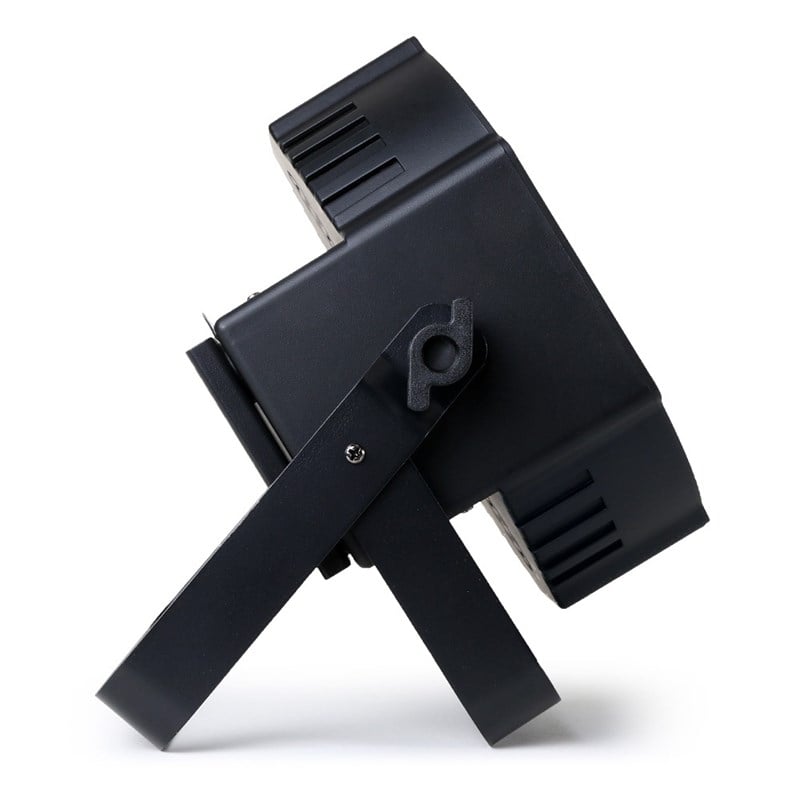

Mounting: Adjustable bracket, surface or truss mount
Mounting points: Bracket for single rigging clamp, M12 or ½”
Orientation: Any
Location: Dry locations only
Connections
AC power in/thru: IEC male inlet/female connector, C14/C13
DMX data in/thru: 3-pin XLR
|
Electrical
AC power: 100-240 V nominal, 50/60 Hz
Fuse: F 3 AL, 250 V
Typical total power consumption: 50 W
Maximum number of fixtures on AC power throughput, 100-130 V: 6 x THRILL Compact PAR 64 LED or 3 A
Maximum number of fixtures on AC power throughput, 220-240 V: 10 x THRILL Compact PAR 64 LED or 3 A
Power consumption figures are typical, not maximum. Allow for +/-10% variation.
Typical Power and Current
110 V, 60 Hz: 0.5 A, 50 W *
230 V, 50 Hz: 0.3 A, 50W *
*Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
Thermal
Cooling: Forced air, temperature-regulated
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 0° C (32° F)
Total heat dissipation (calculated, +/- 10%) at full intensity, full white: 170 BTU/hr.
Approvals
EU safety: EN 60598, EN 60598-2-17, EN 62471, EN 62493
EU EMC: EN 55015, EN 61000-3-2, EN 61000-3-3, EN 61547
US EMC (pending): CFR Title 47 Part 15 Class A
Canadian EMC (pending): ICES-003 Class A
Australia/NZ (pending): RCM
Included Items
Power cable, EU, IEC C13 female, molded Schuko, 1.5 m (4.9 ft.)
Power cable, US, IEC C13 female, molded NEMA 5-15P, 1.5 m (4.9 ft.)
Multi-function bracket and hardware
IR remote control, grey, 16-button
Battery for remote control, 3 V, CR2025 lithium
Accessories
Super lightweight half-coupler, black: P/N 91602018
Safety cable, SWL 60 kg (132 lb.), BGV C1/ DGUV 17, black: P/N 91604006
Related Items
Martin® M-Touch: P/N 90737040
Martin® M-Play: P/N 90737030
Ordering Information

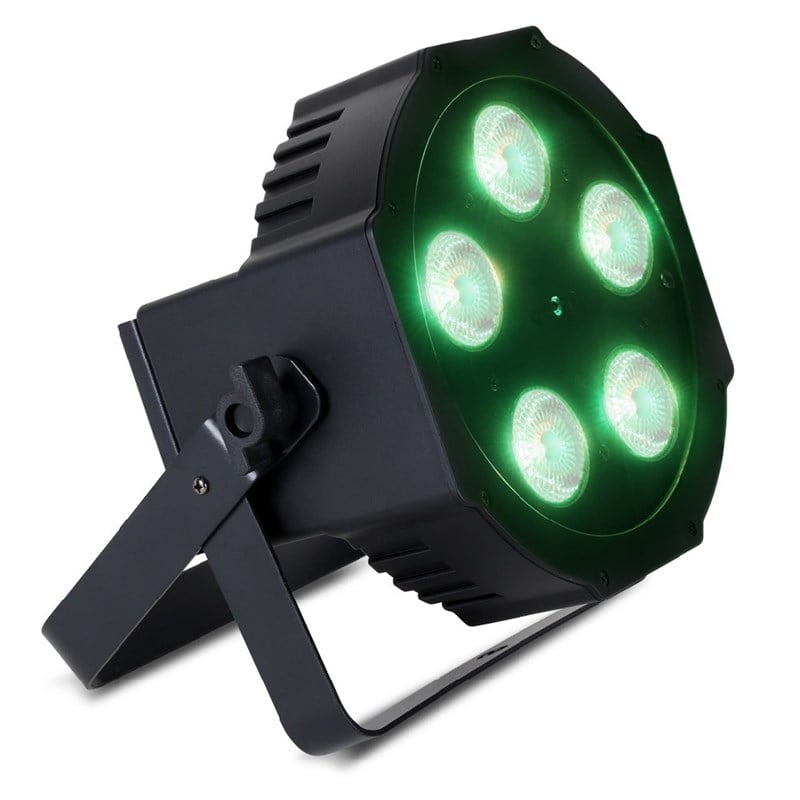

THRILL Compact PAR 64 LED: P/N 90280116
|
