| Physical
Dimensions (L x W x H): 400 x 441 x 177 mm (15.7 x 17.4 x 7.0 in.)
Weight: 9.5 kg (20.9 lbs.)
Dynamic Effects
Dimming: 0 – 100%, coarse & fine control
Shutter: Strobe & pulse effects, instant open and blackout
Control and Programming
Control system: USITT DMX512/1990 with RDM
DMX channels: 1, 4 or 8
RDM compliance: ANSI/ESTA E.120
Interface: Control panel with backlit LCD display
Optics
Beam angle: 70°
Construction
Color: Black
Housing: High impact flame retardant thermoplastic and aluminium
IP rating : IP 20
Installation
Mounting points : Adjustable bracket, surface or truss mount
Location: Indoor location only
Orientation: Any
Minimum distance to illuminated surfaces: 0.5 m (20 in.)
Minimum distance to combustible materials: 0.1 m (4 in.)
Connections
AC power input/output: Neutrik PowerCon
DMX & RDM data in/out : 3-pin and 5-pin locking XLR
Electrical
AC power: 100-240 V nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Fuse: T 250 V 6.3 A
Maximum total power consumption: 448 W
Typical half-cycle RMS inrush current at 240V, 50Hz: 15.5 A
Recommended Miniature Circuit Breaker when power linking* : Type D
*Per IEC 60898/UL489/CSA C22.2 No. 5
Typical Power and Current
100 V, 60 Hz: 432 W, 4.3 A, PF 0.998
120 V, 60 Hz: 428 W, 3.6 A, PF 0.996
230 V, 50 Hz: 426 W, 1.9 A, PF 0.956
Measurements made at nominal voltage. Figures are typical, not maximum, allow for a deviation of +/- 10%.
Included Items
Power cable, 1.5 m without mains plug
|
Thermal
Cooling: Convection
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min): 0°C (32° F)
Approvals
EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
US safety: UL 1573
US EMC: 47 CFR 15 Class A
Canadian safety : CSA C22.2 No. 166
Canadian EMC : ICES-003 Class A
Australia/NZ: RCM
CE ETL C US Intertek Aus
Accessories
Installation hardware
Half-coupler clamp: P/N 91602005
G-clamp (vertical hanging suspension only): P/N 91602003
Quick-trigger clamp (vertical hanging suspension only) :P/N 91602007
Safety cable, 60Kg, BGV C1: P/N 91604006
Cables, 16 A, for connection to power in chains
Power relay cable 3 x 2.5 mm2, H07RN-F
POWCON-POWCON 1.2 m (3.9 ft.) : P/N 91611798
Power relay cable 3 x 14 AWG, SJOOW
POWCON-POWCON 1.2m (3.9 ft.) : P/N 91610175
Power relay cable 3 x 2.5 mm2, H07RN-F
POWCON-POWCON 2.5m (8.2 ft.): P/N 91611799
Power relay cable 3 x 14 AWG,SJOOW
POWCON-POWCON 2.5m (8.2 ft.) : P/N 91610176
Cables, 16 A, for power input
Power input cable 3 x 2.5 mm2, H07RN-F
OPEN-POWCON 1.5 m (4.9 ft.): P/N 91611800
Power input cable 3 x 14 AWG, SJOOW
OPEN-POWCON 1.5 m (4.9 ft.): P/N 91610177
Power input cable 3 x 2.5 mm2, H07RN-F
OPEN-POWCON 5.0 m (16.4 ft.): P/N 91611801
Power input cable 3 x 14 AWG, SJOOW
OPEN-POWCON 5.0 m (16.4 ft.): P/N 91610178
(H07RN-F are European approved cables, SJOOW are US approved cables)
Power connectors
Power Connector PowerCON Male: P/N 91611795
Power Connector PowerCON Female : P/N 91611794
Related Items
Martin M-DMX with Martin Companion Uploader Software
Ordering Information

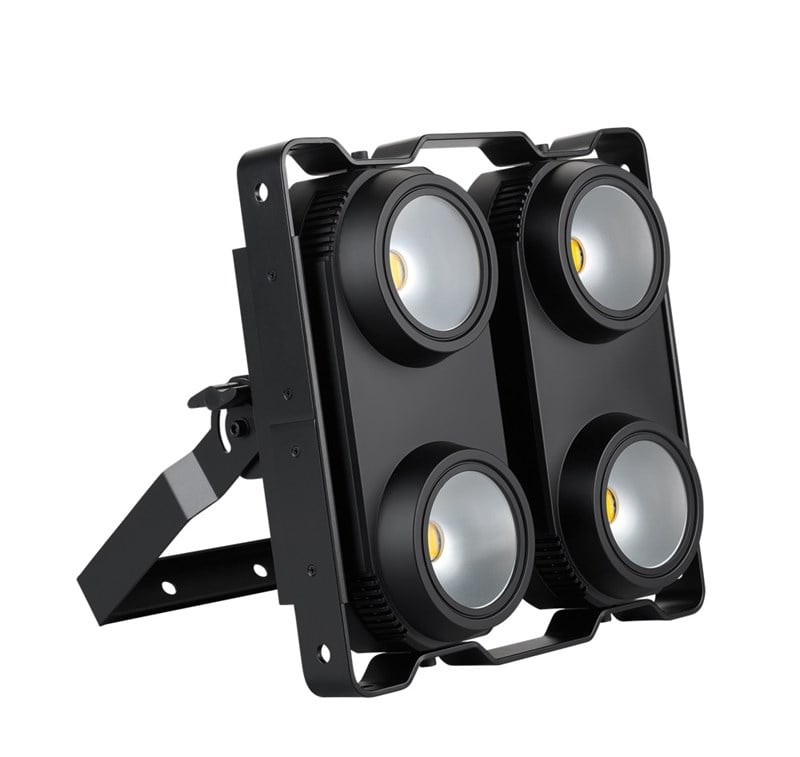

RUSH BLINDER 1 WW in cardboard box: P/N 90480150
|
