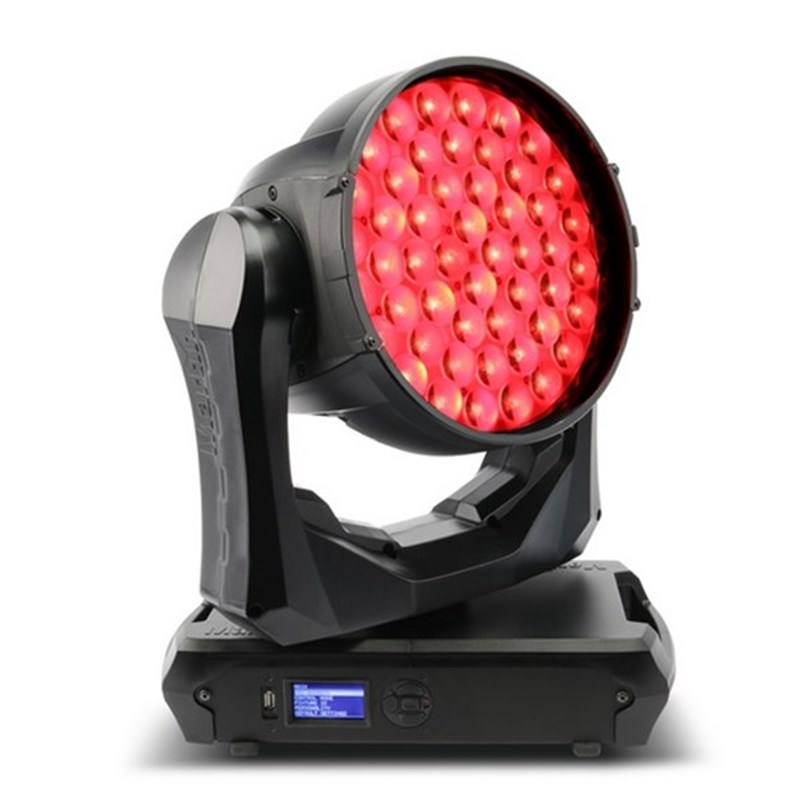

Physical
Length: 452 mm (17.8 in.)
Width: 431 mm (17.0 in.) across yoke
Height: 511 mm (20.1 in.) head straight up 581 mm (22.9 in.) maximum
Weight: 21 kg (46.3 lbs.)
Dynamic Effects
Pre-programmed effects: Range of synchronized and independent color, intensity, beam twister and zone effects
Electronic dimming: Four dimming curve options
Color mixing: RGBW
Color temperature control: Variable 2000 - 10,000 K
Beam effects: Beam twister, light and color morphing, color spin
'Color wheel' effect: 36 solid colors plus white, variable-speed 'color wheel rotation' effect and random color
Color ring effects: 36 split ring colors with variable-speed color wheel rotation effects
Shutter effect: Electronic, with variable speed regular and random strobe
Zoom: Motorized
Pan: 540°
Tilt: 270°
Pan and tilt speed: Adjustable via onboard control panel and DMX
Control and Programming
Control systems: DMX
Control options: Independent control of color ring/beam zones
Macro programs selectable via DMX: Range of synchronized and independent color, intensity, beam twister and zone effects
RDM: Implemented
Control resolution: 8-bit, with 16-bit control of pan, tilt, dimming and lens rotation
Setting and addressing: Control panel with backlit graphic display
DMX channels: 33/17
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
Transceiver: RS-485
Fixture software update: USB memory device or USB/DMX hardware interface over DMX link
Optics
Zoom range: 11–53° (1:5)
Light source: 50 x 15 W RGBW LEDs
LED refresh rate: Beam 3000 Hz, Aura 3000 Hz
Minimum LED lifetime: 50,000 hours (to >70% luminous output)*
Output: 16,000 lm
*Figure obtained under manufacturer´s test conditions
Construction
Housing: High-impact flame-retardant thermoplastic
Color: Black
Protection rating: IP20
Installation
Mounting points: 2 pairs of quarter-turn locks
Location: Indoor use only, must be fastened to surface or structure
Orientation: Any
Minimum distance to combustible materials: 0.2 m
Minimum distance to illuminated surfaces: 2.0 m
Connections
AC power input: Neutrik PowerCon
DMX and RDM data in/out: 5-pin locking XLR
|
Electrical
AC power: 120-240 V nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current: 10.3 A
Maximum total power consumption: 1020 W
Typical power consumption, all effects static, zero light output: Approx. 50 W
Typical Power and Current
120 V, 60 Hz: 7.4 A, 880 W, PF 0.999
208 V, 60 Hz: 4.2 A, 860 W, PF 0.995
230 V, 50 Hz: 3.8 A, 856 W, PF 0.993
240 V, 50 Hz: 3.7 A, 858 W, PF 0.992
Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
Thermal
Cooling: Forced air (temperature-regulated, low noise, user-definable levels)
Maximum ambient temperature (Ta max.): 40° C
Minimum ambient temperature (Ta min.): 5° C
Total heat dissipation (calculated, +/- 10%): 3480 BTU/hr.
Approvals
EU safety: EN 60598-2-17 (EN 60598-1), EN 62471
EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
US safety: UL 1573
US EMC: FCC Part 15 Class A
Canadian safety: CSA C22.2 No. E598-2-17 (CSA E60598-1)
Canadian EMC: ICES-003 Class A
Australia/NZ: C-TICK N4241
Included Items
Two omega brackets for rigging clamp attachment: P/N 91602001
Accessories
3 m power cable, 12 AWG, SJT, with PowerCon NAC3FCA power input connector: P/N 11541503
Soft Lens for MAC Quantum Wash™: P/N 91611600
G-clamp: P/N 91602003
Quick trigger clamp: P/N 91602007
Half-coupler clamp: P/N 91602005
Neutrik PowerCon NAC3FCA power input connector, cable mount, blue: P/N 05342804
Flightcase for 2 x MAC Quantum™: P/N 91510210
Related Items
Martin USB Duo™ DMX Interface Box: P/N 90703010
Martin™ RDM 5.5 Splitter: P/N 90758150
Ordering Information
MAC Quantum Wash™ in cardboard box: P/N 90240020
MAC Quantum Wash™ in 2-unit flightcase: P/N 90240030
|
