Physical
Length: 302 mm (11.9 in.) across yoke
Width: 302 mm (11.9 in.) across yoke
Height: 360 mm (14.2 in.), head straight up
Weight: 5.6 kg (12.4 lbs.) without accessories
Dynamic Effects
Beam color mixing: RGBW
Aura (secondary lens array illumination) color mixing: RGB
Beam color temperature control: CTO, variable 10 000 - 2500 K
Beam and aura electronic 'color wheel' effect: 33 LEE-referenced colors plus white, variable-speed color-wheel rotation effect and random color
Beam and aura independent shutter effects: Electronic, with regular and random pulse, burst and strobe effects
Pre-programmed effects: Range of synchronized and independent beam and aura FX, different FX can be combined
Electronic dimming: Independent beam and aura, four dimming curve options
Pan: 540°
Tilt: 268°
Position correction system: Absolute position monitoring
Control and Programming
Control options: Independent control of beam (primary output) and aura (secondary lens array illumination)
Macro programs selectable via DMX: Synchronized beam and aura effects
Control: DMX
RDM: Implemented
Control resolution: 8-bit, with 16-bit control of pan & tilt
Setting and addressing: Control panel with backlit graphic display
DMX channels: 14/25
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
Transceiver: RS-485
Fixture software update: Via DMX with Martin™ USB Duo DMX Interface Box
Optics
Zoom range: 11° - 58°
Peak angle: One-tenth

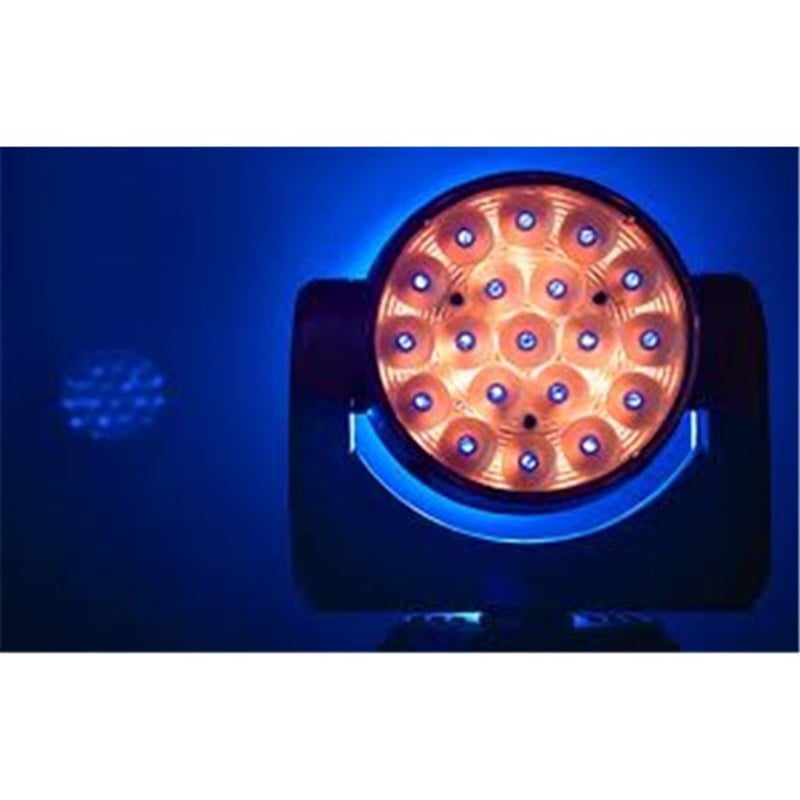

Light source: 19x 10W RGBW LED Array System
LED refresh rate: Beam 1220 Hz, Aura 4395 Hz
Minimum LED lifetime: 50,000 hours (to >70% luminous output)*
*Figure obtained under manufacturer´s test conditions
Photometric Data
Total output: 3850 lumens (zoom at maximum)
Construction
Housing: UV-resistant fiber-reinforced composite
Color: Black
Reflector: Glass, cold light
Protection rating: IP20
Installation
Mounting points: One M12 threaded hole for rigging clamp
Location: Indoor use only, must be fastened to surface or structure
Orientation: Any
Minimum distance to combustible materials: 100 mm (4.0 in.)
Minimum distance to illuminated surfaces: 200 mm (7.9 in.)
Connections
AC power input: Neutrik PowerCon
DMX and RDM data in/out: 5-pin locking XLR
USB memory devices: USB host socket
|
Electrical
AC power: 120-240 V nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch-mode
Maximum total power consumption: 260 W
Main fuse: 5 AT (slow blow)
T Typical power consumption, all effects static, zero light output: <15 W
Typical Power and Current
100 V, 60 Hz: 236 W, 2.4 A, PF 0.994
120 V, 60 Hz: 234 W, 2.0 A, PF 0.992
208 V, 60 Hz: 229 W, 1.2 A, PF 0.970
230 V, 50 Hz: 228 W, 1.1 A, PF 0.959
240 V, 50 Hz: 228 W, 1.0 A, PF 0.953
Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
Thermal
Cooling: Filtered forced air (temperature-regulated, low noise)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 5° C (41° F)
Maximum surface temperature, steady state, at 40° C ambient: 150° C (302° F)
Total heat dissipation (calculated, +/- 10% at 120 V, 60 Hz): 4180 BTU/hr
Approvals
EU safety: EN 60598-2-17 (EN 60598-1), EN 62471
EU EMC: EN 55015, EN 55103-1, EN 55103-2, EN 61547
US safety: UL 1573
US EMC: FCC Part 15 Class A
Canadian safety: CSA E598-2-17 (CSA E60598-1)
Canadian EMC: ICES-003 Class A
Australia/NZ: C-TICK N4241
Included Items
Lamp (installed): P/N 97010346
Two Omega clamp attachment brackets with 1/4-turn fasteners: P/N 91602001
Accessories
3 m power cable, 12 AWG, SJT, with PowerCon NAC3FCA power input connector: P/N 11541503
Neutrik PowerCon NAC3FCB power output connector, cable mount, light grey: P/N 05342805
Power relay cable with PowerCon connectors, 1.4 m (4.6 ft.): P/N 11850099
Power relay cable with PowerCon connectors, 2.25 m (7.4 ft.): P/N 11850100
Set of 5 quick-mount surface mounting brackets: P/N 91606017
G-clamp: P/N 91602003
Quick trigger clamp: P/N 91602007
6-unit flightcase for MAC Aura: P/N 91515020
Neutrik PowerCon NAC3FCA power input connector, cable mount, blue: P/N 05342804
Half-coupler (tube) clamp: P/N 91602005
MAC Aura / Aura XB Soft Lens Kit: P/N 91611730
Related Items
Martin USB Duo™ DMX Interface Box: P/N 90703010
Martin™ RDM 5.5 Splitter: P/N 90758150
Ordering Information
MAC Aura™ in cardboard box: P/N 90232000
MAC Aura™ in 6-unit flightcase: P/N 90232010
MAC Aura™, white finish, in cardboard box*
*Available by special order - please contact your Martin™ supplier for details
|
