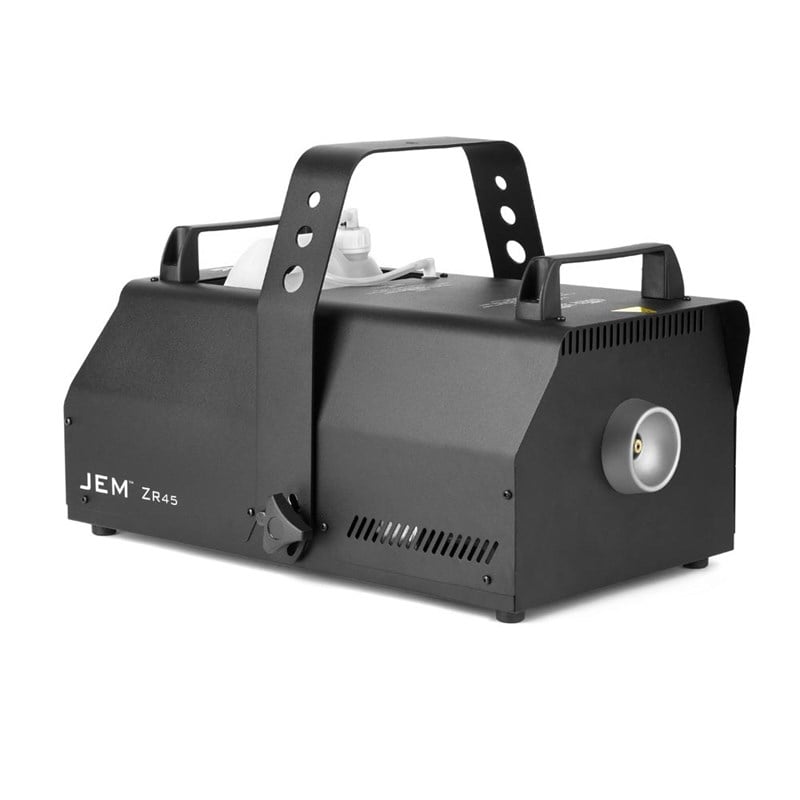

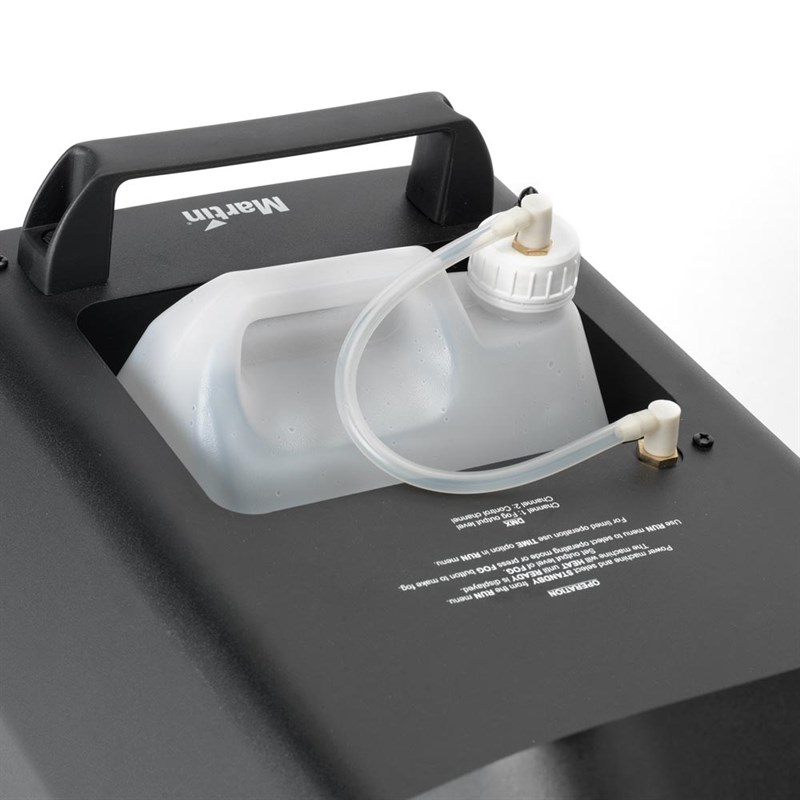

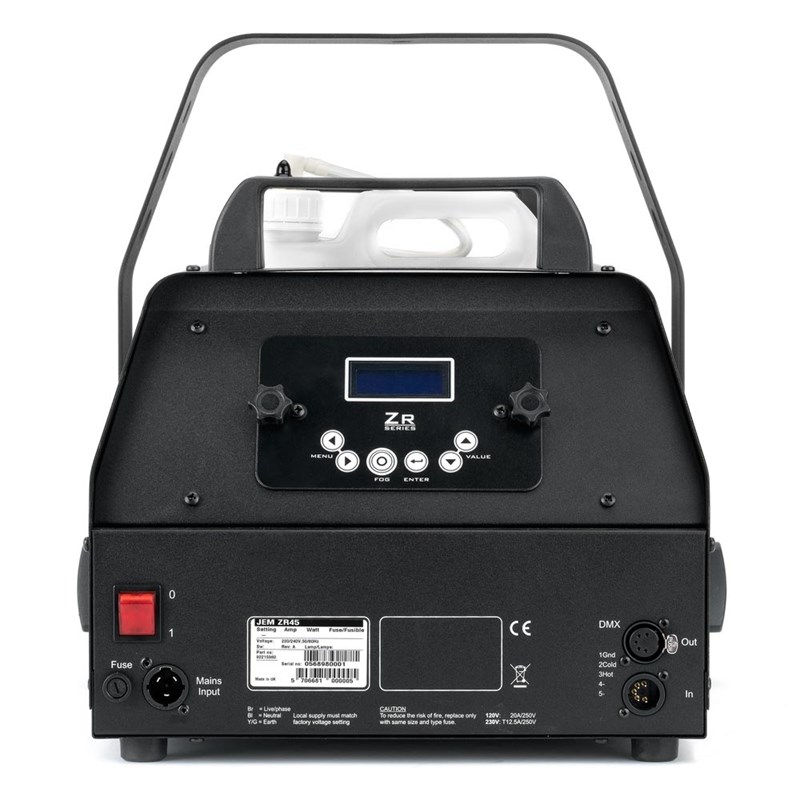

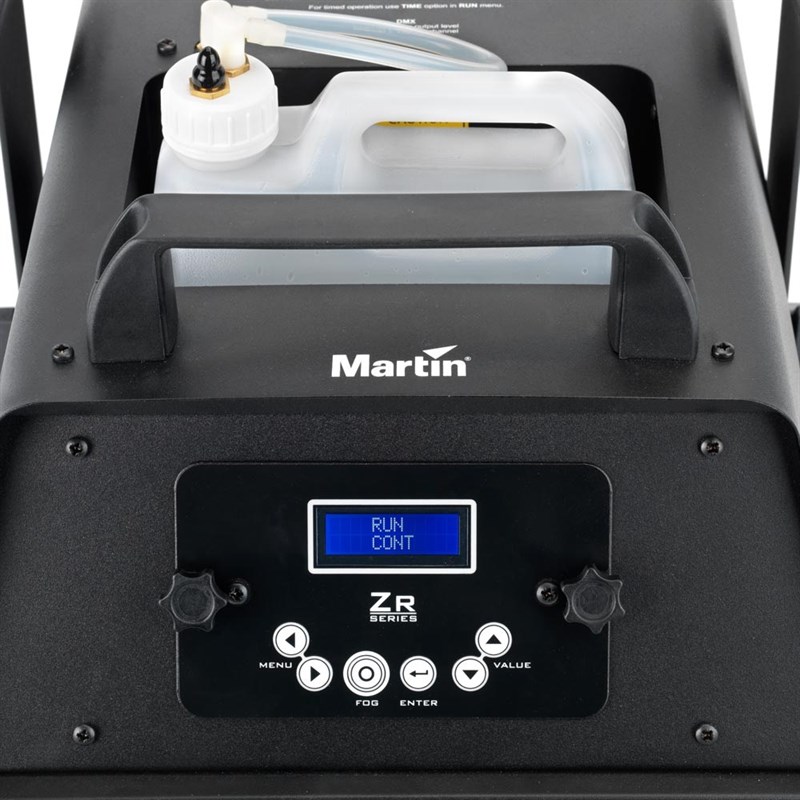

| Physical Length: 602 mm (23.1 in.) Width: 395 mm (15.6 in.) Height: 306 mm (12.1 in.) Height including hanging bracket: 393 mm (15.5 in.) Weight, dry: 17.7 kg (39.1 lb.) Weight, filled: 22.7 kg (50 lbs.) Performance Continuous effect output Coverage volume: 1300 m3 (45,909 ft3) per minute Fluid consumption (max.): 210 ml per minute Maximum operating time, maximum output, 5 l of fluid: 1.18 hours Ready time: 10-minutes Control and Programming Control options: Integrated digital remote control, DMX, master/slave link mode Control parameters: Continuous or timer-controlled output Fog: Variable output control, 0-100% DMX channels: 1 DMX compliance: ANSI E1.11 - USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 RDM Construction Housing: Steel and aluminum Hanging bracket: Integrated yoke w/safety attachment point Color: Black Heat exchanger (US model): 1800 W, thermally protected Heat exchanger (EU model): 2000 W, thermally protected Fluid pump: Dual oscillating piston, high pressure Fluid management: Fluid out sensing, sealed for transportation Fluid reservoir: 5 l drop-in reservoir with quick-connect fitting External fluid control: Fluid sensing Remote control: Integrated Digital Remote with 3 m (9.84 ft.) cable, 3-pin XLR Installation Mounting: Standing or hanging Orientation: Up to +/- 40° from horizontal Clearance around machine: 100 mm (4 in.) Connections AC Power: Neutrik PowerCON TRUE1 DMX, link mode in/out: 5-pin locking XLR Remote control: 3-pin locking XLR Firmware: AVR socket Service tools Half-coupler clamp: P/N 91602005 G-clamp (vertical hanging suspension only): P/N 91602003 Quick trigger clamp (vertical hanging suspension only): P/N 91602007 Safety cable, SWL 60 kg, BGV C1/ DGUV 17, black: P/N 91604006 Installation hardware Epsilon 5 AVR Programmer: P/N 50502004 Temperature Calibration Box: P/N 92620005 *Various sizes available - contact your dealer or see 'Fluids' product pages for details |

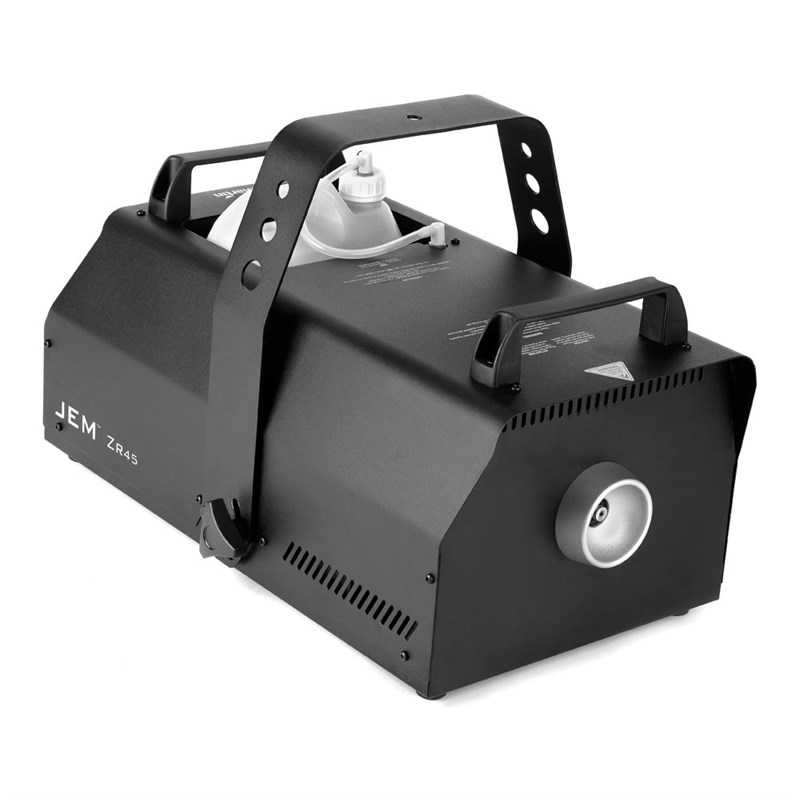

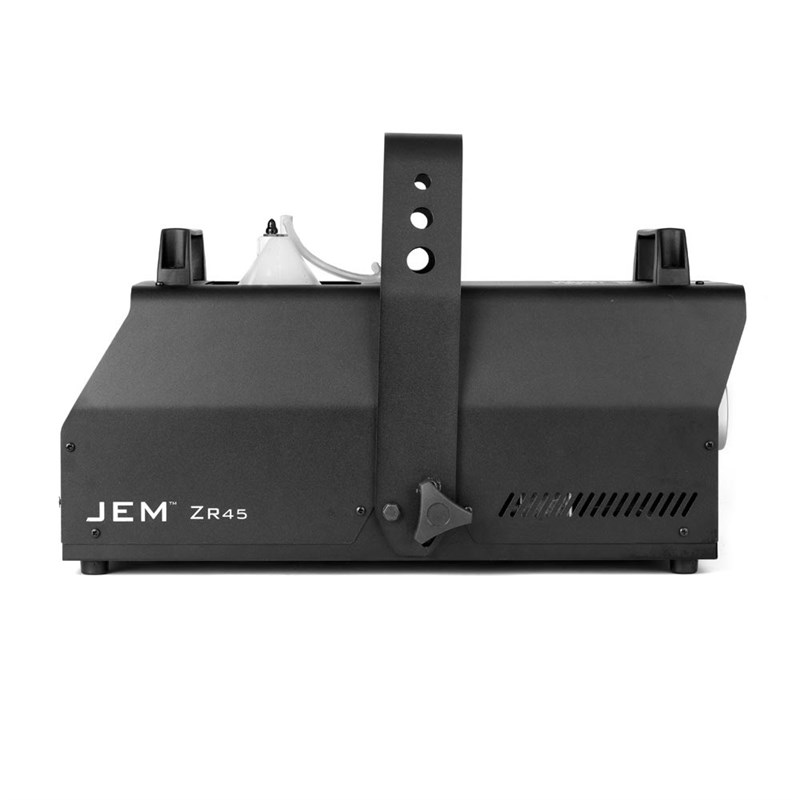

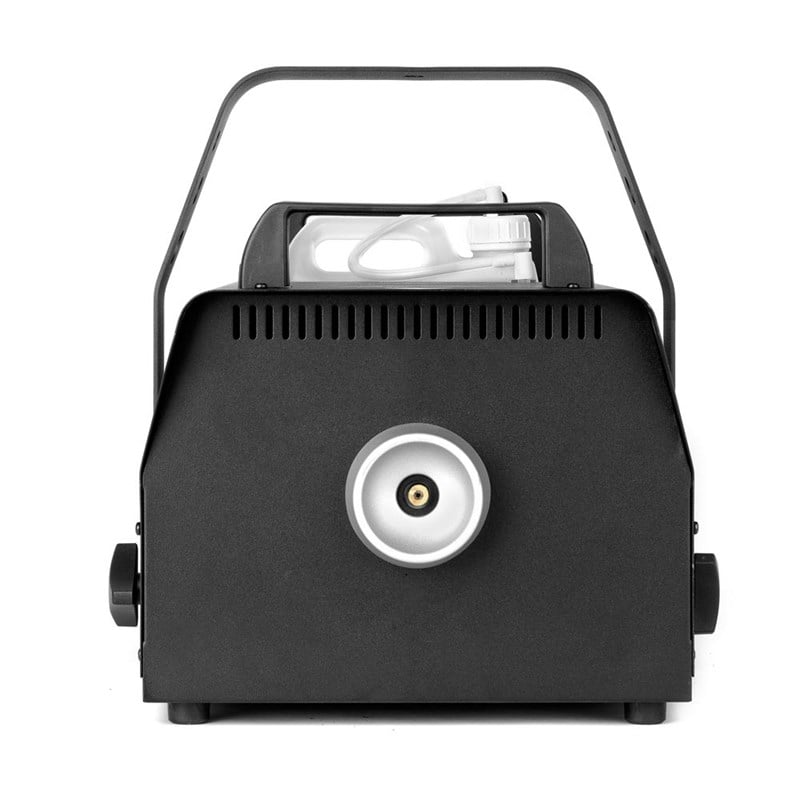

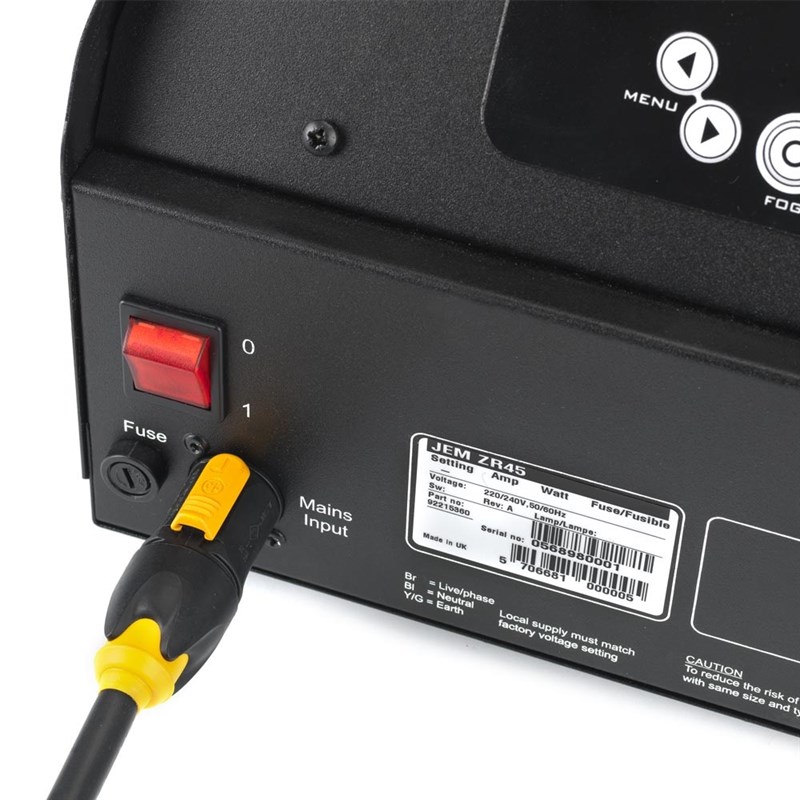

Electrical EU model: AC power: 220-240 V nominal, 50/60 Hz Main fuse: 12.5 AT (slow blow), 250 V Typical power and current: 2100 W, 9.2 A* US model: AC power: 100-130 V nominal, 50/60 Hz Main fuse: 20 AT (slow blow), 125 V Typical power and current: 1800 W, 15 A* *Measurements made at nominal voltage. Allow for a deviation of +/- 10%.: Thermal Minimum ambient temperature (Ta min.): 5° C (41° F) Maximum ambient temperature (Ta max.): 40° C (104° F) Exterior surface temperature, steady state: 30° C (86° F) Maximum nozzle temperature: 290° C (554° F) Approvals EU model EU safety: EN 60335-1+A15, EN 62233 EU EMC: EN 61000-6-3 EU immunity: EN 61000-6-1 Australia/NZ (pending): RCM US model US safety: UL 998 Canada safety: CSA C22.2 No. 104.01 CE ETL C US Intertek Included Items Fluid reservoir, 5 l: P/N 34300506 JEM ZR Series Integrated Digital Remote Control: P/N 92765048 Power input cable, EU, powerCON TRUE1, stripped ends, 3 m (9.8 ft.): P/N 11501043 Power input cable, US, 20A, powerCON TRUE1, molded NEMA 5-20P, 2 m (6.6 ft.): P/N 11501046 Accessories JEM ZR45 Ducting System with 5 m (16.4 ft.) 4" flexible ducting: P/N 92625014 JEM External Fluid Reservoir Kit, 25 l: P/N 92620035 Approved Fluids* JEM Pro-Fog Fluid, Extra Quick Dissipating JEM Pro-Fog Fluid, Quick Dissipating JEM Pro-Fog Fluid JEM Pro-Fog Fluid, High Density RUSH & THRILL Fog Fluid Martin Pro Clean and Storage Fluid Approved Discontinued Fluids* Pro Steam Simulation Pro Smoke Studio (DX) Pro Smoke Super (ZR) Pro Smoke High Density (SP) I-Fog Fluid Regular DJ Fluid (DJ) RUSH Fog Fluid RUSH ELX Smoke Fluid Martin Pro Clean Supreme Ordering Information JEM ZR45, EU: P/N 92215360 JEM ZR45, US: P/N 92215370 |
