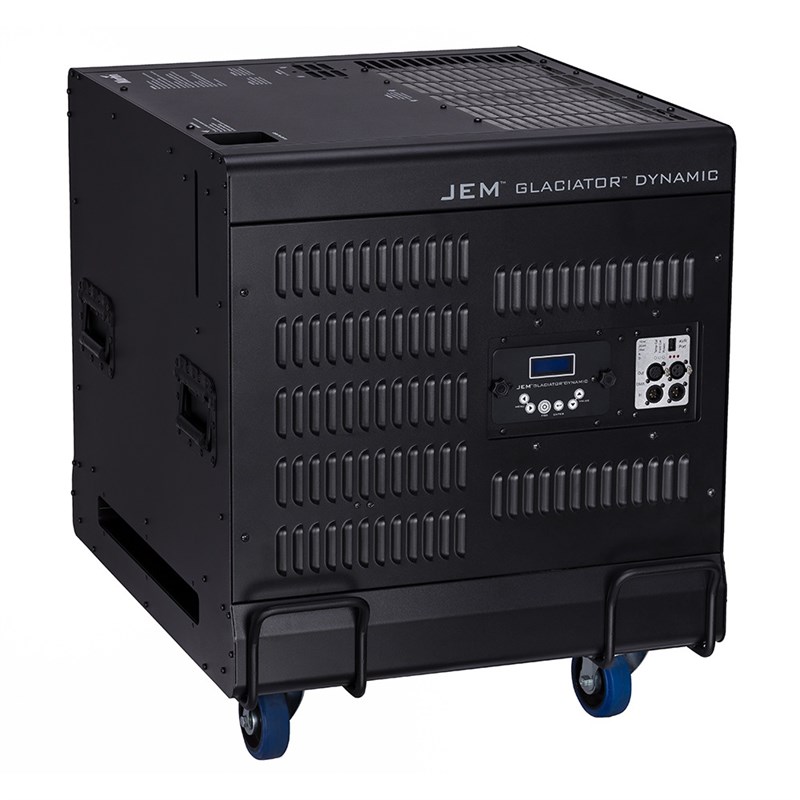

| Physical
Length: 785 mm (30.91 in.)
Width: 648 mm (25.52 in.)
Height: 769 mm (30.29 in.)
Height without castors: 636 mm (25.06 in.)
Weight, dry: 124 kg (274 lb.)
Weight, filled: 129 kg (285 lb.)
Performance
Coverage volume: 80 m3 (2825 ft3) minute
Fluid consumption, continuous maximum output: 70 ml minute
Control and Programming
Control options: Integrated digital remote control, fast access keypad, DMX/RDM, master/slave
Control parameters: Continuous or timer-controlled output
Low-Fog/Fan: Proportionally controlled output, 0-100%

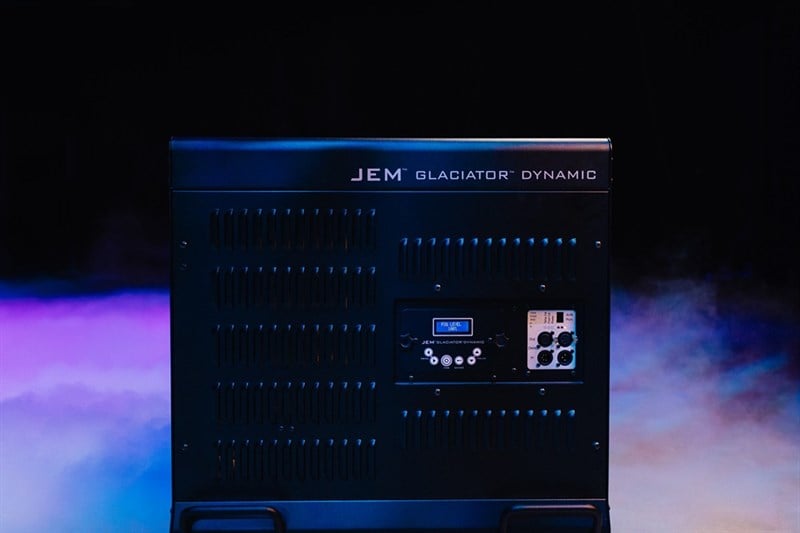

Setting and addressing: Control panel with backlit LCD display and 6-button user interface or via RDM
DMX Channels: 1/2
DMX Compliance: ANSI E1.11 - USITT DMX512-A
RDM Compliance: ANSI/ESTA E1.20 RDM
Construction
Housing: Steel
Color: Black

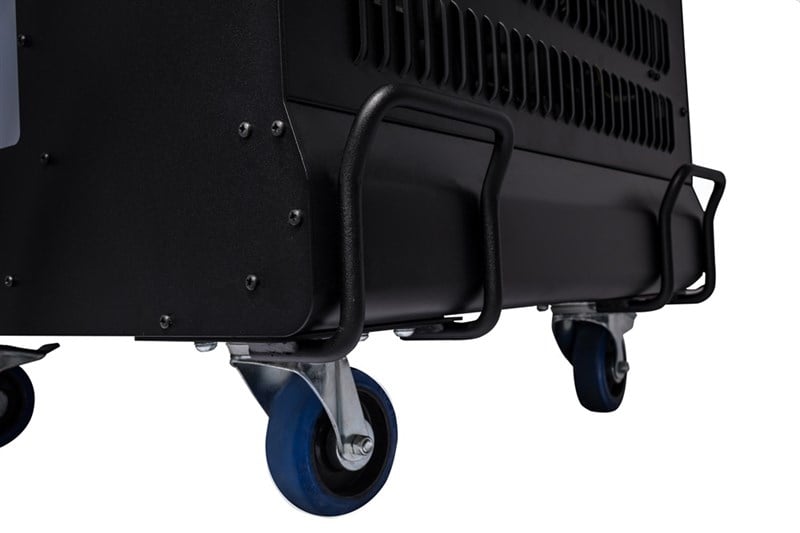

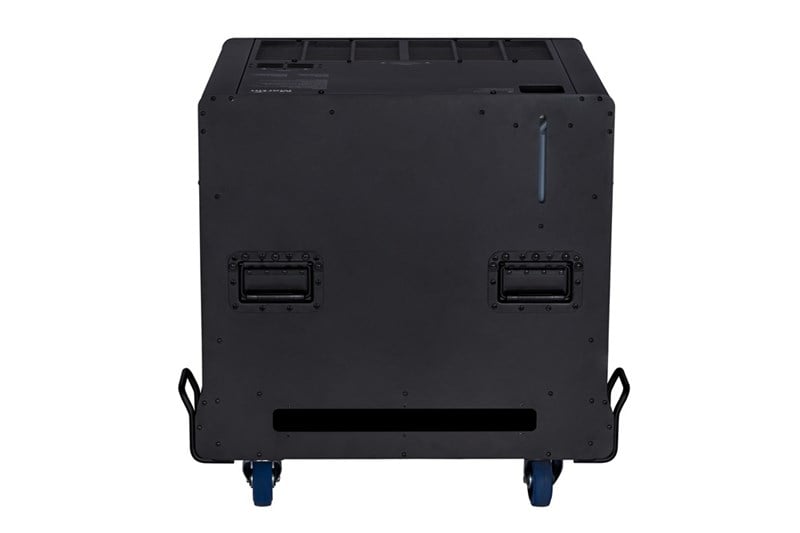

Portability: Removable castors
Protection rating: IP20
Heat exchanger: 2500 W, thermally protected
Fluid pump, low-fog fluid: Oscillating piston, high-pressure
Fluid pump, waste condensate: Peristaltic pump, low-pressure
Fluid management, low-fog fluid: Fluid out sensing, sealed for transportation
Fluid management, waste condensate: Visual sight gauge, LED illuminated reservoir

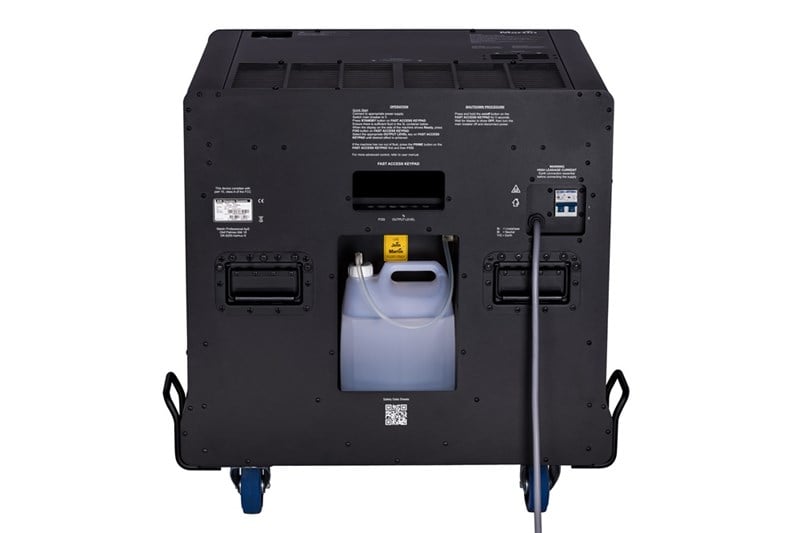

Fluid reservoir, low-fog fluid: 5 l drop-in reservoir w/ quick connect fitting or external source
Fluid reservoir, waste condensate: 0.5 l drop in reservoir w/ quick connect fitting or external source
Refrigeration: Closed loop system, variable speed condenser fans, electronic expansion valve
Refrigeration control: PWM electronic control
Remote control: Integrated digital remote with 5 m (16.4 ft.) cable, 3-pin XLR
Remote control cable length (max.): 25 m (82 ft.)

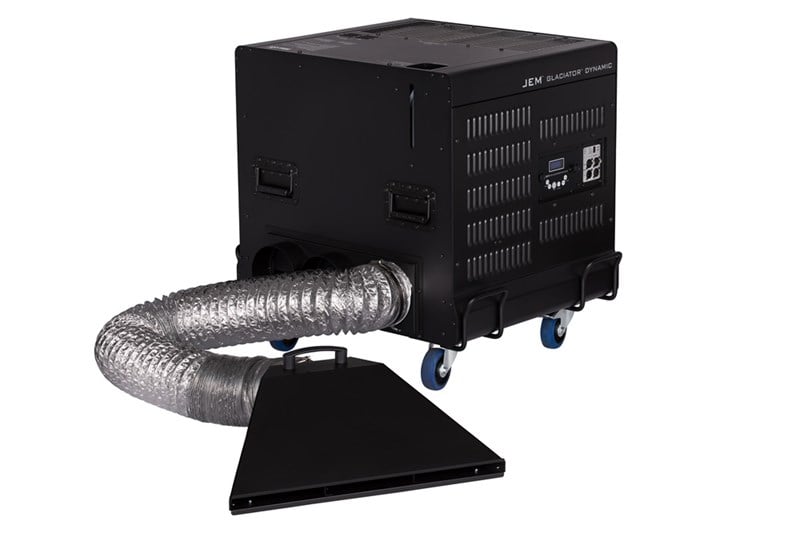

Optional Ducting Kit: Black, steel, triple ducting adaptor with 3x 5 m (16.4 ft.) 150 mm (6 in.)
OD flexible ducting hoses and includes 3x stainless steel duct clamps, worm drive, hex screw
Optional Fog Blade: Black, steel, 150 mm (6 in.) outlet, includes 1x stainless steel duct clamp, worm drive, hex screw

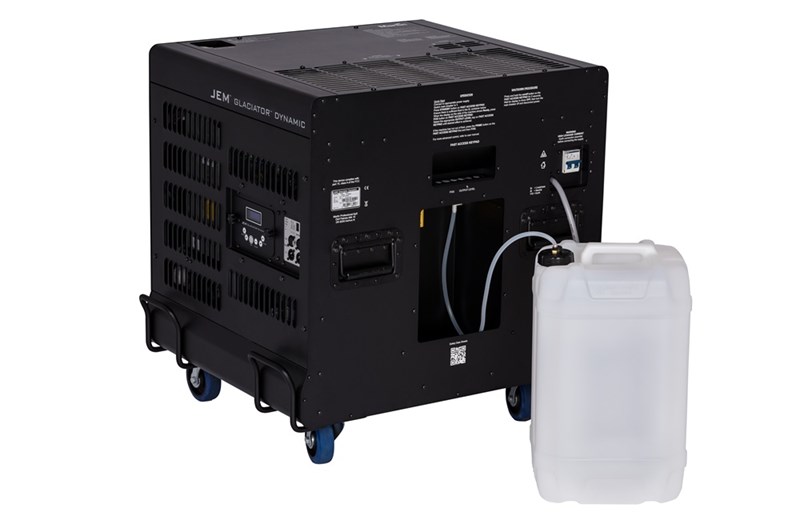

Optional External Fluid Kit: 25 l sealed fluid reservoir, 1.5 m (4.9 ft.) 8 mm OD, 6 mm ID, silicone tubing, pipetta fitting
Optional Softcover: Black, heavy duty PVC external, brushed nylon padding interior,
hook and loop fastener system, 5 in. x 8 in. transparent PAL transit pocket
Installation
Orientation: Horizontal Only
Location: Dry location only
Clearance around machine: 60 cm (24 in.)
Ducting: Optional, max length 10 m (32.8 ft.)
Connections
AC Power: Hardwired flexible mains cable, 3 x 4.0 mm2 (6 AWG), 3.3 m (10.8 ft.)
DMX/RDM in/out: 3- and 5-pin locking XLR
Remote control: 3-pin locking XLR
Firmware: AVR socket
Fluid inlet, low-fog fluid: Brass barbed hose tail, 6 mm
Fluid outlet, waste: Brass barbed hose tail, 6 mm
|
Electrical
AC power: 208 - 250 V single phase, 50/60 Hz
Typical power consumption, standby: 10 W
Typical power consumption, maximum: 3500 W
Power supply unit: Auto-ranging electronic switch-mode
Integrated resettable circuit breaker: 25 A, 240 V max., 50/60 Hz
Half-cycle RMS inrush current at 230 V, 50 Hz: 20 A
Typical Power and Current
208 V, 60 Hz: 3350 W, 17.8 A, PF 0.96*
220 V, 50 Hz: 3350 W, 16.9 A, PF 0.96*
230 V, 50 Hz: 3350 W, 15.6 A, PF 0.96*
240 V, 50 Hz: 3350 W, 15.2 A, PF 0.96*
*Figures are typical, not maximum. Measurements made at nominal voltage, allow for a deviation of +/- 10%.
PF = Power Factor
Thermal
Cooling: Forced air, low noise
Maximum ambient temperature (Ta max.): 35° C (95° F)
Minimum ambient temperature (Ta min.): 5° C (41° F)
Exterior surface temperature, steady state: 30° C (86° F)
Total heat dissipation, idle (calculated, +/- 10%): 2241 BTU/hr.
Total heat dissipation, full load (calculated, +/- 10%): 11430 BTU/hr.
Acoustic
Noise level average, maximum low-fog output: 62.76 dBa
Noise level average, standby: 40.47 dBa
Approvals
EU Safety: EN 60335-1+A11
EU EMC: EN 61000-6-1, EN 62233
EU Immunity: EN 61000-6-1+A1
Included Items
Fluid reservoir 5 l: P/N 34300506
Fluid reservoir 0.5 l: P/N 34300515
JEM Glaciator Digital Remote Control: P/N 92765050
Accessories
JEM Glaciator Dynamic, Ducting Kit: P/N 92625020
JEM Glaciator Dynamic, Fog Blade: P/N 92625025
JEM Glaciator Dynamic, Softcover: P/N 92625030
JEM External Fluid Reservoir Kit, 25 l: P/N 92620035
Approved Fluids
JEM™ Low-Fog Fluid, Quick Dissipating
JEM™ Low-Fog Fluid
JEM™ Low-Fog Fluid, High Density
Martin® Pro-Clean and Storage Fluid
Various sizes available - contact your dealer or see 'Fluids' product pages for details
Service Tools
Epsilon 5 AVR Programmer: P/N 50502004
Temperature Calibration Box: P/N 92620005
Ordering Information
JEM™ Glaciator™ Dynamic: P/N 92210525
Continuous effect output
Ready time (minimum): 5-minutes
Ready time (optimal): 7-minutes
|
