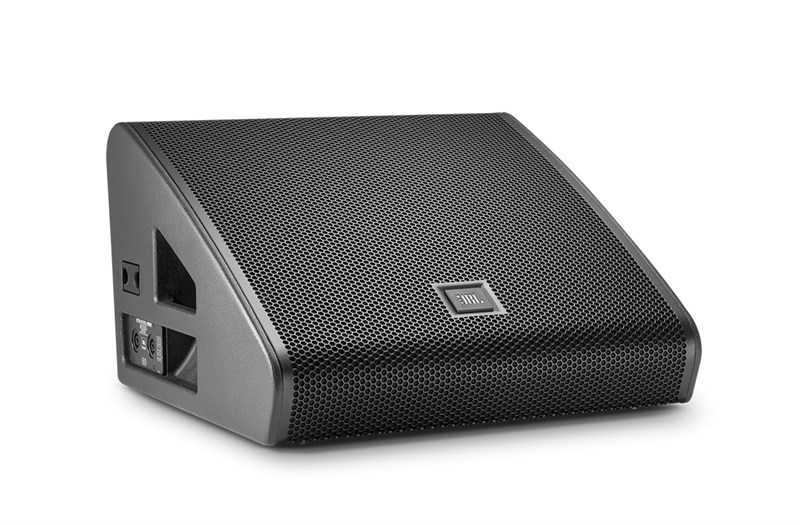

Jbl VTX M20 10 inch 1250 Watt Sahne Monitörü

Marka : Jbl
Fiyat : ₺0,00(KDV Dahil)

Dual 10" Professional Stage Monitor



Jbl VTX M20



Dual 10" Professional Stage Monitor

The VTX M Series dual 10” M20 professional stage monitor features a high performance differential drive woofer and the large-format D2 dual-diaphragm dual voice-coil high frequency driver. The option of Single-Channel (Passive) or Dual-Channel (Bi-Amp) operation modes comes standard, allowing the user to choose the right option for the application, with no compromise in output power or performance. Drawing on JBL’s unique history of sharing technological innovations across product lines, the VTX M Series HF waveguide features Image Control Waveguide Technology, which provides a broad and stable 60H x 60V coverage that delivers maximum gain-before-feedback. All of these premium, tour-ready features are enclosed in a modern, low profile design that is lightweight, ergonomic, and show-ready for even the most high profile concerts or broadcast events. And because VTX M Series is part of the VTX family, it comes fully supported in JBL HiQNet Performance Manager with V5 presets.




Features

Elegant, low profile, compact design suitable for touring and high profile broadcast applications
State of the art JBL transducers, including Differential Drive™ cone transducers and D2 dual diaphragm dual voice coil compression driver
60x60 High Frequency Waveguide featuring JBL's patented Image Control Waveguide Technology
Single-Channel (Passive) and Dual-Channel (Bi-Amp) Operation Modes for maximum flexibility in system configuration and deployment



D2 DUAL DIAPHRAGM DUAL VOICE COIL COMPRESSION DRIVER

The revolutionary D2 Dual Driver dramatically improves the sound and performance of high frequencies, providing an extreme output advantage over conventional systems with significantly higher array power, reduced distortion, double the number of voice coils and more than double the power handling.

This results in a dramatic increase in pure high frequency sound pressure levels in the same physical footprint with a 30% reduction in weight.






DIFFERENTIAL DRIVE® TECHNNOLOGY

Enhanced Performance and Dramatically Reduced Driver Weight
JBL's exclusive dual voice coil, dual magnetic gap Differential Drive technology is at the core of all VTX models, dramatically reducing driver weight while greatly enhancing all critical performance parameters: frequency response, power output and distortion.
LEARN MORE


System Integration and Management

With the VTX Series you are not just using a product, you are gaining access to an expert system.

Tools for system design and all the components to analyze, configure, set up and control a VTX systemare all part of the JBL commitment to total system integration and support. The goal is maximum efficiency andthe highest possible level of performance in any venue, anywhere in the world.






Özellikler

Frequency Range (-10 dB): 55 Hz - 19.5 kHz
Coverage Pattern (-6 dB): Horizontal: 60; Vertical: 60
System Input Power Rating: Passive: 1250 W Continuous (IEC / 100 hour), Active: LF: 1250 W Continuous (IEC / 100 hour), HF: 100 W Continuous (IEC / 100 hour)
Maximum Peak Output: 136dB (Preset: VTX M20 FR)
System Latency: 3.33ms
System Processing: Crown Audio I-Tech HD Series, rown Audio I-Tech 4x3500HD
System Impedance: Passive: 4 ohms, Active: LF: 4 ohms, HF: 8 ohms
Low Frequency Transducer: 2 x 2261H, 254 mm (10 in) diameter, dual 76 mm (3 in) diameter voice coil, NDD®, Direct Cooled™
High Frequency Transducer: 1 x D2430H, D2 dual diaphragm, dual 76mm (3 in) diameter voice coil
Monitor Angle: 30 degrees
Construction: 18 mm, 11-ply Finnish birch plywood
Grille: Powder Coated 14 gauge hex-perforated steel with acoustically-transparent black cloth backing
Input Connectors: Passive: Neutrik® Speakon® NL-4 (4x): Selectable: Pins 1 ± or Pins 2 ±
Active: Neutrik® Speakon® NL-4 (4x): Pins 1 ± (LF) | Pins 2 ± (HF)
Dimensions (H x W x D): 342.9 mm x 575.0 mm x 515.3 mm (13.6 in x 22.6 in x 20.3 in)
Net Weight: 23 kg (51 lbs)



inç
10 inç
Impedance
4 ohm
Aktif-Pasif
Pasif Aktif
