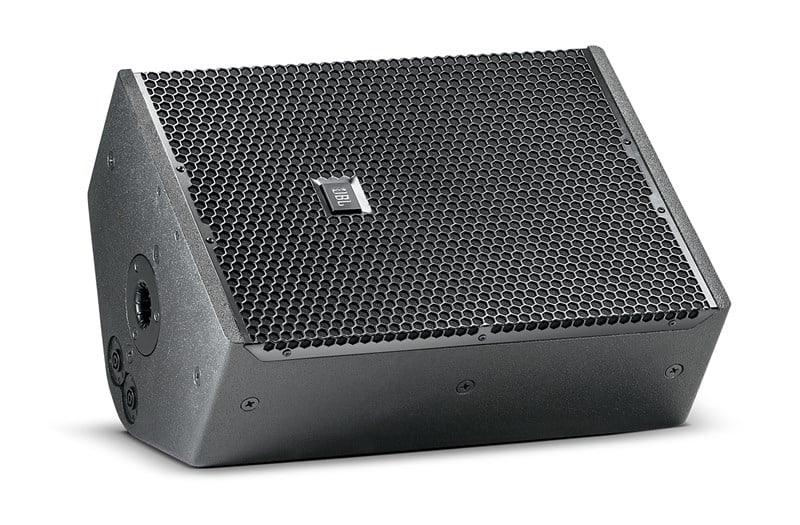

Jbl VTX F15 15 inch 2-Yollu Aktif Sahne Monitörü

Marka : Jbl
Fiyat : ₺0,00(KDV Dahil)

15" Bi-Amplified 2-Way System



Jbl VTX F15 15 inch 2-Yollu Aktif Sahne Monitörü



15" Bi-Amplified 2-Way System

The VTX F series is a line of multi-purpose loudspeakers designed to give sound production companies a variety of flexible options for deploying high-quality audio, either as a stand-alone FOH system, a satellite and subwoofer system (with companion VTX F18S), or on-stage floor monitor and fill speaker.




Features

D2430K D2 Dual Diaphragm Dual Driver
Progressive Transition Waveguide (90° x 50°)
Bi-Amplified 2-Way System
BSS Audio OmniDriveHD V5 Processing
For use with Crown ITechHD and Crown VRack
JBL HiQnet Performance Manager Control™





DIFFERENTIAL DRIVE® TECHNNOLOGY

Enhanced Performance and Dramatically Reduced Driver Weight
JBL's exclusive dual voice coil, dual magnetic gap Differential Drive technology is at the core of all VTX models, dramatically reducing driver weight while greatly enhancing all critical performance parameters: frequency response, power output and distortion.
LEARN MORE


D2 DUAL DIAPHRAGM DUAL VOICE COIL COMPRESSION DRIVER

The revolutionary D2 Dual Driver dramatically improves the sound and performance of high frequencies, providing an extreme output advantage over conventional systems with significantly higher array power, reduced distortion, double the number of voice coils and more than double the power handling. This results in a dramatic increase in pure high frequency sound pressure levels in the same physical footprint with a 30% reduction in weight.
LEARN MORE



System Integration and Management

With the VTX Series you are not just using a product, you are gaining access to an expert system. Tools for system design and all the components to analyze, configure, set up and control a VTX system are all part of the JBL commitment to total system integration and support. The goal is maximum efficiency andthe highest possible level of performance in any venue, anywhere in the world.
LEARN MORE



Özellikler

System Type: 2-Way Premium Multi-Purpose Loudspeaker with 15” Differential Drive® Woofer and D2 Dual Driver
Components: 1 x 2265H 15" Diameter Dual (3 in) Voice Coil, Neodymium Differential Drive®, Direct Cooled™ Transducer, 1 x D2430K D2 Dual Diaphragm Dual Voice Coil Compression Driver
Coverage Pattern: 90 x 50 degrees
Frequency Range (-10 dB): 43 Hz - 21.5 kHz (short throw mode, free field), 42 Hz - 21.5 kHz (monitor mode, half-space)
Frequency Response (+/-3 dB): 59 Hz – 20 kHz (short throw mode, free field), 58 Hz - 20 kHz (monitor mode, half-space)
Sensitivity (1W/1m): 98 dB LF, 108 dB HF
Nominal Section Impedances: 8 ohms LF, 20 ohms HF
Transducer Power Rating(AES 2 hour): 1000W LF, 200W HF cont, 4000W LF, 800W HF peak
Dimensions (W x H x D) Vertical cabinet orientation: 640.1 x 457.2 x 327.7 mm (25.2 x 18 x 12.9 in)
Weight: 22.9 kg (50.5 lbs)



Ayrıntılı Bilgi

inç
15 inç
Impedance
8 ohm
Aktif-Pasif
Aktif
