Marka : Jbl
Fiyat : ₺0,00(KDV Dahil)

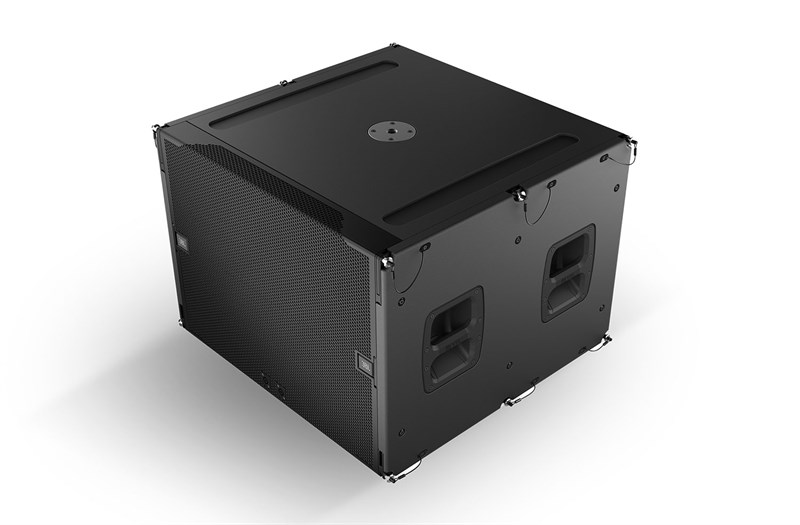

The VTX B18 is JBL Professional’s next-generation single 18” subwoofer, designed to complement VTX full-range sound reinforcement systems.



Jbl VTX B18



Single 18” Subwoofer

The VTX B18 is JBL Professional’s next-generation single 18” subwoofer, designed to complement VTX full-range sound reinforcement systems. The VTX B18 features JBL’s new 2288H 18” woofer, engineered for improved linearity, increased sensitivity and extra-long excursion. The 2288H is based on JBL’s Differential Drive, dual voice coil, dual-gap technology, which delivers better heat dissipation, lower power compression and wider dynamic range than conventional single-coil designs. The B18 incorporates JBL’s patented Slip Stream™ double-flared exponential low-frequency port design to improve airflow and reduce audible turbulence, even at maximum excursion. The B18 shares the industrial design of the JBL’s VTX A-Series products and has the same width and suspension hardware as the VTX A8, allowing the two products to be used together in a variety of flown or ground-stacked configurations. The VTX B18 can be deployed in omni-directional or cardioid configurations, in arrays of up to 16 enclosures.




Features

New JBL 2288 transducer offers increased sensitivity, lower distortion and improved linearity
JBL SlipStream™ double-flared exponential ports for reduced noise and air turbulence
Built-in, easy to use, spring-loaded rigging system
Support for omnidirectional and cardioid array configurations
Front and rear NL4 connectors streamline cable management
Channel-selection switch minimizes wiring requirements
Mechanically compatible with the VTX A8 and all A8 suspension accessories
Full integration with JBL system prediction and control software
Comprehensive mounting accessories expand configuration options Compact design



Included:

Frequency Response (-10dB) 28Hz - 80Hz (Preset: VTX B18 80)
Coverage Pattern Omni-directional or Cardioid
Max SPL 135dB (Preset: VTX B18 80)
System Processing Crown Audio I-Tech 12000HD, Crown Audio I-Tech 4x3500HD
IP Rating IP55 (IEC 60529)
Dimensions (H x W x D) 551.68mm x 761.29mm x 736.6mm, 21.72in x 29.97in x 29.0in
Weight 68 kg (150 lbs)
