Jbl VTX-A12W 2x12 inch Line Array Kabin

Marka : Jbl
Fiyat : ₺0,00(KDV Dahil)

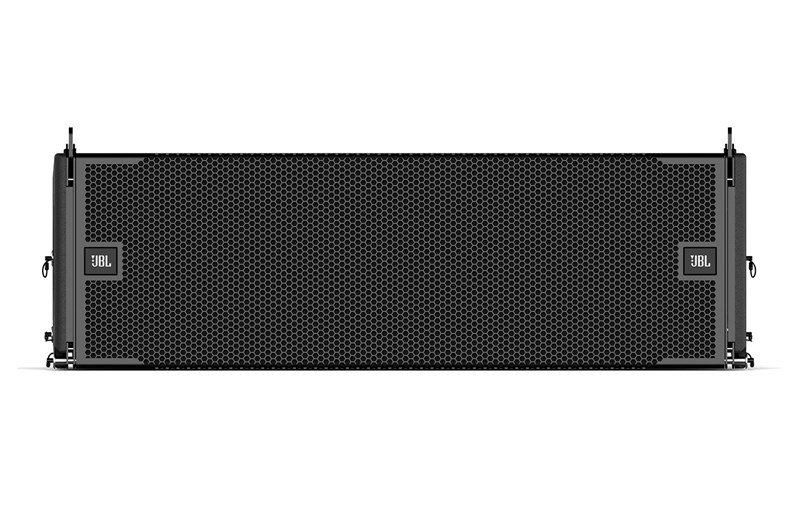

Dual 12” Line Array Loudspeaker with 120-degree Dispersion



Jbl VTX-A12W 2x12 inch 8 ohm Line Array Kabin



Dual 12” Line Array Loudspeaker with 120-degree Dispersion

The JBL A Series is a complete tour sound solution for mid- to large-size touring applications and high-end fixed installations. JBL VTX A12W was designed to address the requests from rental companies, FOH engineers and tour sound production crews who appreciated the advances introduced in the VTX A12, but needed wider horizontal coverage for their applications. Like the VTX A12, next-generation JBL transducer technology and a high-frequency waveguide design deliver unmatched performance, sensitivity and coverage—and now a 120-degree dispersion pattern ensures coverage for a variety of applications. VTX A12W features the same patented JBL rigging mechanism and redesigned suspension system to streamline deployment and setup, and can be flown independently or in mixed configurations with the VTX A12. Plus, VTX A12W retains the same physical design, compact size and reduced weight found in the original A12. The JBL A Series isn’t just a superior line array—it’s a completely new way to approach tour sound.

120-degree dispersion pattern for wide horizontal coverage
New and improved JBL transducers for the best output per weight
Innovative HF section integrates the phasing plug and waveguide for high sensitivity and linearity even at high output levels
Redesigned Radiation Boundary Integrator® (RBI) for reduced horn edge diffraction, improved LF sensitivity, lower distortion and 120-degree coverage down to 250 Hz
Next Generation LF section, including industry-defining Differential Drive woofers, with a dual magnet, dual voice-coil design for extended linear excursion
Best-in-class rigging for streamlined, rapid deployment
Full-face grill for superior weatherization and refined aesthetics
New transport cart and frame for simplified transport and setup
Optimizations throughout the design for space efficiency and reduced weight while simultaneously improving performance
Full integration with JBL system control and prediction software
Lightweight design
Fully compatible with VTX A12




Özellikler

Frequency Range (-10 dB) 46 Hz - 19 kHz (Preset: VTX A12W)
Coverage Pattern (-6dB) Horizontal = 120 degrees nominal (250Hz - 16kHz)
Vertical = Varies with array size and configuration
Maximum Peak Output *2 146dB (Preset: VTX A12W)
System Processing Crown Audio I-Tech 12000HD
Crown Audio I-Tech 4x3500HD
Low Frequency 2 x JBL 2264H, 12in diameter, dual 3in diameter voice coil, Neodymium Differential Drive
Mid Frequency 4 x JBL 2165H, 5.5in diameter, dual 2in diameter voice coil, Neodymium Differential Drive
High Frequency 3 x JBL 2423K, 2in diameter annular diaphragm, 2in diameter voice coil, Neodymium Magnet
Dimensions (H x W x D) 330.2mm x 1.118mm x 495.3mm, 13.0in x 44.0in x 19.5in
Net Weight 60.8 kg (134.0 lbs)



Kullanma Kılavuzu

inç
12 inç
Impedance
8 ohm
Aktif-Pasif
Aktif
