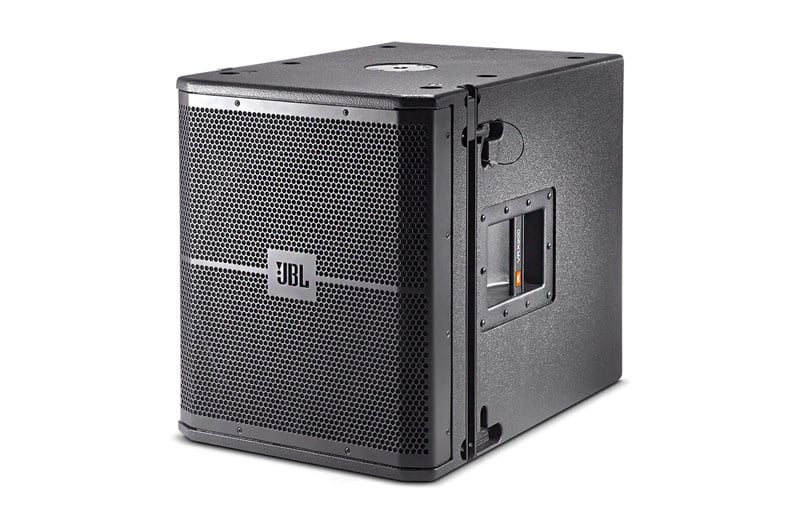

Jbl VRX915S 3200W Pasif Subwoofer Kabin Hoparlör
15 in. Bass Reflex Subwoofer
The VRX915S is a compact, high power suspendable subwoofer system containing a 2265G-1 neodymium magnet, patented Differential Drive®, 15" woofer in a front-loaded, vented enclosure.
Integral rigging hardware for simple connection of VRX915S line-arrays and optional array frame.
15 inch, 2265G-1 Differential Drive® woofer for extended low-frequency output.
Light and compact for versatility and easy handleability.
20 mm threaded pole socket for solid, secure satellite speaker mounting.
Live performance systems.
Mobile and fixed DJ systems.
Sound system rental and tour.
Permanent installations.
Power Rating 800 W / 1600 W / 3200 W
Frequency Range 35 Hz - 250 Hz (-10 dB)
Dimensions
(H x W x D) 496 mm x 420 mm x 597 mm
(19.5 in x 16.5 in x 23.5 in)
Frequency Response 40 Hz - 250 Hz (+/-3db)
System Maximum SPL 126 dB SPL
System Sensitivity (1w @ 1m 91 dB SPL
LF Driver 1 x JBL 2265G-1, 250 mm (15 in) Differential Drive® woofer
Nominal Impedance 4 Ohms
Active Tunings Tunings available at www.jblpro.com
Enclosure 15 mm - 18 mm, multi ply birch plywood
Suspension / Mounting Top mounted M20 threaded socket for optional pole SS4-BK. Integrated flying hardware for use with array frame VRX-SMAF. 8 M10 fittings. Optional M10 eyebolt kit.
Finish Black DuraFlex™ finish
Grille Power coated, black, 16-gauge perforated steel with with acoustically transparent black foam backing.

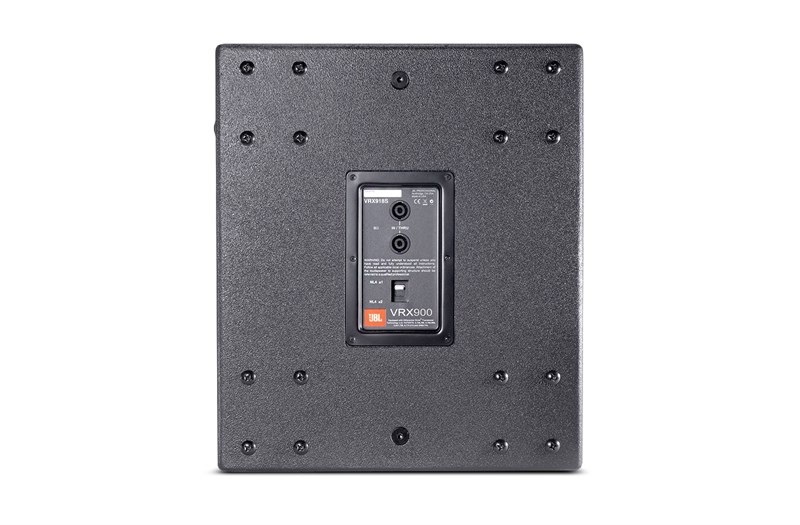

Input Connectors Switchable, +1/-1 or +2/-2
Net Weight 26.3 kg (58 lb)
