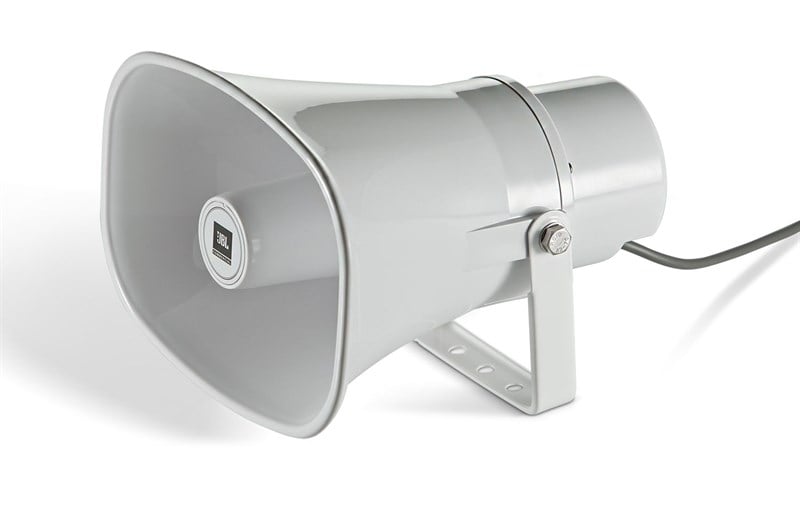

Jbl CSS-H15 15 Watt Horn Hoparlör
15 Watt Paging Horn
The Commercial Solutions Series CSS-H15 Paging Horn provides excellent voice range clarity for public address systems, announcement/paging, intercom, security, alarm and industrial applications. Designed for demanding environmental conditions, the CSS-H15 is highly weather resistant (IP-65 rated) so it can be used in either indoor or outdoor applications. The wide coverage pattern allows the horn to cover a larger audience area than is the case with many paging horns.
Excellent voice range clarity for announcement and paging.
High sensitivity delivers high sound levels with minimal power amplification.
Wide 70° horizontal by 90° vertical coverage for medium throw applications.
Phenolic diaphragm driver for outdoor durability and high reliability.
UL-registered 15-watt multi-tap transformer, with 8 ohm direct bypass.
Built-in high-pass filter enhances reliability by protecting against low frequency damage.
Highly weather-resistant, with stainless steel bracket and hardware.
Public Access Areas
Warehouses
Factories
Schools
Recreational Facilities
Commercial Buildings
Distribution Centers
Civic Centers
Other Commercial Sound and Protective Signaling Systems
Frequency Response (-10 dB) 400 Hz – 7.5 kHz
Coverage Pattern 70° horizontal by 90° vertical (at 2 kHz and averaged 1 kHz – 4 kHz)
Included High-Pass Filter Passive 350 Hz high-pass filter built-in to protect against damage from frequencies below operational range.
Directivity Factor (Q) 10.9 (2 kHz)
Directivity Index (DI) 10.4 (2 kHz)
System Power Rating 15 W (60 W peak), 100 hrs
Sensitivity (1W, 2.83V@ 1m) 105 dB, ave. 1 kHz – 6 kHz; 111 dB at 2 kHz
Maximum SPL (1m) 117 dB cont ave. (123 dB peak), 1 kHz – 6 kHz;
123 dB cont ave. (129 dB peak), 2 kHz, 15W input,
8 ohm setting
Nominal Impedance 15W/70V, NC/100V tap: 333 ohms
7.5W/70V, 15W/100V tap: 667 ohms
3.8W/70V, 7.5W/100V tap: 1333 ohms
1.9W/70V, 3.8W/100V tap: 2666 ohms
0.9W/100V, 1.9W/100V tap:5332 ohms
8 ohms at 8 ohm direct setting
Transformer Taps 70V: 15W, 7.5W, 3.8W, 1.9W. 0.9W
100V: 15W, 7.5W, 3.8W, 1.9W
Full-Range Driver 33 mm (1.3 in) diameter with phenolic diaphragm
Horn Material ABS
Mounting Hardware Stainless steel powder-coated U-bracket (yolk) with 3 x 8.8 mm (0.34 in) dia mounting holes, stainless steel exterior hardware.
Color RAL9016 (horn and bracket)
Input Connection 300 mm (12 in) pigtail to bare wire; entrance via watertight fitting. Wire colors: red = positive (+); black = negative (-).
Environmental IP-65 rating per IEC529, salt spray per B117, stainless steel U-bracket and exterior hardware.
Safety Agency Ratings Transformer UL Registered per UL1876 “Isolating Signal and Feedback Transformers for Use in Electronic Equipment”
Dimensions (H x W x D) 163 x 222 x 232 mm (6.5 x 8.8 x 9.2 in) horn
181 x 222 x 232 mm (7.1 x 8.8 x 9.2 in) including mounting bracket. Depth excludes cable exit.
Weight (ea) 3.0 lb/1.36 kg
Shipping Weight (ea) 3.7 lb/1.68 kg
Included Accessories Stainless steel mounting bracke
