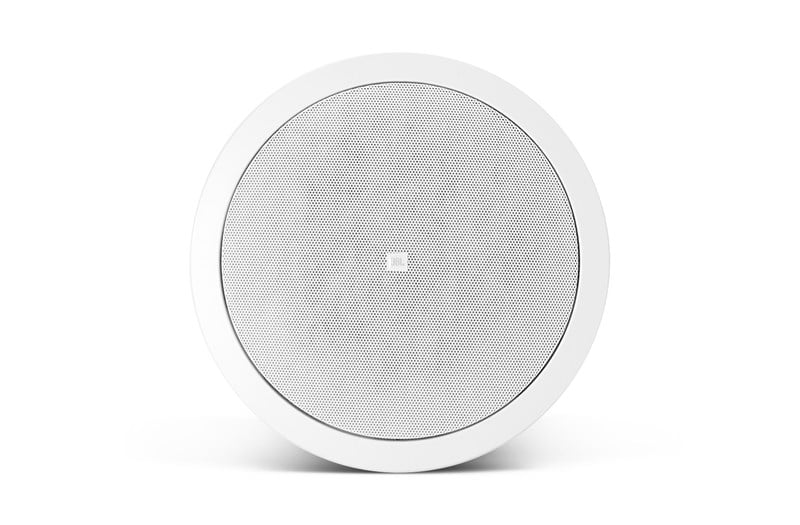

Jbl CONTROL 26CT 6.5 inc 70/100V 75/150W Tavan Hoparlörü
6.5" Ceiling Loudspeaker Transducer Assembly
The Control 26CT is a powerhouse ceiling speaker containing a coaxially mounted 6.5" woofer and 3/4" titanium-coated tweeter, able to deliver maximum sound level over a wide coverage area. The Control 26CT includes a multitap transformer for a 70V or 100V line distribution system.
Coaxially mounted 165 mm (6.5 in) woofer with butyl rubber surround and 19 mm (.75 in) titanium coated
High power, wide frequency response and low distortion for high sound level capability.
Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking.
Frequency Range 75 Hz - 20 kHz
Power Capacity 150 W Continuous Program Power; 75 W Continuous Pink Noise
Transformer Taps 70 V: 60 W, 30 W, 15 W, & 7.5 W
Nominal Coverage Angle 110°
Directivity Index (DI) 4.6 dB
Rated Maximum SPL 106 dB SPL @ 1m (3.3 ft)
Low Frequency 165 mm (6.5 in)
High Frequency 19 mm (.75 in) titanium
Terminations Screw locking barrier strip
Dimensions (H x Dia) 210 mm x 252 mm (8.3 in x 9.9 in)
Net Weight (ea) 4.2 kg (10 lbs)
Shipping Weight (pair) 9.7 kg (21 lbs)
