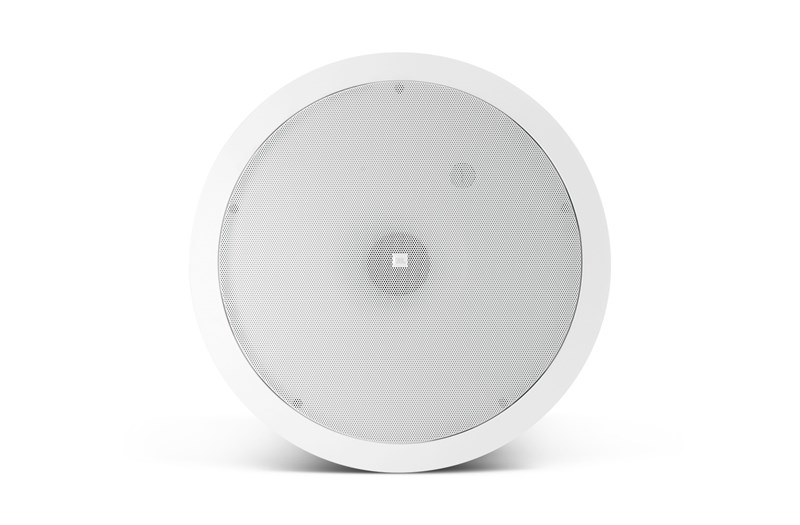

Jbl Control 19 CS Subwoofer Tavan Hoparlörü
Jbl Control 19 CS Subwoofer Tavan Hoparlörü
Jbl Control 19 CS Subwoofer Tavan Hoparlörü
Jbl Control 19 CS Subwoofer Tavan Hoparlörü

Jbl Control 19 CS 1.5 inch 200 Watt Kapasite 8 ohm Tavan Hoparlörü

Marka : Jbl
İndirim Oranı : %30 İndirim
Fiyat : ₺23.560,46(KDV Dahil)
İndirimli : ₺16.492,33(KDV Dahil)
₺3.099,46 'den başlayan taksitlerle

In-Ceiling Subwoofer



Jbl Control 19 CS 1.5 inch 200W 8 ohm Tavan Hoparlörü



The Control 19CS uses advanced proprietary technologies to produce powerful bass from a low profile in-ceiling design.
Unique Nested Chamber™ design and Linear Dynamic Aperture™ port design delivers high output from a compact enclosure.
JBL’s exclusive SonicGuard™ overload protection allows higher operational levels and improved system reliability.
Component: Long excursion 200 mm (8 in) driver.
Packaged with grille, backcan and tile rails for fast installation and easy stocking.
Simple installation and wire connection method.



Özellikler

Frequency Range 42 Hz - 200 Hz
Power Capacity 200 W Continuous Program Power
Nominal Sensitivity 95 dB SPL, 1W @ 1 m (3.3 ft) in ceiling near corner (π/2) 89 dB SPL, 1W @ 1 m (3.3 ft) in center of ceiling (2π)
Nominal Coverage Angle 180° conical coverage
Rated Maximum SPL 115 dB @ 1 m (3.3 ft) in ceiling near corner (π/2)
Nominal Impedance 8 ohms
Low Frequency 200 mm (8.0 in) Polypropelene cone.
38 mm (1.5 in) coil on aluminum former
Enclosure Material Backcan: Formed steel Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0
Overload Protection Full-range power limiting to protect network and transducers. (On Control 19CS, not on Control 19CST)
Terminations Removable locking connector with screw-down terminals. 2 input terminals and 2 loop-thru output terminals. Max. wire size 12 AWG (2.5 mm2)
Safety Agency Rating In accordance with IEC60849 / EN60849. Suitable for use in air handling spaces, per U.L.-2043, U.L.-1480, NFPA90, NFPA70A.
Outside Dimensions (H x Dia) 345 x 345 mm (13.6 x 13.6 in) 318 mm (12.5 in) front of ceiling tile to back of backcan
Cutout Size (H x W) 305 mm (12.0 in)
Net Weight (ea) 5.5 kg (12 lb)
Shipping Weight (pair) Control 19CS: T12.7 kg (28 lb)
Control 19CST: 14.3 kg (32 lb)
Included Accessories C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector



inç
1.5
Impedance
8 ohm
Tavan
Sıva Altı Subwoofer
