Jbl AWC62 6,5 inç Dört Mevsim Kompakt Çift Yönlü Koaksiyel Hoparlör
Jbl AWC62 6,5 inç Dört Mevsim Kompakt Çift Yönlü Koaksiyel Hoparlör
Jbl AWC62 6,5 inç Dört Mevsim Kompakt Çift Yönlü Koaksiyel Hoparlör

Jbl AWC62 6,5 inç Dört Mevsim Kompakt Çift Yönlü Koaksiyel Hoparlör

Marka : Jbl
İndirim Oranı : %35 İndirim
Fiyat : ₺75.480,00(KDV Dahil)
İndirimli : ₺49.062,00(KDV Dahil)
₺9.220,39 'den başlayan taksitlerle

All-Weather Compact 2-Way Coaxial Loudspeaker with 6.5" LF 120 Watt 70V / 100V



Jbl AWC62 6,5 inç Dört Mevsim Kompakt Çift Yönlü Koaksiyel Hoparlör



Yüksek ses kalitesi ve en uygun fiyatıyla Jbl marka AWC62'yi medumuzikmarket.com adresinden satın alabilirsliniz.

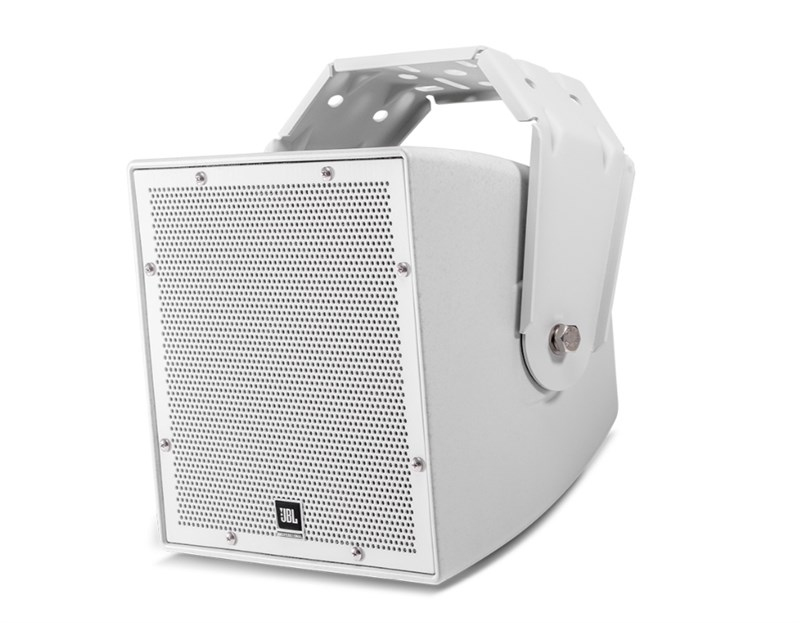

The AWC62 is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system which is ideal for speech and music-fill in a wide variety of applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/paging systems, swimming pools, and a wide variety of other outdoor or indoor venue types.





Features

Highly weather-resistant IP56 rating.
Consistent 110° x 110° broadband pattern control.
Components:
165 mm (6.5 in) woofer with Kevlar-reinforced cone and 38 mm (1.5 in) voice coil.
25 mm (1 in) exit compression driver
Extraordinary clarity for speech, with extended frequency response for music.
Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
175 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability.
High-power passive crossover network.
Overload protection.
70 Hz – 18 kHz frequency response.
120 Watt 70V/100V multi-tap (built-in transformer) or direct 8Ω low-impedance.



 Specifications

Frequency Range (-10dB) 70 Hz – 18 kHz
Frequency Response (±3 dB) 100 Hz – 16 kHz
Coverage Pattern 110º x 110º
Directivity Factor (Q) 7.2 (1 k – 16 kHz)
Directivity Index (DI) 7.9 dB (1 k – 16 kHz)
Long-Term System Power Rating (IEC) 175 W 2 hrs.120 W 100 hrs
Sensitivity (2.83V @ 1m) 92 dB (Ave. 100 Hz – 18 kHz)
Maximum SPL Direct 8Ω: 114 dB (peaks of 120 dB)120 W Tap: 112 dB
Crossover Network 1.8 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 3rd order low-pass to LF
Nominal Impedance     8 ohms
Transformer Taps 70V: 120W, 60W, 30W, 15W 100V: 120W, 60W, 30W
Low Frequency Driver Kevlar-reinforced cone with weather treatment, 38 mm (1.5 in) voice coil.
High Frequency Driver 25 mm (1 in) diaphragm and voice coil diameter
HF Driver Protection Minimum audibility SonicGuard™ HF overload protection
Enclosure ABS with Glass enclosure
Attachment wo M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.
Grille Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3-layer assembly with foam and woven poly mesh backing.
Input Connection CE-compliant covered barrier strip terminals. Barrier terminals accept up to 8 mm outside 4 mm inside open-lug (#6 or #8) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with round- jacketed cables with outside diameters between 4.0 mm (0.16”) and 9.0 mm (0.36”).
Environmental IP56 per IEC529, with a minimum 5° downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray (168 hrs).
Dimensions 259 x 259 x 255 mm (10.2 x 10.2 x 10.1 in), cabinet 288 mm (11.4 in) including gland nut 309 mm (12.2 in) including bracket extending to back
Colors Available in gray (similar to Pantone 420C) and black (-BK)
Net Weight 6.8 kg (15.0 lb), 7.7 kg (17.0 lb) with U-bracket
Shipping Weight 8.8 kg (19.5 lb)
Included Accessories U-bracket, matches loudspeaker color (gray or black), zinc-rich extra thick powder coated, steel.



Impedance
8 ohm
inç
6.5 inç
Projektör Hoparlör
Çift Yönlü
