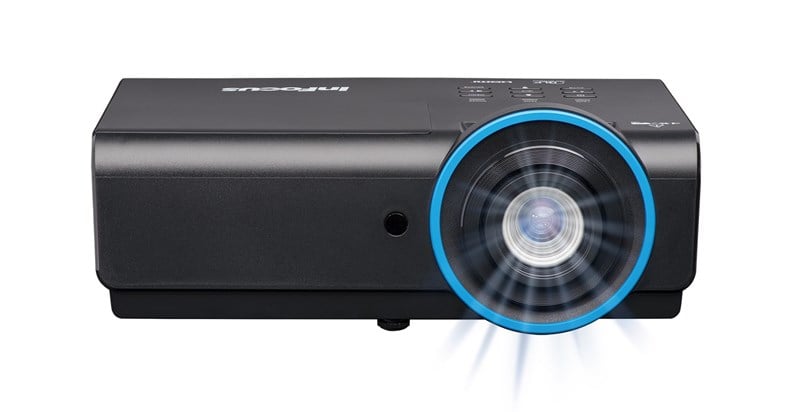

InFocus IN-3146 5000 Lümen 1280x800 3D HDMI DLP Projeksiyon
Resolution — Native WXGA (1280 x 800)
Display Technology DLP
Video Standard Compatibility NTSC, NTSC 4.43, PAL, PAL-M, PAL-N, SECAM, 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Speakers Mono 10W x 1
Lamp Brightness 5,000 lumens
Lamp Brightness — Eco Mode 4,000 lumens
Lamp Life 3,500 hours
Lamp Life — Low Power 4,500 hours
Lamp Life — Dynamic Mode 6,000 hours
Lamp Power 310W
Lamp Power — Low Power 245W
Lamp Power — Dynamic Mode 93W
Replacement Lamp SP-LAMP-098
Contrast Ratio 16,000:1
Color Wheel 6 segments
Number of Colors 16.7 million
Synch Scan Frequency — Horizontal 15 - 91,4 KHz
Synch Scan Frequency — Vertical 24 - 30 KHz
Aspect Ratio 16:10
Aspect Ratio Compatibility 4:3, 16:9, 2.35:1
Projection Distance — Minimum 1 m
Projection Distance — Maximum 10 m
Projection Lens F-Stop — Minimum 2.42
Projection Lens F-Stop — Maximum 2.97
Lens Type Manual zoom and focus
Image Size — Minimum 25 in
Image Size — Maximum 318 in
Projection Offset 11 %
Keystone Correction +/-40 °
Connectors — Inputs 3.5mm microphone line in, 3.5mm audio, HDMI ×2, Composite video, S-video, VGA x2, RCA L/R audio, USB mini (for service)
Connectors — Outputs 3.5mm audio output, VGA, USB-A 5V1.5A, 12V Screen trigger
Control RS232, RJ-45
Audible Noise < 32 dBA at 0°F / -17.8°C
Audible Noise — Eco Mode < 30 dBA at 0°F / -17.8°C
Included Accessories Power cord, Remote, VGA cable, Documentation, Quick Start Guide, User Manual (CD)
Power Consumption 410.0W max
Power Consumption — Eco Mode 320.0W max
Power Consumption — Dynamic Mode 93.0W max
Power Standard AC 100 to 240V, 50/60
Operating Conditions 41 to 104°F at 2500 to 10000 ft / 5 to 40°C at 762 to 3048 m
Throw and Zoom
Throw Ratio — Minimum 1.46:1
Throw Ratio — Maximum 2.20:1
Zoom Ratio 1.5:1
Shipping
Product Dimensions 5 x 12.4 x 8.5 in / 127 x 315 x 215.9 mm
Product Weight 6.9 lbs / 3.1 kg
Shipping Dimensions 8.2 x 15.4 x 14.5 in / 208.3 x 391.2 x 368.3 mm
Shipping Weight 10.3 lbs / 4.7 kg
Gerçek Çözünürlük
1280x800
