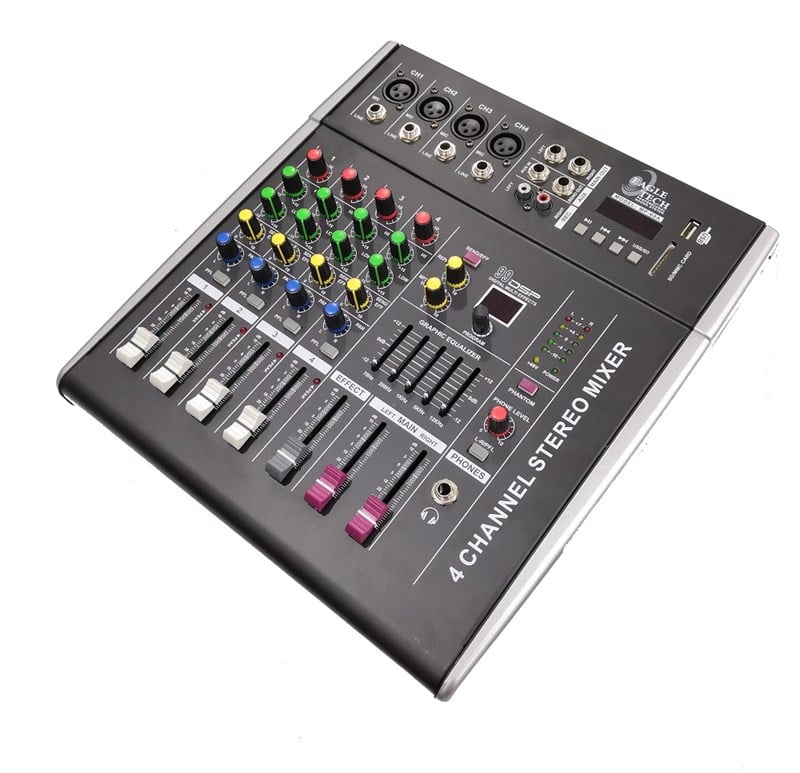

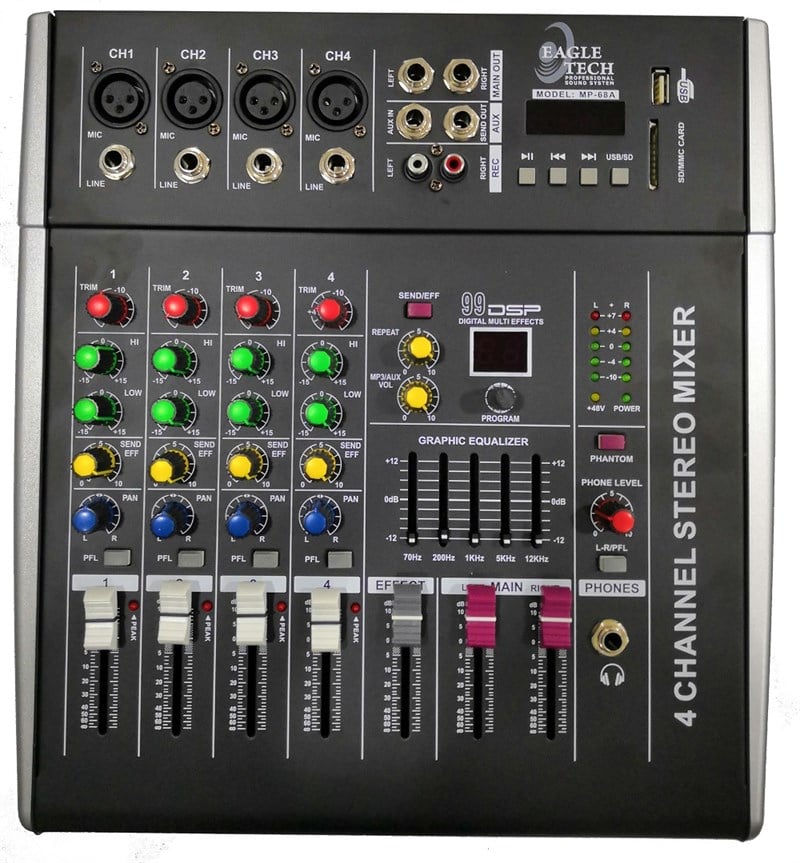

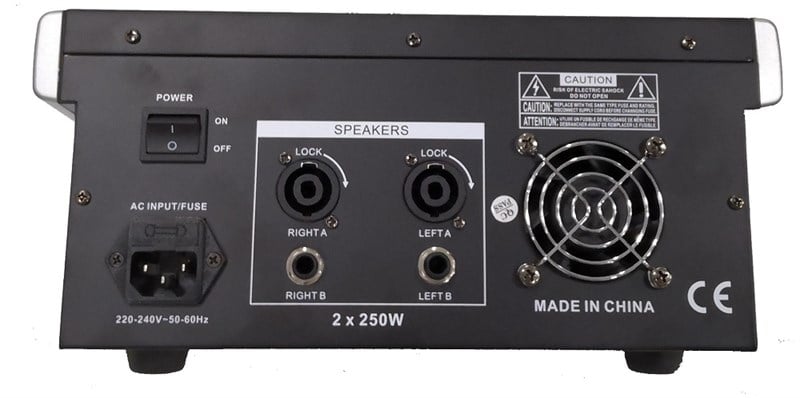

Eagletech MP-68A 2x250 Watt 4 Kanal Power Mikser
Mic Input: Electronically Balanced, Discrete input configuration
Band Width: 10 Hz to 60 kHz ±3dB
Distortion(THD&N): 0.01% at +4dBu, 1kHz, Bandwidth 80 kHz
-129.5dBu, 150 Ohm source
-117.3dBqp, 150 Ohm source
-132.0dBu, input shorted
-122.0dBqp, input shorted
Trim Range: +10 to 60dB
Line input: Electronically balanced
Bandwidth: 10Hz to 60 kHz±3dB
Distortion(THD&N): 0.01% AT +4DbU, 1KhZ, Bandwidth 80 kHz
Line Level Range: +10dBu to 4dBu
Equalization
Hi Shelving: 12 kHz+/-15dB
Mid Range: 2.5kHz+/-15dB
Low Shelving: 80Hz+/-15dB
Master Mix Section
Max Output: +22dBu Balanced
Aux Send Max Out: +22dBu Unbalanced
Control Room Out: +22dBu Unbalanced
Signal To Noise Ratio: +112dB, all channels at Unity Gain
Power Supply
Main Voltages: ~120V AC, 60 Hz,
(Optional) "~240V AC, 50 Hz
"~220V AC, 50Hz
