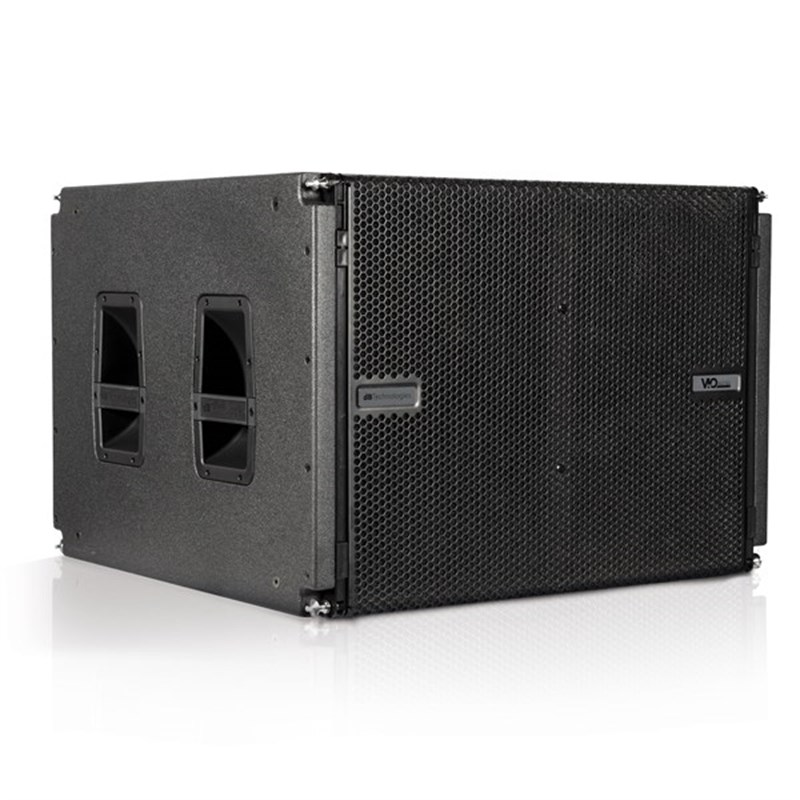

dB Technologies VIO S 118 18 inç Aktif 3200W Peak SubBass
Amplifier
Amp TechnologyDigipro® G4
Amp ClassClass D
RMS Power 1600 W
Peak Power 3200 W
CoolingConvection
Power Supply 1600 W with PFC
Processor
ControllerDSP 32
AD/DA Converter24 bit 96 kHz
LimiterRMS, Peak, Thermal
Delay Option0-9.9 ms internal
Steps of 0.1 ms
Crossover Frequency LF-HF60-110Hz + Full range
LF-Xover out slope24 dB/Octave
Input
Signal Input 1xXLR balanced
Signal Output 1x XLR balanced (link or X-over)
1xRJ45 LINK (RDNet)
Expansion Card1xRJ45 IN (RDNet)
1xRJ45 LINK (RDNet)
Power Socket 1xPowerCON TRUE1 IN
1xPowerCON TRUE1 OUT
Controls1x Input Attenuation Rotary Switch
1x Rotary Encoder (Delay 9.9 ms)
1XPolarity Inversion Switch (0° or 180°)
1xCardioid Mode Switch
1x X-Over Freq Switch (60-110 Hz + Full Range
1x System Auto-test
Mechanics
HousingMultiplex plywood
Polyurea painted
Handles2x Per Side
Aluminium
Pole MountM20 Thread
RaincoverIncluded
Rigging Points 2xPick Points on top to fix DRK-210 rigging frame (stack use)
4x Pick Points on top and 4x on bottom for rigging
Width720 mm (28.34 in)
Height520 mm (20.47 in)
Depth695 mm (27.36 in)
Weight45.1 kg (99.42 lbs)
