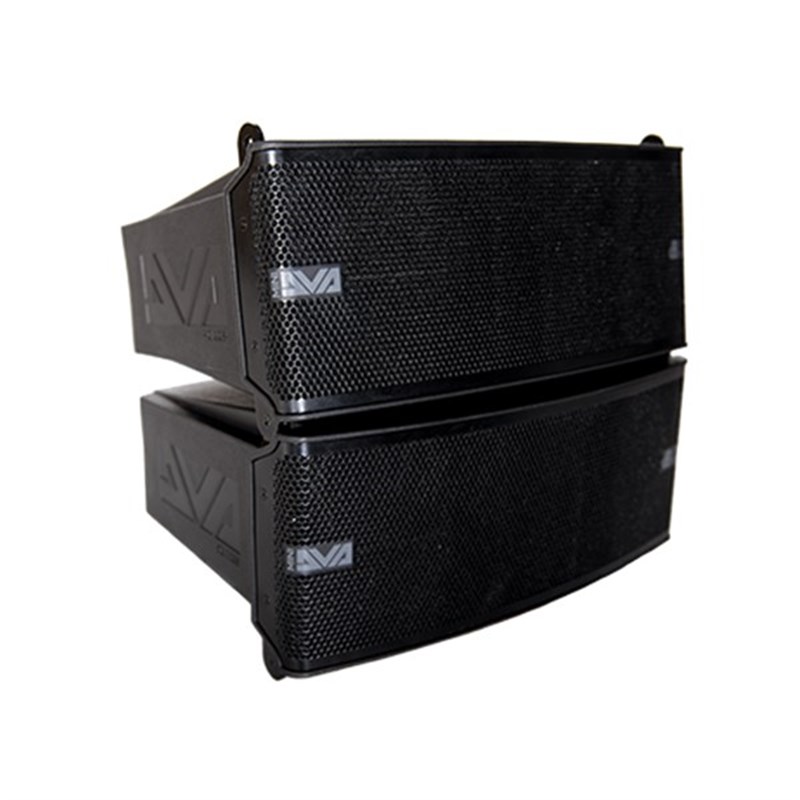

dB Technologies M2M+DVA M2S Line Array Aktif Kabin Hoparlör
Technical Data
Speaker Type M2M2-Way Active Master Line Array Module
Speaker Type M2S2-Way Slave Line Array Module
Acoustical data
Frequency Response [-6dB]78 - 19.000 Hz
Frequency Response [-10dB]68 - 20.000 Hz
Max SPL126 dB per unit
HF2x1"
Type HFNeodymium
Voice Coil HF1"
LF2x6.5"
Type LFNeodymium
Voice Coil LF1.5"
Directivity90x15°
Amplifier
Amp TechnologyDigipro® G3
Amp ClassClass D
RMS Power HF Amp200 W (100 W + 100 W)
RMS Power LF Amp200 W (100 W + 100 W)
CoolingConvection
Processor
ControllerDSP 56 bit
AD/DA Converter24 bit/48 kHz
System Presets9 presets (8x HF and Low-Mid corrections and 1x for service use)
LimiterMultiband, RMS/Peak, Thermal
Crossover Frequency LF-HF1800 Hz
Slope LF-HF24 dB/Octave
Input
Signal Input1x XLR fem, Bal.
Signal Output1x XLR male, Bal.
Power Supply400W SMPS with PSU Auto-range (110V~ and 220V~)
Power Socket1x PowerCon In 1x PowerCon Out
Signal Input M2S1 Custom connector
Mechanics
HousingPolypropylen PP
Handles2x back side
FittingsIntegrated hardware with fast lock mechanics
Splay Angles0°- 1,5°- 3°- 4,5° - 6°- 8°- 10°- 12,5°- 15°
Width460 mm (18.1 in)
Height190 mm (7.5 in)
Depth345 mm (13.6 in)
Weight M2M7.6 kg (16.8 lbs)
Weight M2S7.1 kg (15.7 lbs)
