dB Technologies Dva T12 - 1500W 3-Yollu Aktif Line Array
Acoustical data
Frequency Response [-6dB]60 - 19.000 Hz
Max SPLOne Unit: 136 dB
HF3x1 "
Voice Coil HF1.4 "
Directivity100x10 ° Single unit
HornIntegrated CD Horn
MF2x 6.5 "
Type MFNeodymium
Sealed Basket
Phase Plug
Horn Loaded
Voice Coil MF2 "
LF12 "
Type LFNeodymium
Voice Coil LF3 "
Amplifier
Amp TechnologyDigipro® G2
Amp ClassClass D
HF Amp350 W RMS
MF Amp350 W RMS
LF Amp710 W RMS
CoolingConvection
Processor
ControllerDSP 56 bit
AD/DA Converter24 bit/96 kHz
System Presets8, HF/Low-mid correction
LimiterDual Active Limiter
Multiband RMS, Peak, Thermal
Crossover Frequency MF-HF1800 Hz
Slope MF-HF24 dB/Octave
Crossover Frequency LF-MF420 Hz
Slope LF-MF24 dB/Octave
Input
Signal Input1x XLR fem, Bal.
Signal Output1x XLR male, Bal.
NetworkRDnet remote control RJ45 connector IN/OUT
Power Socket1x Powercon In
1x Powercon Out
Voltage Range90 - 240 V
Mechanics
HousingPolypropylen PP
Aluminium reinforced
Housing DesignTrapezoidal 10°

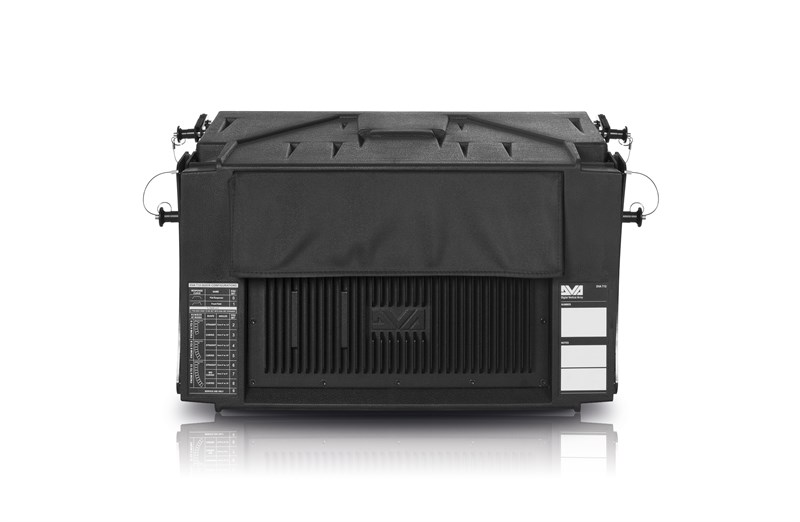

Rain CoverIncluded
Rigging PointsIntegrated rigging hardware
Width580 mm (23.2 in)
Height386 mm (15.44 in)
Depth430 mm (17.2 in)
Weight29,9 kg (63.93 lbs)
