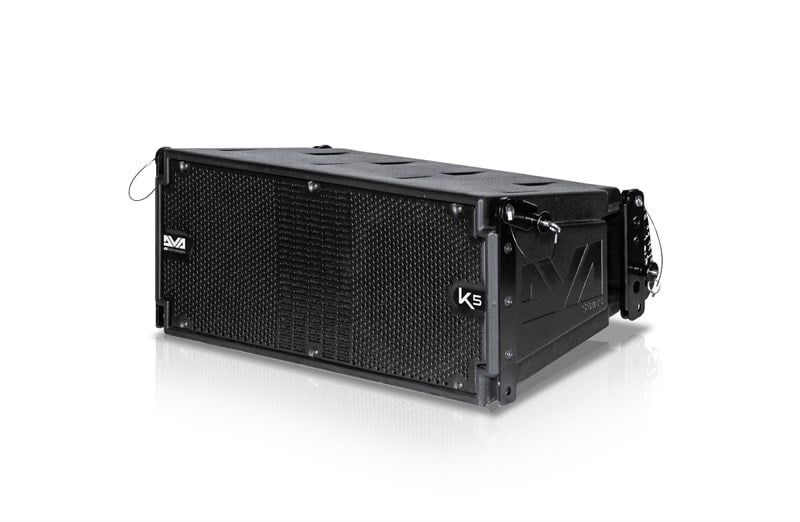

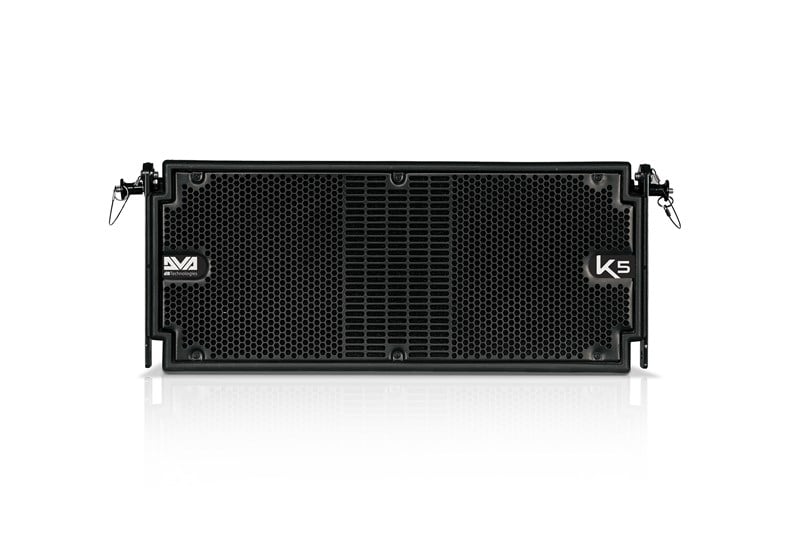

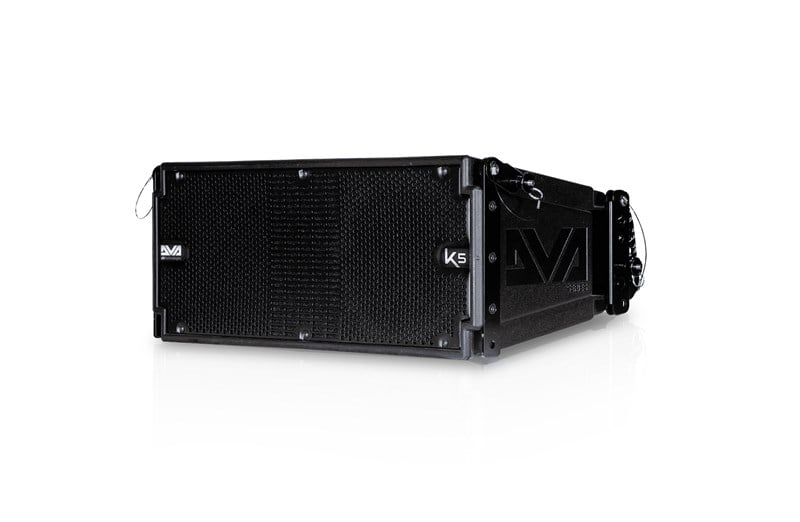

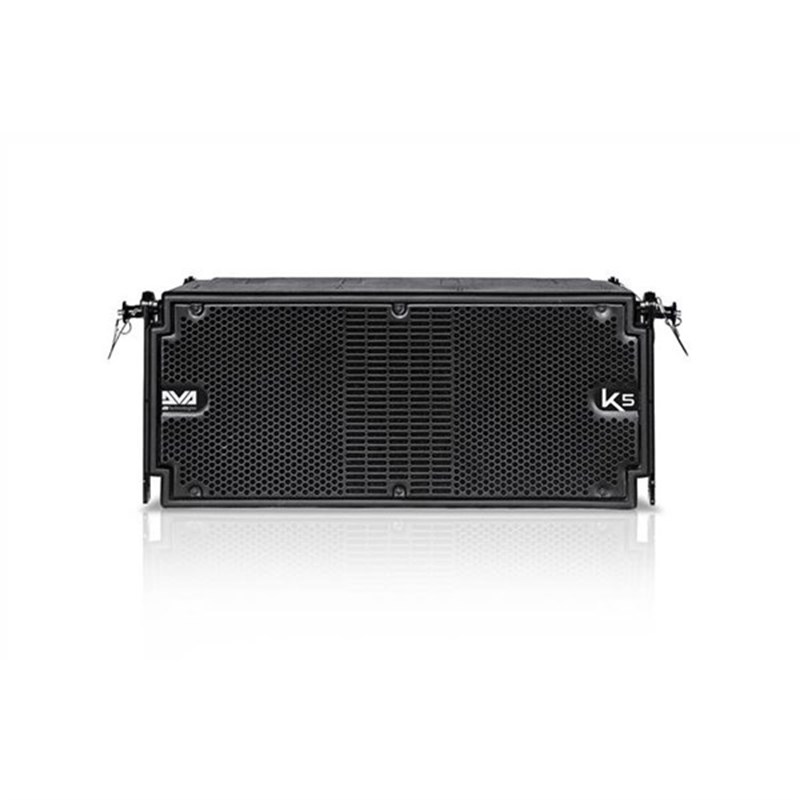

dB Technologies Dva K5 - 1000W Peak 3-Yol Aktif Line Array Modül
Technical Data
Speaker Type3-Way Active Line Array Module
Acoustical data
Frequency Response [+/- 3dB]70 - 19,000 Hz
Max SPLOne Unit: 129 dB
HF2x1 "
Voice Coil HF1.4 "
MF1x 6.5 "
Type MF Neodymium
Voice Coil MF2 "
LF1x8 "
Voice Coil LF2.5 "
Type LFNeodymium
Directivity (HxV)100x15° Single unit
Amplifier
Amp TechnologyDigipro® G3
Amp ClassClass D
RMS Power 500 W
Peak Power 1000 W
CoolingConvection
Power Supply 500 W SMPS with Auto Range PSU
Processor
ControllerDSP 56 Bit
AD/DA Converter 24 bit/48 KHz
Limiter Dual Active Multiband RMS, Peak, Thermal
Crossover Frequency MF-HF1800 Hz
Slope MF-HF24 dB/Octave
Crossover Frequencies LF-MF340 Hz
Slope LF-MF24 dB/Octave

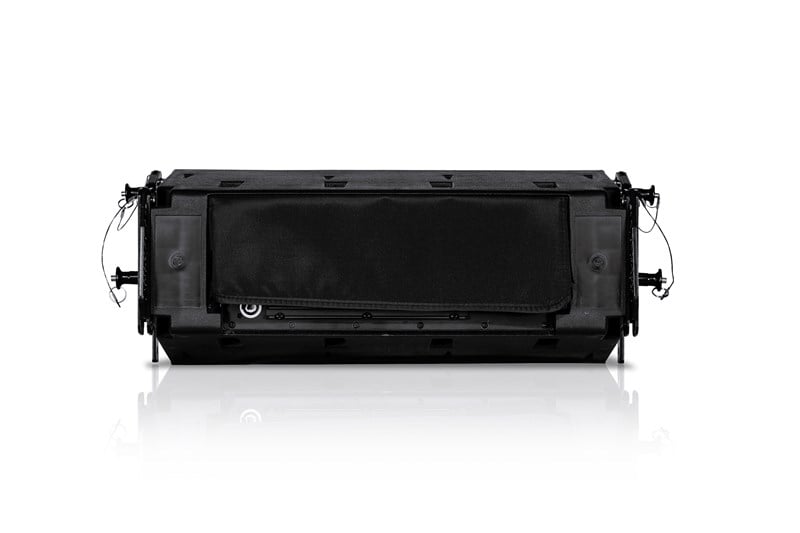

Input
Signal Input1x XLR Balanced
Signal Output1x XLR Balanced
Power Socket1x PowerCON In
1x PowerCON Out
Controls 1 x Input Sensitivity Rotary Switch
1 x DSP Rotary Encoder (LF Correction)
1 x DSP Rotary Encoder (MF-HF Correction)
Mechanics
HousingPolypropylene PP metal reinforced

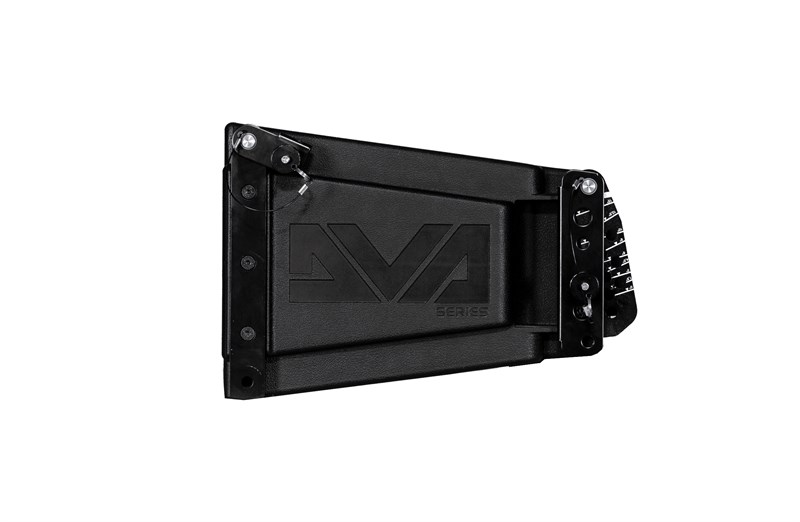

Rigging PointsIntegrated rigging hardware
Width580 mm (22.83 in)
Height240 mm (9.44 in)
Depth327 mm (12.87 in)
Weight14.2 kg (31.3 lbs)
