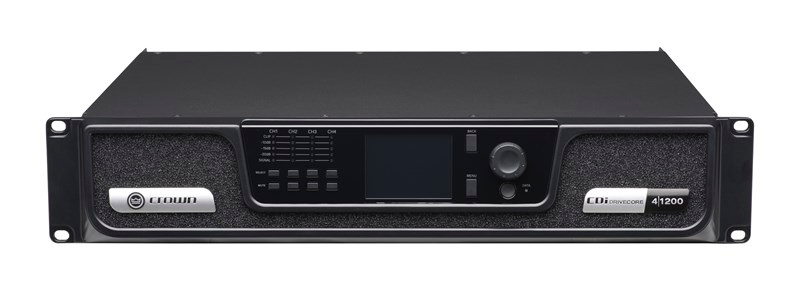

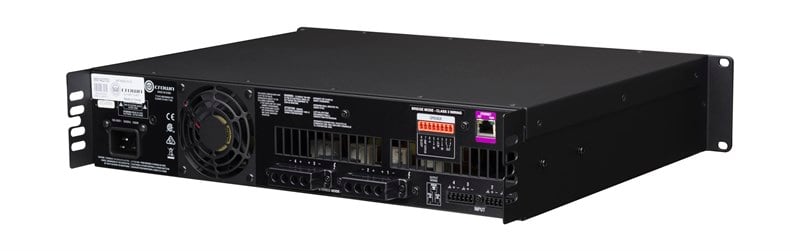

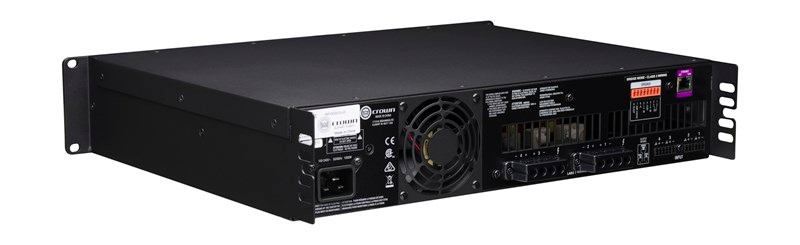

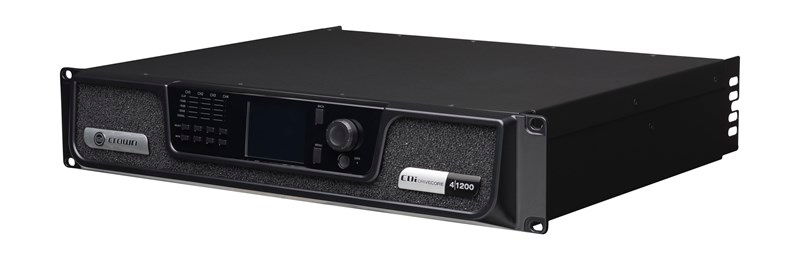

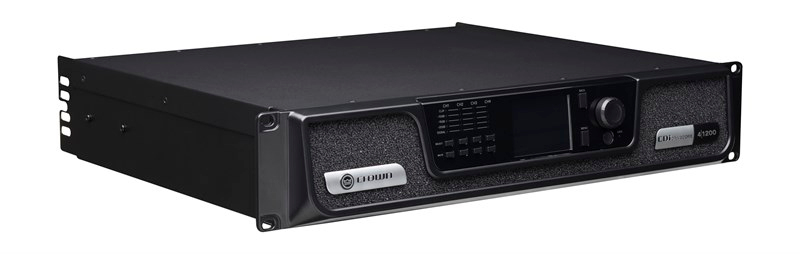

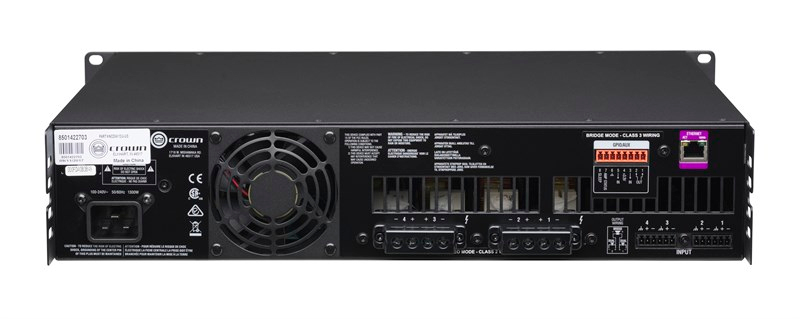

Crown CDi DriveCore 4|1200 Güç Anfisi 4 x 1200 Watt 4 ohm 100V
The CDi DriveCore Series is an evolution in amplification, providing an impressive mix of high-performance; rich feature set, and competitive cost. Using technology derived from our flagship Installed Sound amplifier (Crown DriveCore Install series), the CDi DriveCore 4|1200 offers streamlined functionality to work in almost any large sized installation such as cinema, houses of worship, hotels, cruise lines, and more. Designed for ease-of-use in a variety of applications, the 4|1200 is a 4-channel amp that includes network control/monitoring, high-level DSP, front-panel interface, and support for driving up to 100Vrms speaker loads without requiring a transformer. The entire CDi DriveCore line comes pre-loaded with JBL speaker tunings to help make installations quicker and easier.
Efficient DriveCore technology maximizes sound quality and reliability
Powerful onboard DSP supplies plenty of opportunities for customization
Pre-loaded JBL speaker tunings for trouble-free installation
Easy-to-use front-panel interface provides quick at-a-glance information and easy configuration
Harman's HiQnet Audio Architect software yields wireless control, configuration, and monitoring
Direct Drive 70/100Vrms output accommodates either 70V or 100V for high-impedance applications
GPIO/Aux port allows you to recall presets, mute channels, monitor faults, power on/off the amplifier, and more
Great for any large-sized installation like cinema, houses of worship, hotels, cruise lines, and more
Number of Channels: 4
Watts/Side @ 8 ohms: 1200W
Watts/Side @ 4 ohms: 1200W
Watts/Side @ 2 ohms: 850W
Watts Bridged: 1200W @ 4 ohms
Inputs: 4 x 3-pin Phoenix
Outputs: 2 x Barrier Strip
Cooling System: Continuously Variable Speed Fan, Front-to-rear Airflow
DSP: Yes
Filters: Yes
Frequency Response: 20Hz-20kHz
Rack Spaces: 2U
Height: 3.5"
Depth: 16.01"
Width: 19"
Weight: 20.1 lbs.
Manufacturer Part Number: NCDI4X12-U-US
