Marka : Crane Song
Fiyat : ₺184.077,08(KDV Dahil)
₺34.594,22 'den başlayan taksitlerle

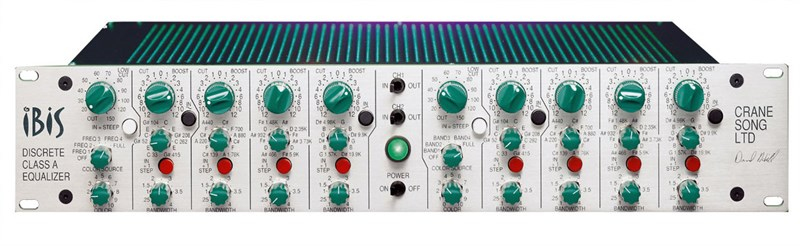

CRANE SONG IBIS Yüksek Seviye Stereo EQ


IBIS ses tonlama işlemini yepyeni müzikal boyutlara taşıyan benzersiz bir analog equalizer'dir.
Üzerindeki dört band'ın herbiri müzikal olarak 32 Hz "C" den 22.35 kHz "F" varan bir aralıkta secilebilir frekans değerlerine sahiptir.
Frekans seçicilerin üzerinde hem nota adları hemde frekans değerleri olduğundan müzisyeler ile mühendisler arasında daha kolay iletişim sağlanmıştır.
Band genişliği kontrolleri de benzer notasyona sahip olup 0.2 ila 4 oktav arasında ayar imkanı tanırlar.

Alçak geçirgen filtre ise 20 Hz ila 150 Hz arasında seçilebilen 12 db veya 24 dB/octave'lık eğimlere sahiptir. Bir çok crane Song ürünü gibi IBIS'te ayrık elemanlı class-A devreleri kullanır.
Sahip olduğu benzersiz "color" fonksiyonu ister tüm audio sinyal yoluna ister belirli frekans bandlarına uygulanabilir.

TEKNİK ÖZELLİKLERİ
Input: Floating, balanced. Maximum input is +25 dBm. The connectors are XLR.
Output: Floating, balanced. Maximum output is +25 dBm. The connectors are XLR.
Input and Output Connections : Pin 2 is Sig + , Pin 3 is Sig- , Pin 1 is GND
Power: 100, 120, 230,240 volt; 50/60 Hz; 55 watts , MDL .6A Fuse for 100V and 120V, MDL .3A Fuse for 230V and 240V
Noise: Measured with the eq set flat and the bandwith controls at max -85dbm
Clipping: +25 dbm
Distortion: With the eq set flat measured at +20 dbm 0.001%
Pilot Lamp: # 327
Weight: 19 lbs. (8.6 kg)
Depth Panel: 12.5 inches (31.75 cm) plus cabling
Panel Height: 2 rack spaces
Frequencies: There are 24 frequencies per band for a total of 96 frequenices with the bands overlapping.

They are stepped on both the mastering and standard units
Boost-Cut: The standard equalizer has a range to plus or minus 12 db on each band.

The Mastering version has a range of plus or minus 6 db
This is stepped 0.5 db steps to 5 db and a 1 db step to 6db on the mastering version.
Bandwith: Bandwidth in octaves is measured at full boost.

The maximun is 4 octaves and a minimun is 0.2 octaves.
