Marka : BSS Audio
Fiyat : ₺0,00(KDV Dahil)

Ethernet Controller with 4 Buttons and Volume Control




BSS Audio EC4BV-B Duvar Tipi Beyaz Ethernet Kontrol Ünitesi

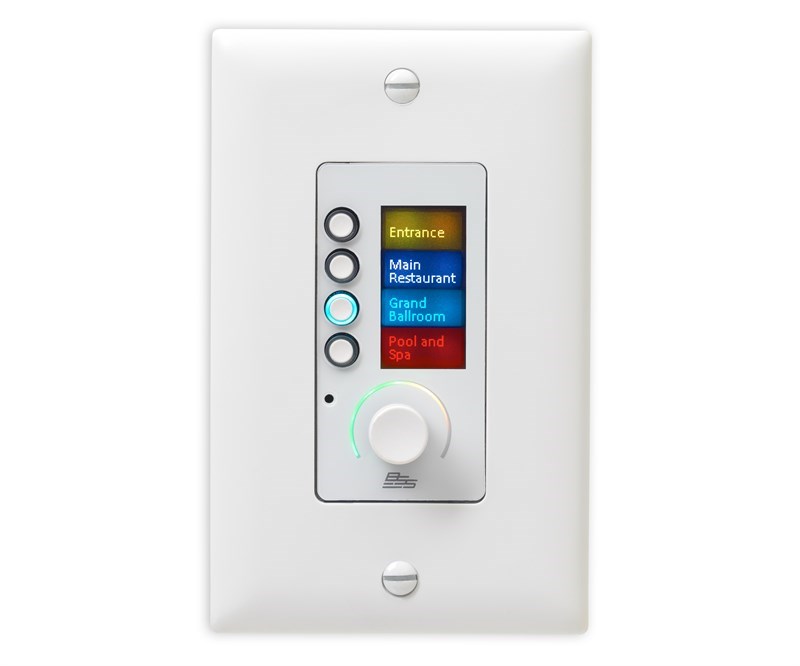

The Soundweb Contrio EC-4BV-B is an Ethernet wall controller for use in Harman HiQnet systems.
The EC-4BV can control and monitor parameters within BSS Audio Soundweb London and other
HiQnet devices, including Crown DCi series amplifiers. The EC-4BV is available in black or white,
and in dual-gang US Decora or dual-gang EU form factor. The EC-4BV contains a single Ethernet
port for configuration, control, monitoring, and power via PoE. The EC-4BV is configured via simple
drag-and-drop operations within the software application HiQnet Audio Architect.
The EC-4BV contains one push/rotary encoder, one encoder ring, eight buttons, and two LCD screens.
The buttons, encoder ring, and LCD screens are multi-color backlit, capable of eight different colors with
adjustable intensity. The push/rotary encoder can be rotated for continuous parameter control (e.g. volume).
The push/rotary encoder can also be pressed for binary parameter control (e.g. mute) or preset recall.
The encoder ring can display a bouncing audio meter. When the push/rotary encoder is rotated, the encoder
ring can temporarily display a volume setting. When the push/rotary encoder is pressed, the encoder
ring can temporarily display a binary parameter setting (e.g. red/green for muted/unmuted status).
The eight buttons can be pressed for binary parameter control (e.g. mute), preset recall, or source selection.
The two LCD screens each have a screen resolution of 64x128 pixels, and can each display custom text.
The EC-4BV supports ‘sleep’ functionality. After a specified amount of time with no user input, the EC-4BV
can turn off all LEDs. This is useful to avoid distraction in a dimly lit environment. Any user interaction will ‘wake up’ the controller.
The EC-4BV can be remotely locked and unlocked via other control systems. The EC-4BV can be locally unlocked
via a four-digit PIN entry on the buttons. The EC-4BV supports multiple modes of operation. This allows the
push/rotary encoder, encoder ring, and certain buttons to be reassigned dynamically to different parameters based
on which buttons are selected.





Details

Ethernet Wall Controller
Compatible with BSS Audio Soundweb London, Crown DCi, and other HiQnet devices
Available in Black or White
Available in US Decora or EU Version
Dual-Gang Size
PoE (Power Over Ethernet)
Configured within Audio Architect via Drag-and-Drop
1 Programmable Push/Rotary Encoder
1 Programmable Encoder Ring (Multicolored)
4 Programmable Buttons (Multicolored)
1 Programmable 64x128 Pixel LCDs (Multicolored)
Sleep Function
Security: Remote Lock/Unlock and Local Unlock via PIN Entry
Multiple Modes of Operation

Kullanım Kılavuzu
