Fiyat : ₺0,00(KDV Dahil)

Wireless In-Ear Monitor System

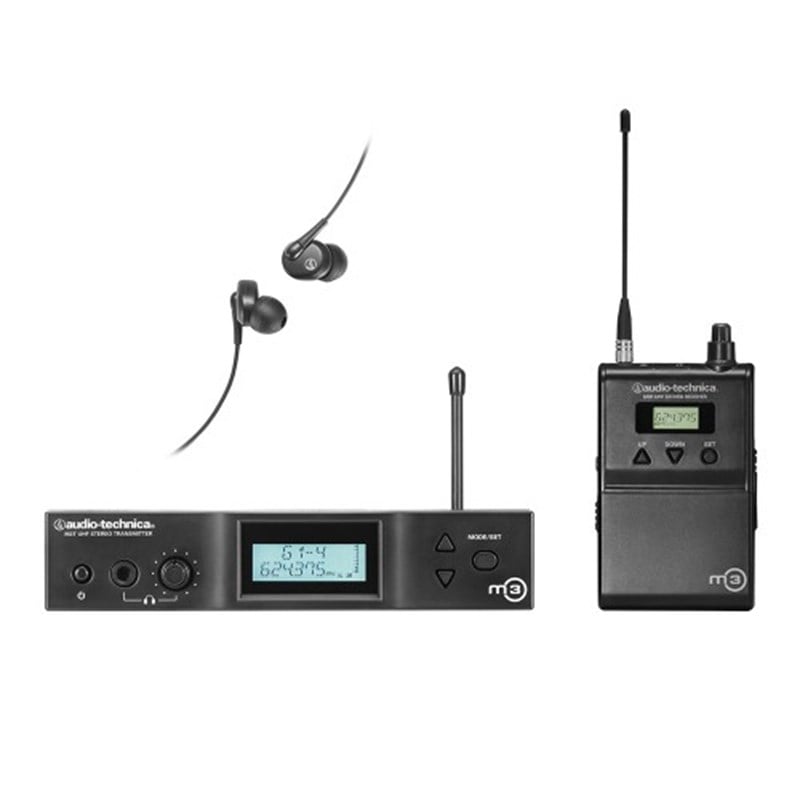

Audio-Technica M3 Kablosuz Kulakiçi Monitör Sistemi



Audio-Technica's advanced M3 IEM system offers a full range of professional in-ear monitoring features, with a choice of 1321 UHF channels and easy-to-read LCD information displays on both transmitter and receiver for setting preferences. The stereo monitor system is equipped with Audio-Technica's versatile Personal Mix Control, which gives allows volume and mix control of two independent signals on stage, via controls on the M3R stereo body-pack receiver. While up to 16 complete M3 systems may be used simultaneously, any number of M3R stereo receivers can operate on the same frequency with a single M3T stereo transmitter. The M3T Stereo Transmitter is equipped with two XLR/¼" combo input connectors into which users can connect line-level inputs (from a mixing console, for example). The M3T also offers a headphone output that allows you to monitor transmitter input signals directly.


High-fidelity sound with clean, articulate mix allows performers to hear themselves clearly at lower volume
1321 selectable UHF channels with automatic frequency scanning
Up to 16 simultaneous systems per frequency band
Three receiver modes: Personal Mix, stereo, and mono
Personal Mix Control allows volume and mix control of two independent signals at the receiver
LCD information display offers step-through menus for setting preferences
XLR loop output (true pass-through) connects signal to mixing console, additional IEM system or recording device with no signal degradation
Adjustable squelch eliminates annoying static
Pilot tone protects against RF interference when transmitter is turned off
Multi-level limiter (defeatable) helps protect hearing from sudden peaks
Portable system is quick to load and set up
Reduces on-stage audio clutter for better overall mix & less feedback
Use any number of Stereo Receivers (with individual mixes) on the same frequency
Audio-Technica earphones with proprietary dynamic drivers offer full frequency response and outstanding isolation
Personal fit with 3 sizes of rubber eartips plus an ear-conforming foam tip
Selectable auxiliary input offers connection point for ambient microphone, click track, or other mic- or line-level input



Overall System
Operating Frequencies: Band L: 575.000 to 608.000 MHz, 1321 frequencies
Band M: 614.000 to 647.000 MHz, 1321 frequencies
Bande H1: 754.000 to 787.000 MHz, 1321 (nombre de fréquences)
Minimum Frequency Step: 25 kHz
Modulation Mode: FM stereo
Maximum Deviation: ±40 kHz
Simultaneous Use: 16 channels per band (maximum recommended)
Frequency Response: 60 Hz to 13 kHz (+/- 3 dB)
Operating Range: 100 m (300'), typical
(Open range environment with no interfering signals.)
Dynamic Range: 90 dB (typical), A-weighted
Total Harmonic Distortion: <1% at (1 kHz, ±20 kHz Deviation)
Operating Temperature Range: -5° C (23° F) to +50° C (122° F)

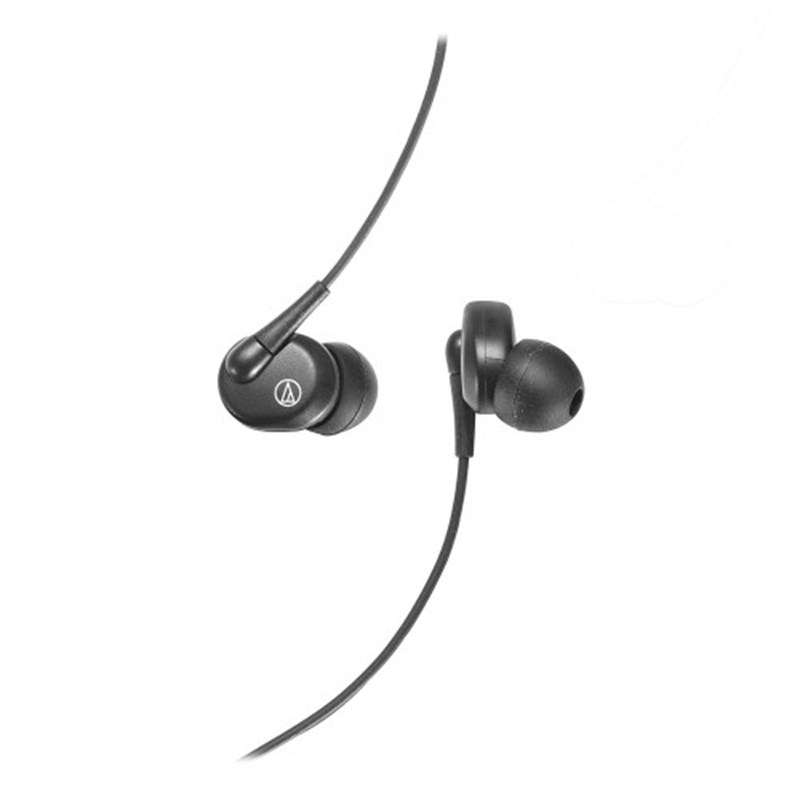

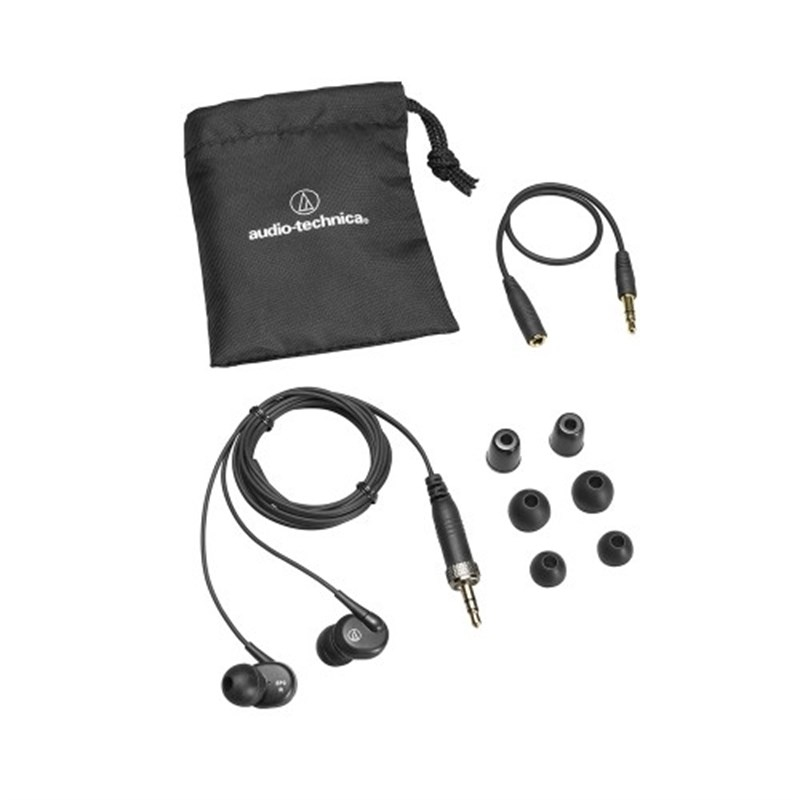

EP3 In-ear dynamic Headphones - In-ear dynamic headphones offer high-fidelity sound and excellent isolation. Including hard case, extension cable, ear tip L/M/S, ear foam and soft pouch.

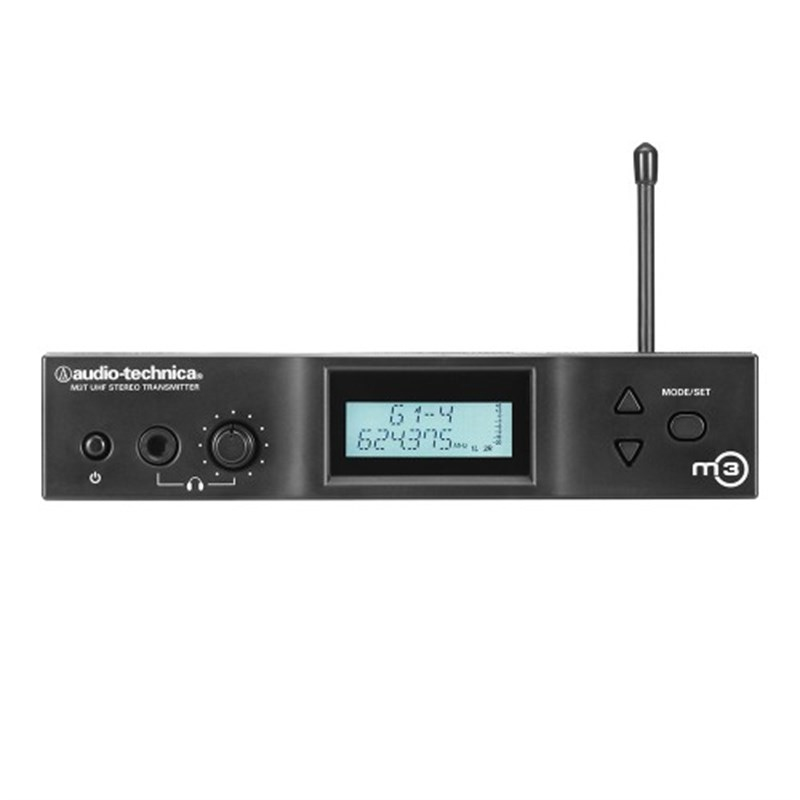

M3T Stereo Transmitter - Wireless UHF transmitter (frequency-agile) offers LCD display and 1321 user-selectable frequencies

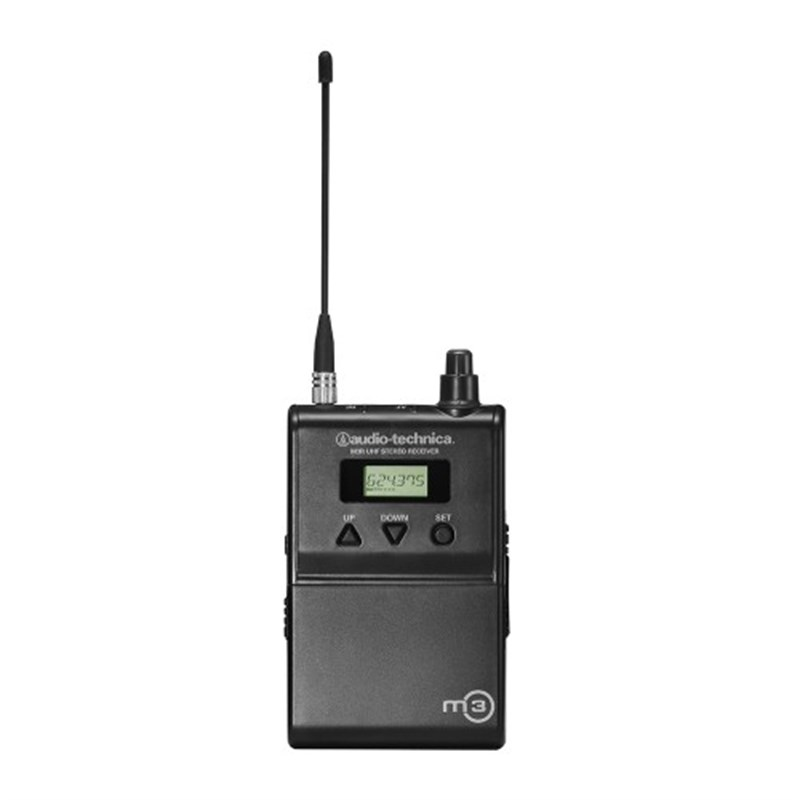

M3R Stereo Receiver - Personal Mix Control in a lightweight body-pack with backlit LCD display

Receiver
Receiving System: Double conversion superheterodyne
Sensitivity: 20 dBuV (at 60 dB S/N ratio, 50 ohms termination)
Headphone Output: 3.5 mm TRS stereo phone jack, 65 mW (at 32 ohms)
Antenna Input: SMA-type, 50 ohms
Battery Type: 2 x 1.5V AA (not included)
Battery Current/Life: 8 hours (alkaline)
Depending on battery type and use pattern
Dimensions: 70.0 mm (2.76") W x 25.0 mm (0.98") D x 110.0 mm (4.33") H
Weight: 133g, without batteries

Transmitter
Power Output: 10 mW/50 mW (switchable), 50 ohms Limited to 10 mW within 863 MHz to 865 MHz
Following national regulations
Spurious Emissions: Following national regulations

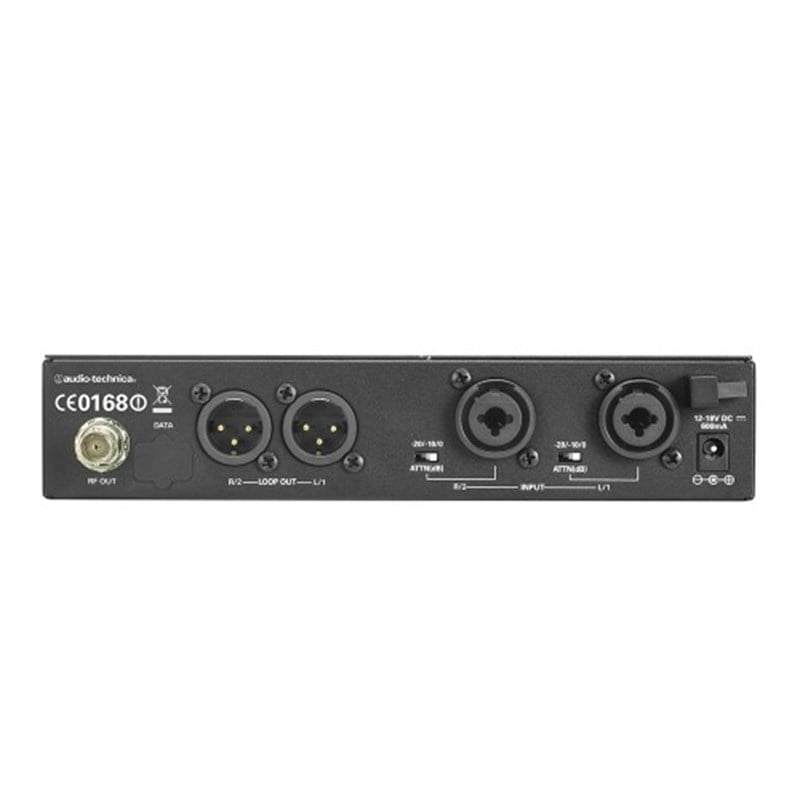

Input Connection: XLRF-type/6.3 mm stereo (1/4") combination connector Pin 1 and Sleeve: Ground Pin 2 and Tip: Hot Pin 3 and Ring: Cold
Maximum Input Level: XLRF-type/6.3 mm stereo, (1/4") balanced: +26 dBu 6.3 mm (1/4") mono, unbalanced: +26 dBu
Loop Output Connection: XLRM-type connector Pin 1: Ground Pin 2: Hot Pin 3: Cold
Power Requirement: 12-18V DC, 600 mA
Headphone Output Connector: 6.3 mm (1/4") TRS stereo phone jack
Headphone Output Power: 120 mW at 32 ohms
Antenna Connector: BNC, 50 ohms
Dimensions: 210.0 mm (8.30") W x 132.0 mm (5.20") D x 44.0 mm (1.70") H
Net Weight: 930g, without accessories
