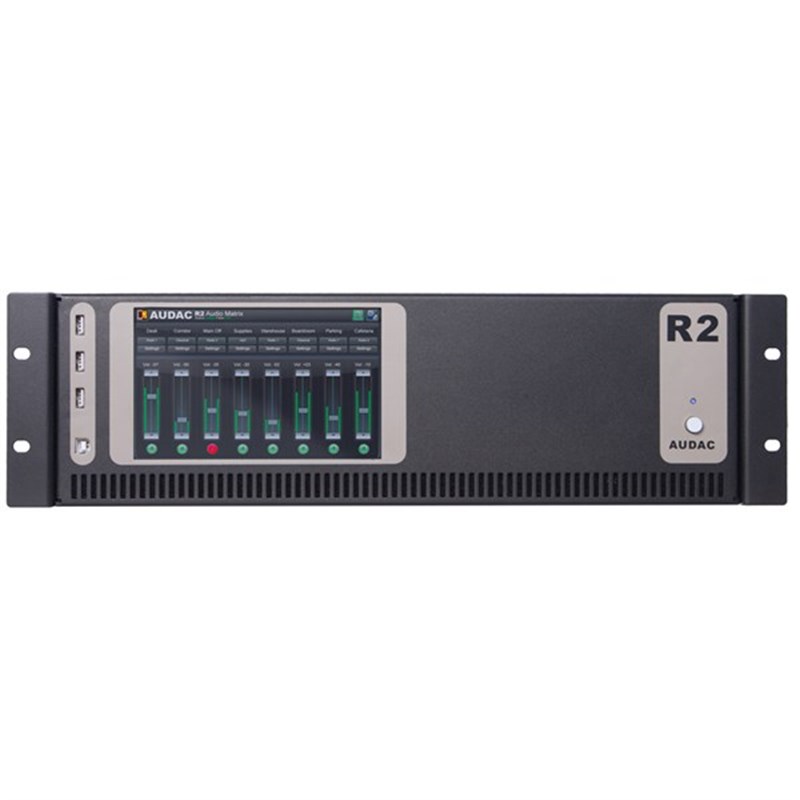

Audac R2 - 8x8 Dijital Audio Matrix
Control RS-232
TCP/IP (RJ45)
Wall panel (RS-485)
Audac Touch™
Web (Flash)
Web (HTML5)
Power Supply 100 ~ 240 V AC / 50 ~ 60 Hz
Inputs Unbalanced Stereo Type 8 x Stereo Unbalanced Line
Connector RCA
Balanced Priority Audio Connector 3-pin Euro Terminal Block (Pitch - 5.08 mm)
Type 2 x Balanced Priority Audio Input (Line)
Peripheral Interface Connector RJ45
Type 10 x Peripheral Interface Input
Priority Contact Connector 2-pin Euro Terminal Block (Pitch - 5.08 mm)
Type 2 x Priority Contact Input
Outputs Line Connector Dual RCA
Type 8 x Line output
Power Amplifier Connector 4-pin Euro Terminal Block (Pitch - 5.08 mm)
Type 8 x Power Amplifier outputs (option)
Dimensions 482 x 132 x 350 mm (W x H x D)
Weight 8.4 kg
Mounting 19” Rack
Unit height 3 HE
Optional expansion kit OPT2 (Fiber interconnection Interface)
POW2 (Internal Power Amp 16 x 60 W)
Peripheral Interfaces DW5065 All-In-One Wall Panel
DW3020/4020 Wall control panel
APM1xx Digital Paging Console
