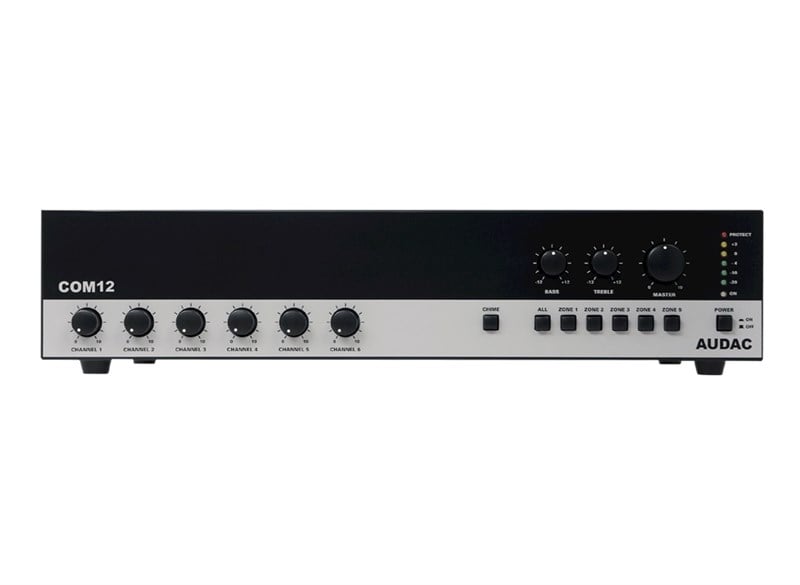

Audac COM12MK2 6-Giriş 120W 100V 5-Bölge Amfili Mikser
RMS Power 120 W
Signal / Noise > 90 dB
THD+N (@ 1 kHz) < 0.5%
Crosstalk (@ 1 kHz) > 70 dB
Technology Class A/B
Common mode rejection ratio 70 dB
Protection DC Short circuit
Over heating
Over load
Signal limiting
Cooling Convection cooled
Operating temperature 0° ~ 40° @ 95% Humidity
Frequency Response (± 3 dB) 20 Hz - 20 kHz
Power Supply Transformer
Source 230 ~ 240 V AC / 50 ~ 60 Hz
Inputs Other Remote mic (Priority mic + chime)
Tele-paging (Priority line)
Priority mute contact
Outputs Connector 2-pin Euro Terminal Block (Pitch - 5.08 mm)
10-pin Euro Terminal Block (Pitch - 5.08 mm)
Voltage / Impedance 100 V / 4 Ω
Inputs Balanced Microphone 1 - 4 Type 4 x Balanced Mic./Line (-6 dB / -50 dB)
Connector 2 x XLR/Jack Combo & 2 x XLR
Other 4 x 15 V DC Phantom & 2 x Priority
Balanced Microphone 5 Type 1 x Balanced Mic./Line (-6 dB / -50 dB)
Connector 6.3 mm Jack
Unbalanced Stereo Type 1 x Stereo Unbalanced Line (+14 dB / -30 dB)
Connector RCA
Dimensions 420 x 88 x 320 mm (W x H x D)
Weight 9.700 kg
Mounting 19” / 2 HE or tabletop
Construction Steel
Colours Black
Accessories Included 19” Rackmount adapter
