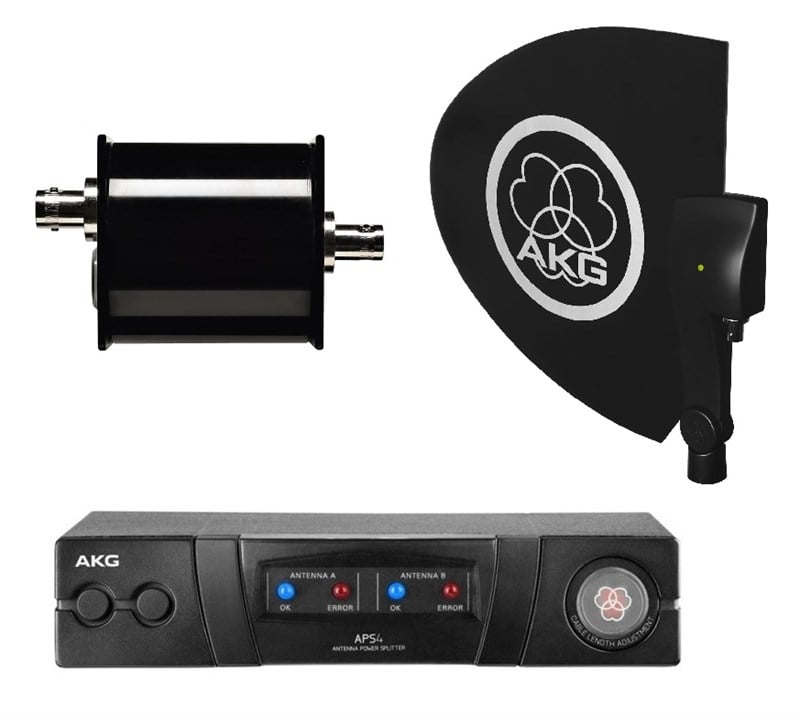

Akg Mikrofon Anten Seti (SRA2 EW, AB4000 EW , APS4 )
Set İçeriği
APS4 1 adet
AB4000 EW 1 adet
SRA2 EW 1 adet
Akg SRA2 EW Passive Directional Wide-Band UHF Antenna
General Specifications
Switching bandwidth (from/to)-470 to 952 MHz
Antenna gain-4.5 dBi
Covering angle-70 Grad
Dimensions
Length240 mm
Height230 mm
Width26 mm
Net Weight250 g
Antenna Output
Amount-1
Type-BNC
Gender-Female
Note-RF output (50 Ohms)
Recommended load impedance-50 Ohms
Design
Body-plastic
Finish-black
Akg AB4000 EW In-line antenna signal amplifier, RF input (50 Ohms), 17dB Amplification
General Specifications
Switching bandwidth (from/to)470 to 952 MHz
Operating temperature range-10 to 50 Celsius
Dimensions
Length-110 mm
Height-50 mm
Width-50 mm
Net Weight-150 g
Antenna Output
Amount-1
Type-BNC
Gender-Female
Note-RF output (50 Ohms)
Recommendednload impedance-50 Ohms
Design
Finish-black
Body-metal
Akg APS4 Antenna power splitter with universal power supply
Compatibility DMS800, DMS700, WMS4500, WMS470, and WMS420 Wireless Receivers
Switching Bandwidth From 470 to 952 MHz
Attenuation 0, 2, 4, 6, 8, 10, 12, 14 dB switchable
RF Input 2x BNC sockets, 50 ohms
RF Output 10x BNC sockets, 50 ohms
Power Requirement 12 VDC / 5 A
Rack Size 1/2 rack size 19" (48 cm)
Material of Construction Metal
Dimensions 7.8 x 7.5 x 1.7" (200 x 190 x 44 mm)
Weight 2.2 lb (970 g)
Packaging Info
Package Weight 6.4 lb
Box Dimensions (LxWxH) 17 x 13.2 x 3.4"
